Alarm.com ADC-VC728PF 4MP PoE Varifocal Bullet Camera
$294.30
Alarm.com compatible subscription required.
Concentrate 4MP detail where it matters most. The Alarm.com ADC-VC728PF pairs HDR/WDR video, a motorized 3.2-9.8 mm varifocal lens, 95-foot IR, smart analytics, Perimeter Guard and flexible recording with PoE or 12 VDC power in an IP66 bullet enclosure.
- 3X Motorized Zoom for the View You Need
- Sharp 2K Detail with 95-Foot Night Vision
- Single-Cable PoE Power and Video
- Smart Analytics for People and Business Activity
- Weather-Ready Bullet Camera for Longer Sightlines
Storage & Access
24/7 On-Site Storage
Cloud Storage
Up to 1.5TB MicroSD
Deterrence Features
Audio Deterrence
Deterrence Lights
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 116° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
2,688 horizontal pixels at 34°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description

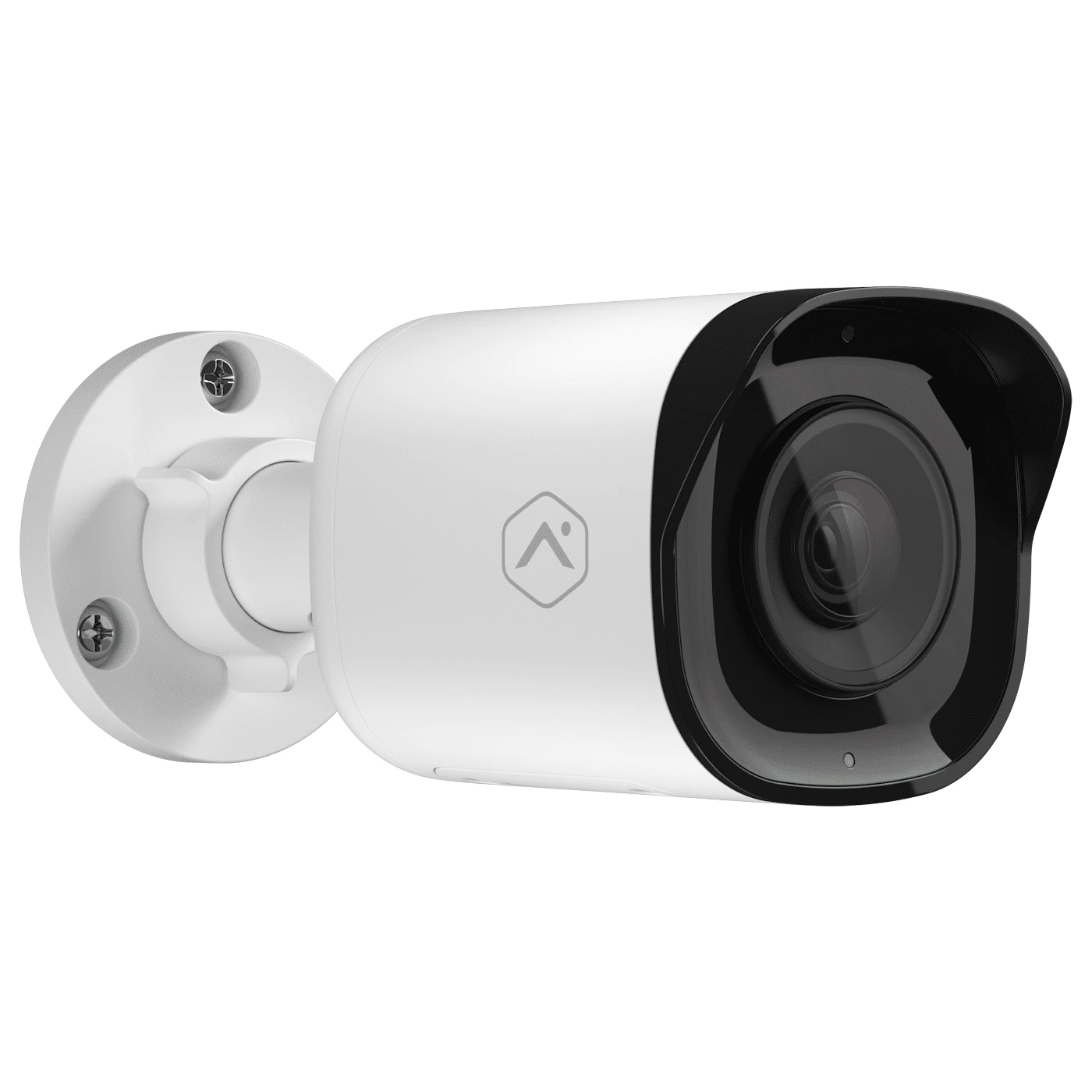

The Alarm.com ADC-VC728PF is a 4MP bullet camera for locations that need a clearly directed view and more reach than a fixed wide-angle lens can provide. Its adjustable ball-joint mount and IP66 housing make it a practical choice for driveways, detached buildings, parking areas, loading approaches, fenced boundaries and other indoor or outdoor locations exposed to dust and Texas weather.

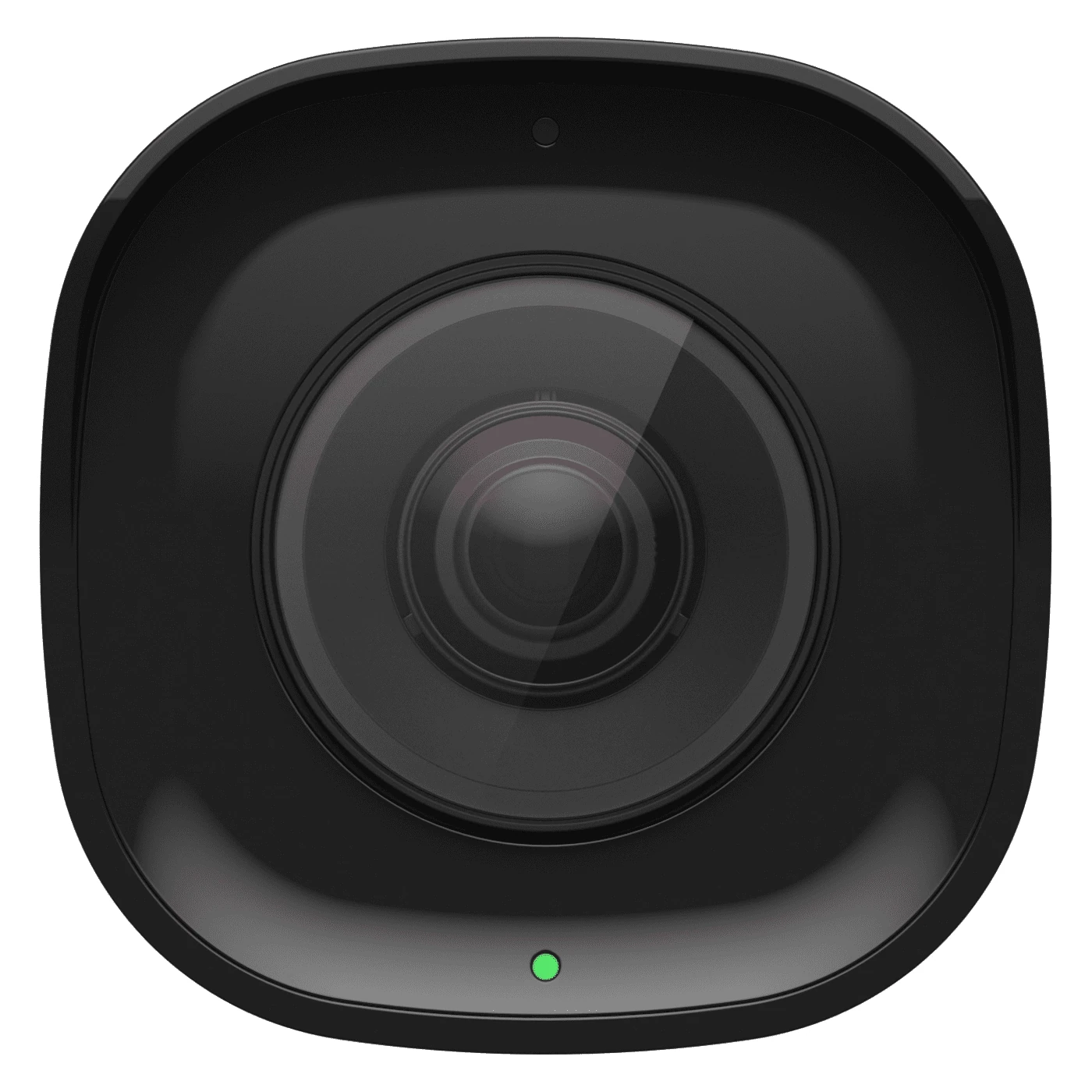

A motorized 3.2-9.8 mm P-iris lens lets the installer remotely shift from a broad 116-degree view to a focused 34-degree view without relying on digital enlargement. At a home, that can mean tightening the frame on a long driveway or gate; in commercial video surveillance, it can mean concentrating 4MP detail on a parking entrance, loading area or controlled access point instead of wasting pixels on nearby walls or sky.
HDR and WDR improve visibility across mixed lighting, while integrated IR provides grayscale night viewing to approximately 95 feet. Video Analytics can identify people, vehicles and animals, and Business Activity Analytics can add occupancy, people-counting, queue, crowd and heat-map insights with a compatible Alarm.com plan. Perimeter Guard can trigger the camera’s buzzer and flash its status LED when a rule detects unwanted activity.

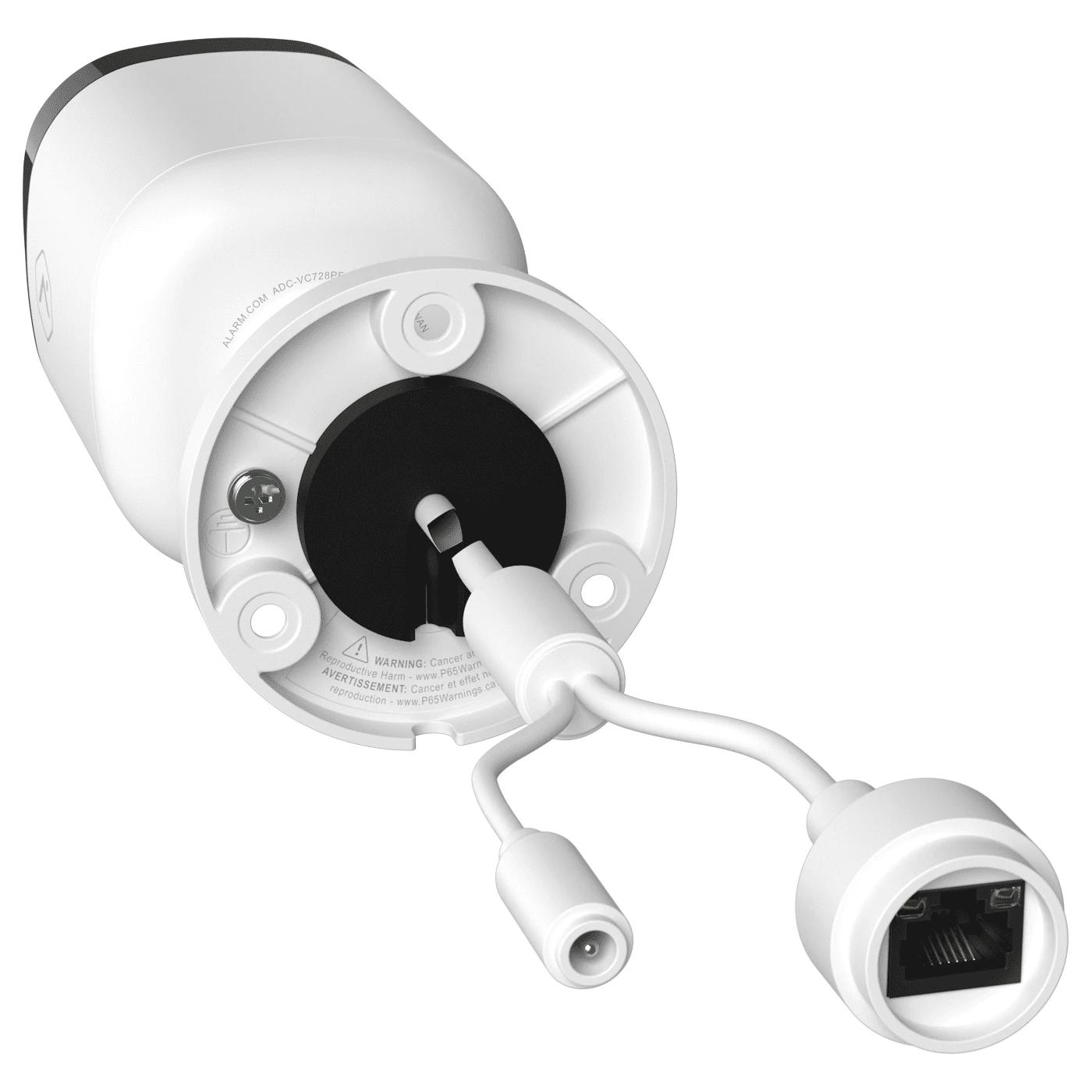

Customers can review cloud clips and encrypted onboard microSD footage through the Alarm.com app or website, and a compatible Stream Video Recorder can provide continuous recording. The 10/100 Ethernet port supports 802.3af PoE for a clean single-cable network and power connection, while regulated 12 VDC is available when the installation calls for separate power.
Key Features
- 4MP progressive-scan sensor with up to 2688 x 1520 resolution
- 4MP recording supported with a compatible Commercial SVR
- HDR and WDR image processing for mixed-light scenes
- Motorized 3.2-9.8 mm, F1.8-F3.3 varifocal lens
- Adjustable field of view from 116 degrees wide to 34 degrees telephoto
- P-iris, remote focal-length control, manual focus adjustment and autofocus
- Infrared night vision to approximately 95 feet
- Smart object detection for people, vehicles and animals
- Alarm.com Video Analytics and Business Activity Analytics
- Perimeter Guard buzzer and flashing status-LED alerts with supported firmware and service
- Cloud clip, encrypted microSD and compatible SVR recording
- Compatible microSD storage up to 1.5 TB with supported firmware
- 10/100 Mbps RJ-45 Ethernet connection
- 802.3af PoE or regulated 12 VDC power
- IP66 weather-resistant and dust-tight enclosure
- Operating range from -22 degrees F to 122 degrees F
- Approximately 6.8 x 3.0 x 3.0 inches
- Approximate product weight of 1.19 pounds
- Includes mounting hardware, Torx wrench and water-resistant cap
- FCC, IC, C-Tick, CE Class B, UL, RoHS, WEEE and NDAA Section 889 compliance
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2K
- Field of View:
- 116° – 34°
- HDR:
- Yes
- WDR:
- WDR
- Sensor:
- 1/2.7"
- Lens Type:
- Motorized
- Optical Zoom:
- 3X
- Night Vision:
- IR
- Night Viewing Range:
- 95ft
- Smart Features:
- Business Activity Analytics, Perimeter Guard, Smart Object Detection, Video Analytics
- Deterrence Features:
- Audio, Deterrence Lights
- Max SD Storage:
- 1.5TB
- Connection Type:
- Wired
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP66
- Weight:
- 1.19 lbs
- Dimensions:
- 6.8 × 3.0 × 3.0 in
