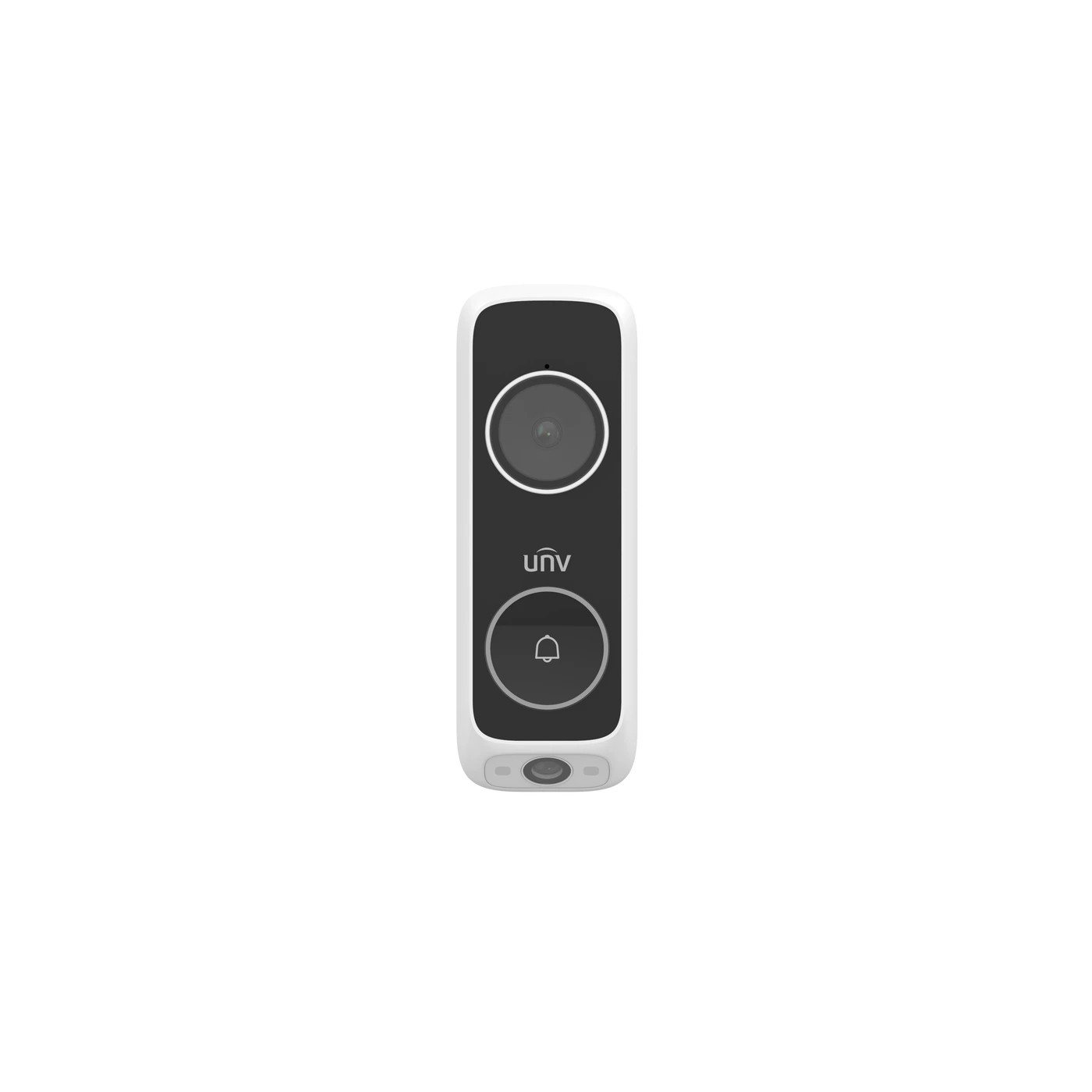

Uniview ED-525B-WB Dual-Lens Wired Wi-Fi Video Doorbell
$285.39
See visitors and packages in separate 3MP and 2MP views, with wired AC power, dual-band Wi-Fi 6 and built-in 8 GB recording storage.
- Separate Visitor and Package Views
- Built-In 8 GB Recording Storage
- Dual-Band Wi-Fi 6
- Uniview NVR Integration
- Wired AC Power
Connection & Power
2.4 & 5 GHz, Wi-Fi 6 (802.11ax) Signal
AC Powered
Storage & Access
24/7 On-Site Storage
Access Anywhere
Field of View
Doorbell coverage depends on both width and height. The overlays compare this product with a representative industry average and the widest doorbell in the Eco Smart catalog.
- This Product
- 116° H x 116° V
- Average
- 140° H x 115° V
- Max
- 165° H x 150° V
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
Centered distance markers show how far this doorbell is rated to view from the porch.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description
The ED-525B-WB uses a 3MP visitor camera and a 2MP downward-facing camera to keep both faces and the doorstep in view. Motion, human and package alerts can be sent to the app and a Uniview NVR. The built-in microphone and speaker let you answer visitors through UNV-Link, while dual-band Wi-Fi 6 connects the doorbell to the network.
Built-in 8 GB eMMC storage provides local recording, and supported Uniview NVR connections offer live view, playback and alarm search. Infrared illumination reaches 5 m and white light reaches 2 m. The enclosure is IP65-rated and supports either up to three wireless chimes or one mechanical chime.
This is a wired AC-powered doorbell, not a battery-operated model. For wireless-chime configurations, the specified supply is 12 V AC/12 VA or 24 V AC/12 VA; mechanical-chime configurations require 24 V AC/26 VA. The 240 mAh rechargeable battery belongs to the mechanical-chime power kit. Follow the installation guide: operating the button without the required mechanical chime connected can damage the device.
Key Features
- Dual cameras: 3MP main view and 2MP doorstep view; not a single 5MP stream
- Horizontal FOV: 116 degrees main; 96.8 degrees sub
- Built-in 8 GB eMMC storage; no microSD slot specified
- Uniview NVR integration: live view, playback and alarm search; private integration protocol
- Motion, human and package alerts to app and NVR
- Built-in microphone and speaker; UNV-Link visitor calls
- Wi-Fi 6 (802.11 b/g/n/ax), 2.4 and 5 GHz; Bluetooth-assisted setup
- IR range 5 m; white-light range 2 m
- Wireless-chime installation: 12 V AC/12 VA or 24 V AC/12 VA
- Mechanical-chime installation: 24 V AC/26 VA; 240 mAh battery is for the chime power kit
- Up to three wireless chimes or one mechanical chime; Sub-1GHz chime connection
- H.265 and H.264; true HDR and DWDR; IP65
Full Specifications
- Field of View:
- 116° (Main, H), 96.8° (Sub, H)
- HDR:
- Yes
- WDR:
- 58 dB (Sub), 80 dB (Main), DWDR
- Night Vision:
- Dual Light
- Night Viewing Range:
- 16ft (IR); 7ft (White Light)
- Smart Features:
- Human Body Detection, Motion Detection, Package Detection
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Video Encoding Format:
- H.265, H.264
- Storage Type:
- Built-in eMMC, NVR
- Connection Type:
- Wireless
- Wi-Fi Connection Type:
- 2.4 & 5 GHz, Wi-Fi 6 (802.11ax)
- Wireless Connection Type:
- Wi-Fi
- Powered by:
- AC
- Waterproof Rating:
- IP65
- Weight:
- 0.313 lbs
- Dimensions:
- 1.10 × 2.20 × 6.16 in
