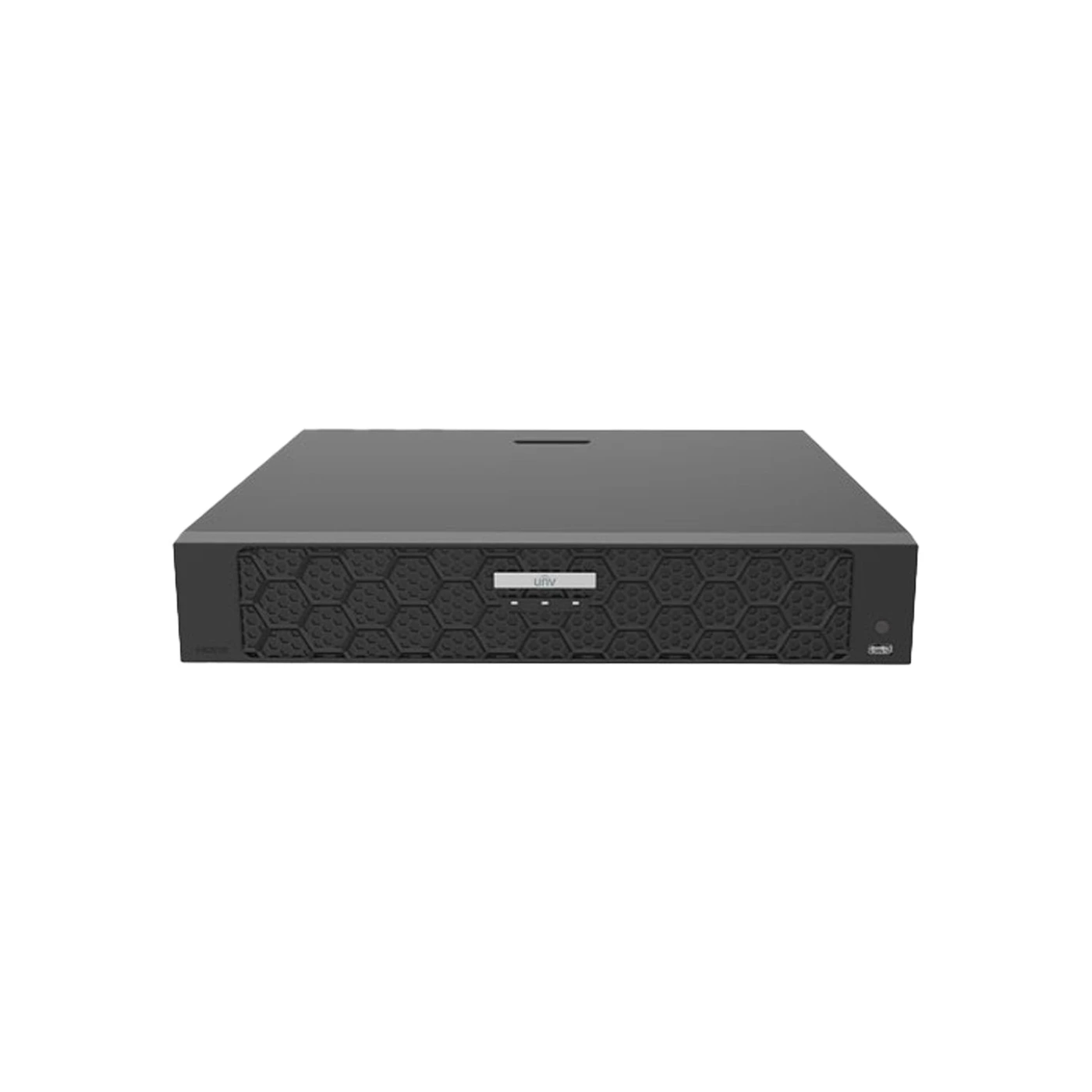

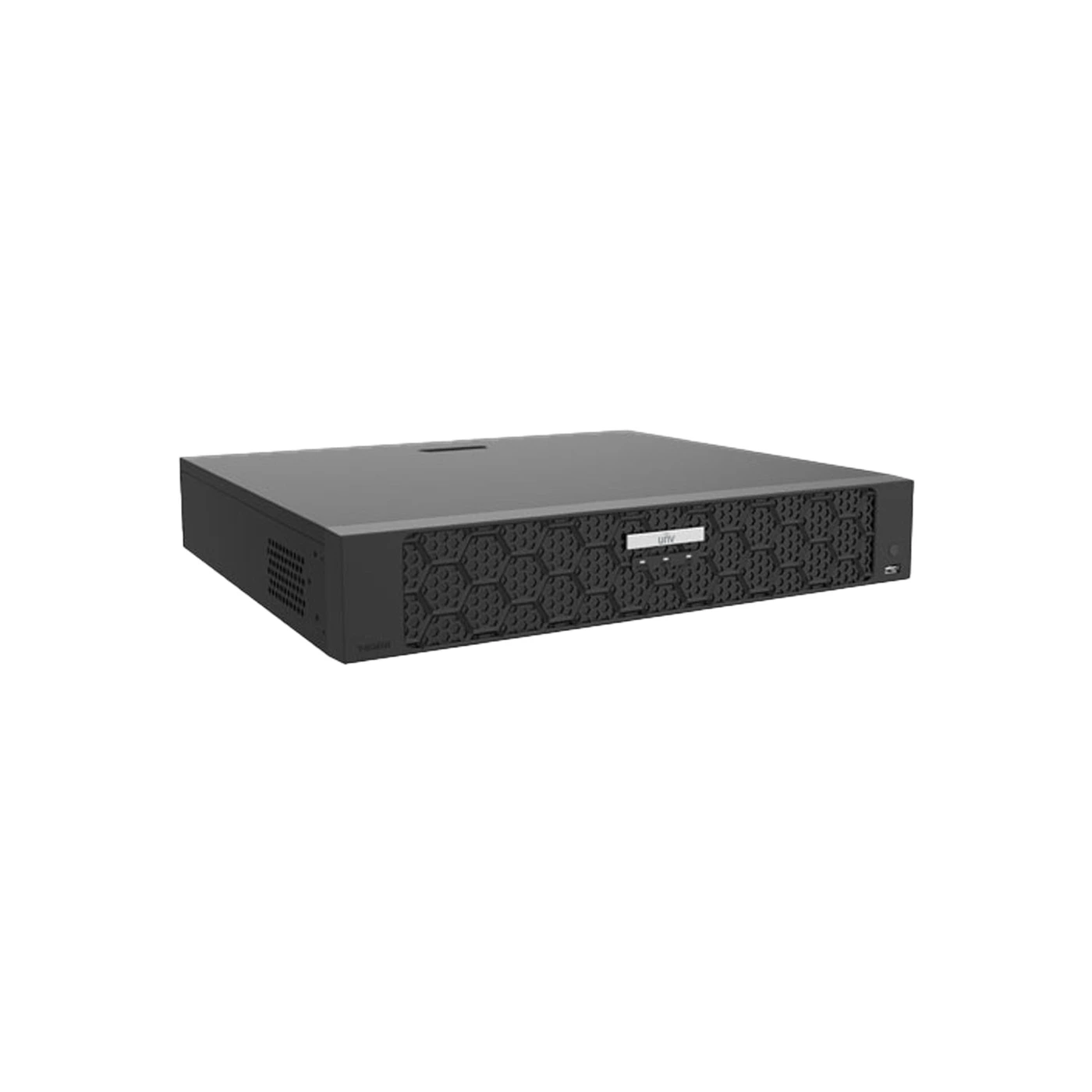

Uniview NVR504-32B-P16 32-Channel 16-PoE 4-Bay NVR
$1,085.69
Expand to 32 recording channels and four SATA bays, with RAID 1/5 support and 16 built-in PoE connections.
- 32 IP recording channels
- Four bays with RAID 1/5
- 16 built-in PoE ports
- Independent HDMI and VGA output
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Description
The NVR504-32B-P16 combines 32 camera inputs with four drive bays for installations needing more recording storage. Sixteen PoE ports serve directly attached cameras, with a 150 W shared power budget.
Storage can use RAID 1 or RAID 5, while separate HDMI and VGA outputs support local monitoring. The recorder accepts video up to 16 MP and offers 16-channel synchronous playback. Additional cameras beyond the PoE ports connect over the wider network.
Key Features
- 320 Mbps incoming and 160 Mbps outgoing bandwidth
- 4 SATA interfaces; up to 24 TB per HDD subject to temperature and drive size; ambient must not exceed 40 C for that capacity
- 16 IEEE 802.3af/at PoE ports; 30 W maximum per port, 150 W shared total
- Recording up to 16 MP; 16-channel synchronous playback
- Ultra 265/H.265 decoding: 4 x 4K at 30 fps, 16 x 1080p at 30 fps, or 32 x 960p at 25 fps
- 1 HDMI up to 4K/30 Hz; 1 VGA; independent outputs
- 1 Gigabit uplink; 16 alarm inputs and 4 outputs
- 100-240 V AC; consumption without HDD at most 20 W
Full Specifications
Hard-drive configuration is awaiting confirmation. Listed storage capacity is the supported maximum, not a promise of included drives or usable RAID capacity.
