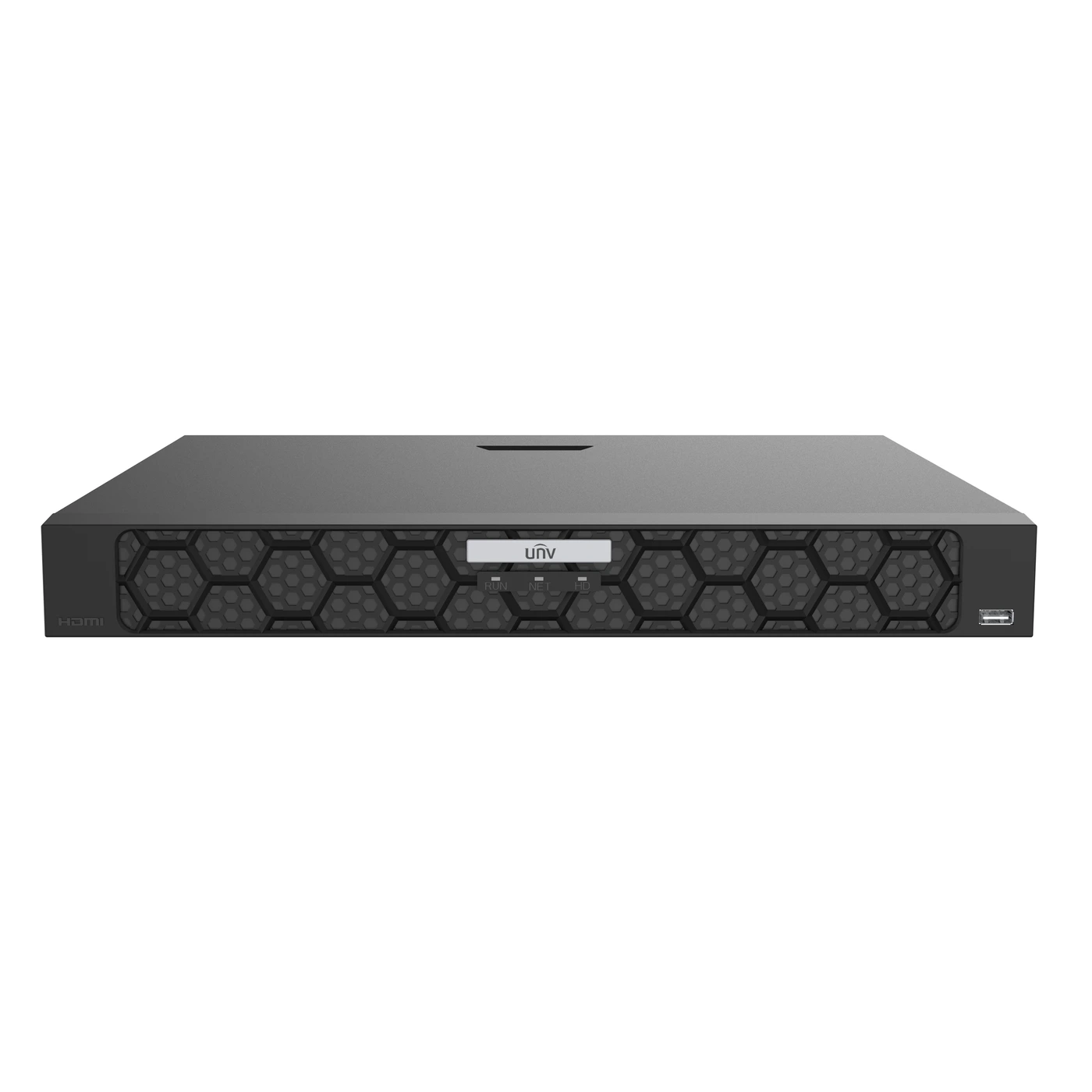

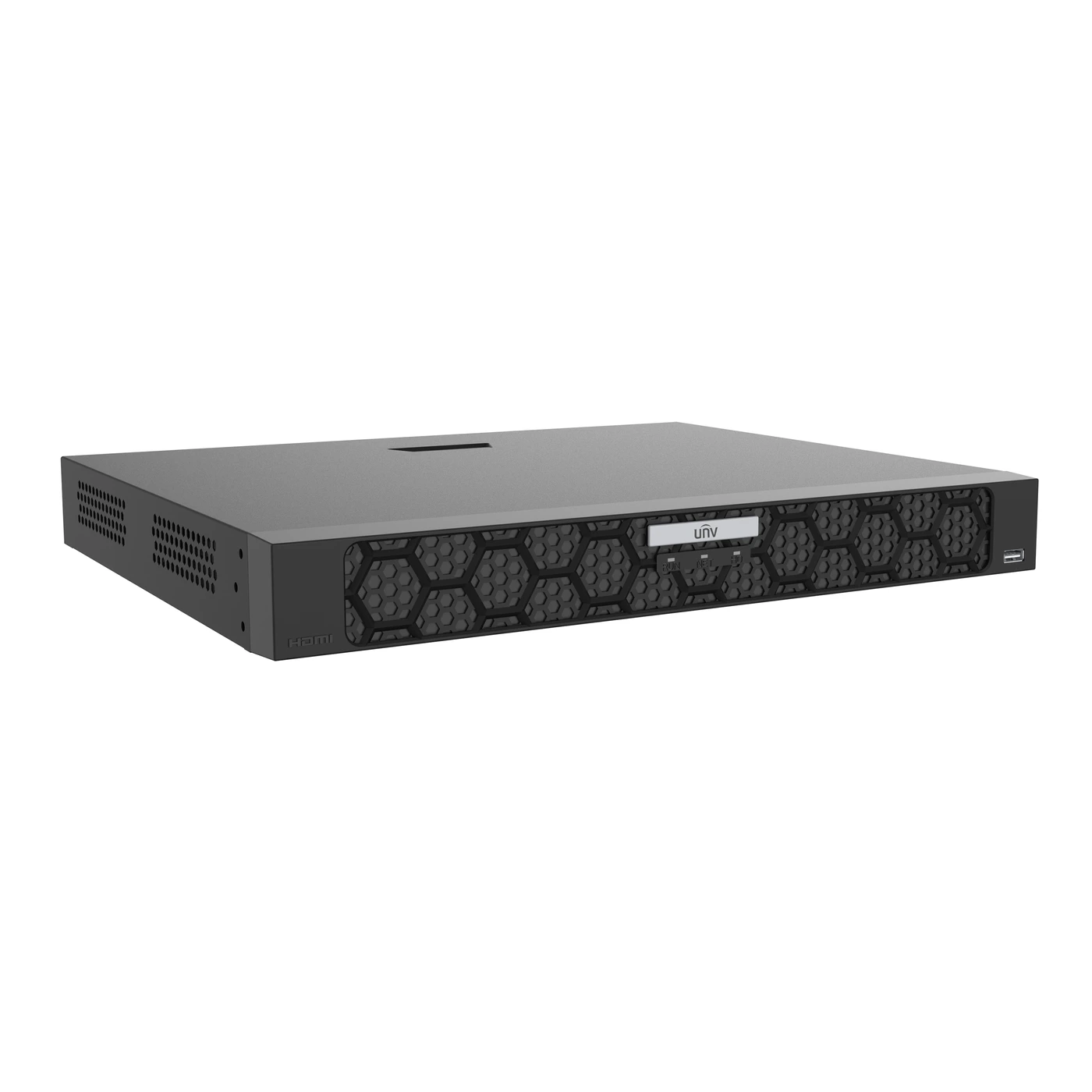

Uniview NVR502-16B-P16-IQ 16-Channel 16-PoE Dual-Bay IQ NVR
$904.49
Combine 16 powered camera connections with two drive bays and mode-selectable recorder-side smart analysis.
- 16 PoE ports with a 240 W budget
- Recorder-side SIP and UMD
- Two SATA bays with RAID 1
- Independent HDMI and VGA displays
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Description
The NVR502-16B-P16-IQ brings 16 video inputs and 16 PoE ports together with recorder-side analytics. Its switch supplies up to 240 W across all ports, while Smart Intrusion Prevention and Ultra Motion Detection have their own resolution-dependent channel limits.
A two-drive RAID 1 option and independent HDMI/VGA outputs support recording and local review. Turning smart processing on reduces incoming bandwidth from 320 to 160 Mbps and lowers some decoding limits; plan stream settings around the intended analyzer mode.
Key Features
- 16 IP video inputs; recording up to 16 MP
- Incoming bandwidth: 320 Mbps Smart Off, 160 Mbps Smart On; outgoing: 160 Mbps
- 2 SATA interfaces; up to 24 TB per HDD subject to temperature and drive size; ambient must not exceed 40 C for that capacity
- 16 IEEE 802.3af/at PoE ports; 30 W maximum per port, 240 W shared total
- Smart Off decoding: 4 x 4K at 30 fps or 16 x 1080p at 30 fps
- Smart On decoding: 2 x 4K at 30 fps or 12 x 1080p at 30 fps or 16 x 720p at 30 fps
- NVR SIP: up to 4 x 2 MP, 2 x 4 MP, or 1 x 4K; NVR UMD: up to 8 x 2 MP, 4 x 4 MP, or 2 x 4K
- HDMI up to 4K/30 Hz; Gigabit uplink; 8 alarm inputs and 2 outputs; 100-240 V AC
Full Specifications
Hard-drive configuration is awaiting confirmation. Listed storage capacity is the supported maximum, not a promise of included drives or usable RAID capacity.
