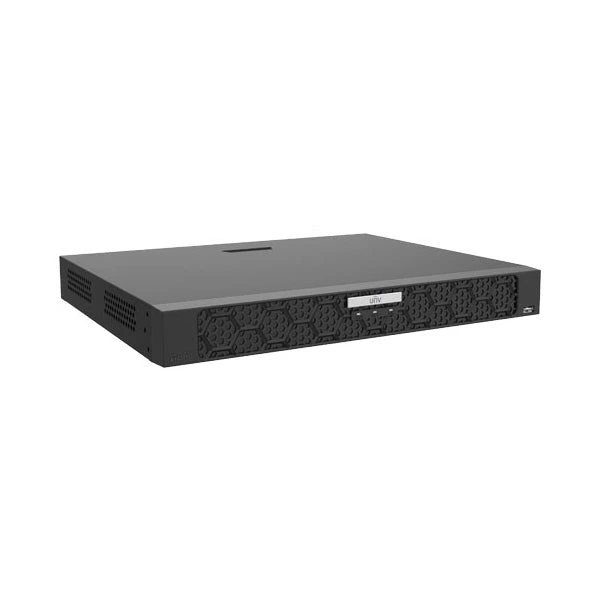

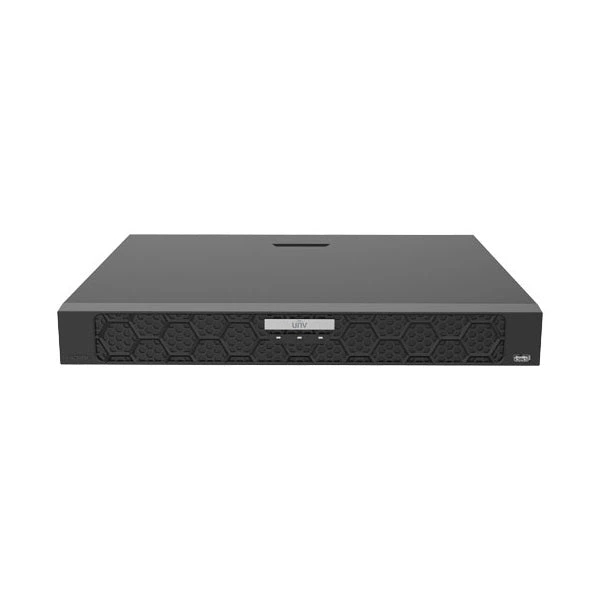

Uniview NVR502-16B-P16 16-Channel 16-PoE Dual-Bay NVR
$723.29
Record 16 IP camera feeds with 16 built-in PoE ports, a 240 W shared power budget and two SATA storage bays.
- 16 recording channels and 16 PoE ports
- 240 W shared PoE budget
- Two bays with RAID 1
- 16-channel local playback
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Description
For a 16-camera installation, the NVR502-16B-P16 provides a powered port for every recording channel. Its 240 W shared PoE budget and 320 Mbps incoming bandwidth give separate limits for camera power and video traffic.
The dual-bay storage design supports RAID 1 under the current manufacturer specification. Independent HDMI and VGA outputs provide local monitoring, and up to 16 channels can be reviewed together. Smart-event handling depends on supported camera features; this model does not carry the IQ suffix.
Key Features
- 320 Mbps incoming and 160 Mbps outgoing bandwidth
- 2 SATA interfaces; up to 24 TB per HDD subject to temperature and drive size; ambient must not exceed 40 C for that capacity
- 16 IEEE 802.3af/at PoE ports; 30 W maximum per port, 240 W shared total
- Recording up to 16 MP; 16-channel synchronous playback
- Ultra 265/H.265 decoding: 4 x 4K at 30 fps or 16 x 1080p at 30 fps
- H.264 decoding: 2 x 4K at 30 fps or 14 x 1080p at 30 fps
- Independent HDMI up to 4K/30 Hz and VGA; Gigabit uplink
- 8 alarm inputs and 2 outputs; 100-240 V AC
Full Specifications
Hard-drive configuration is awaiting confirmation. Listed storage capacity is the supported maximum, not a promise of included drives or usable RAID capacity.
