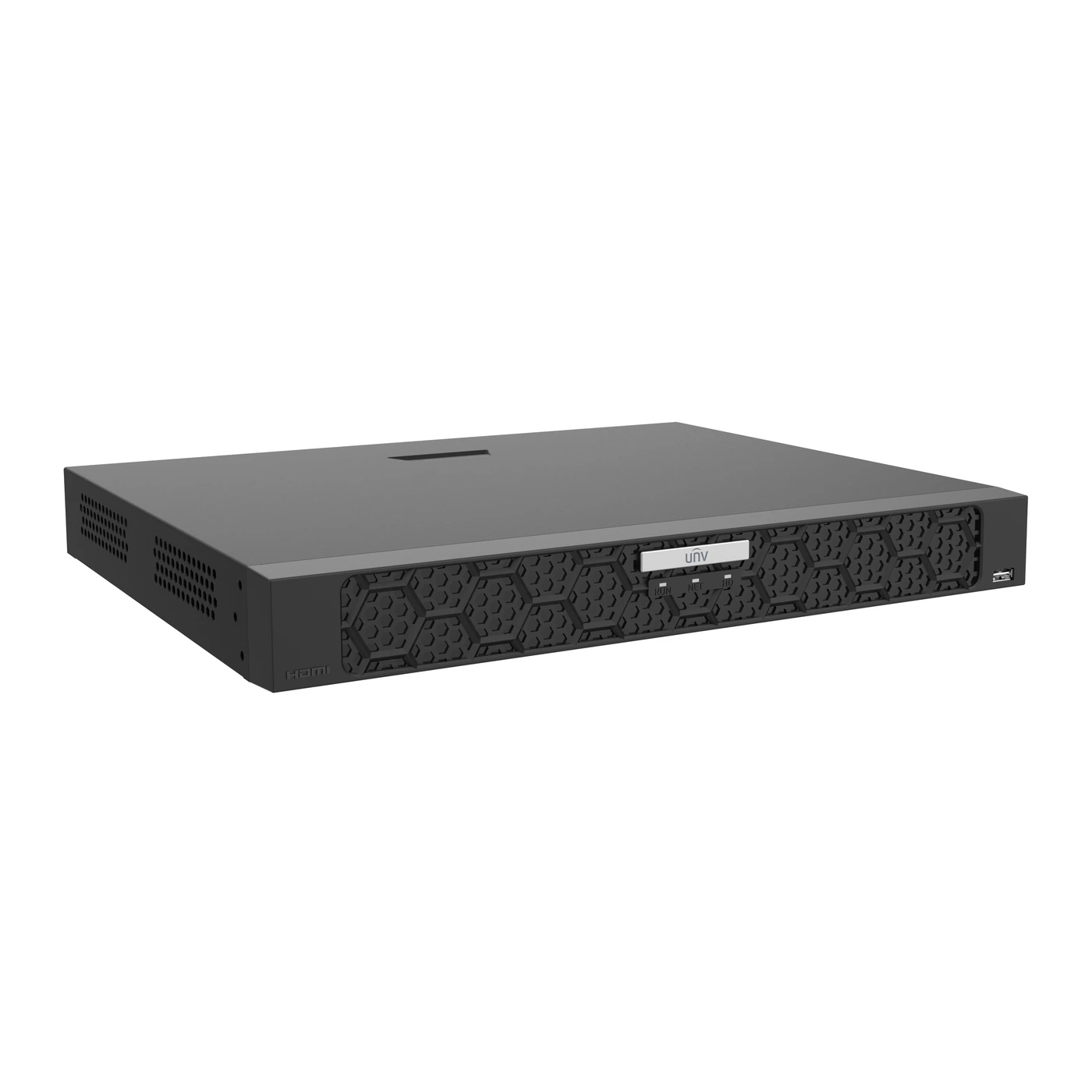

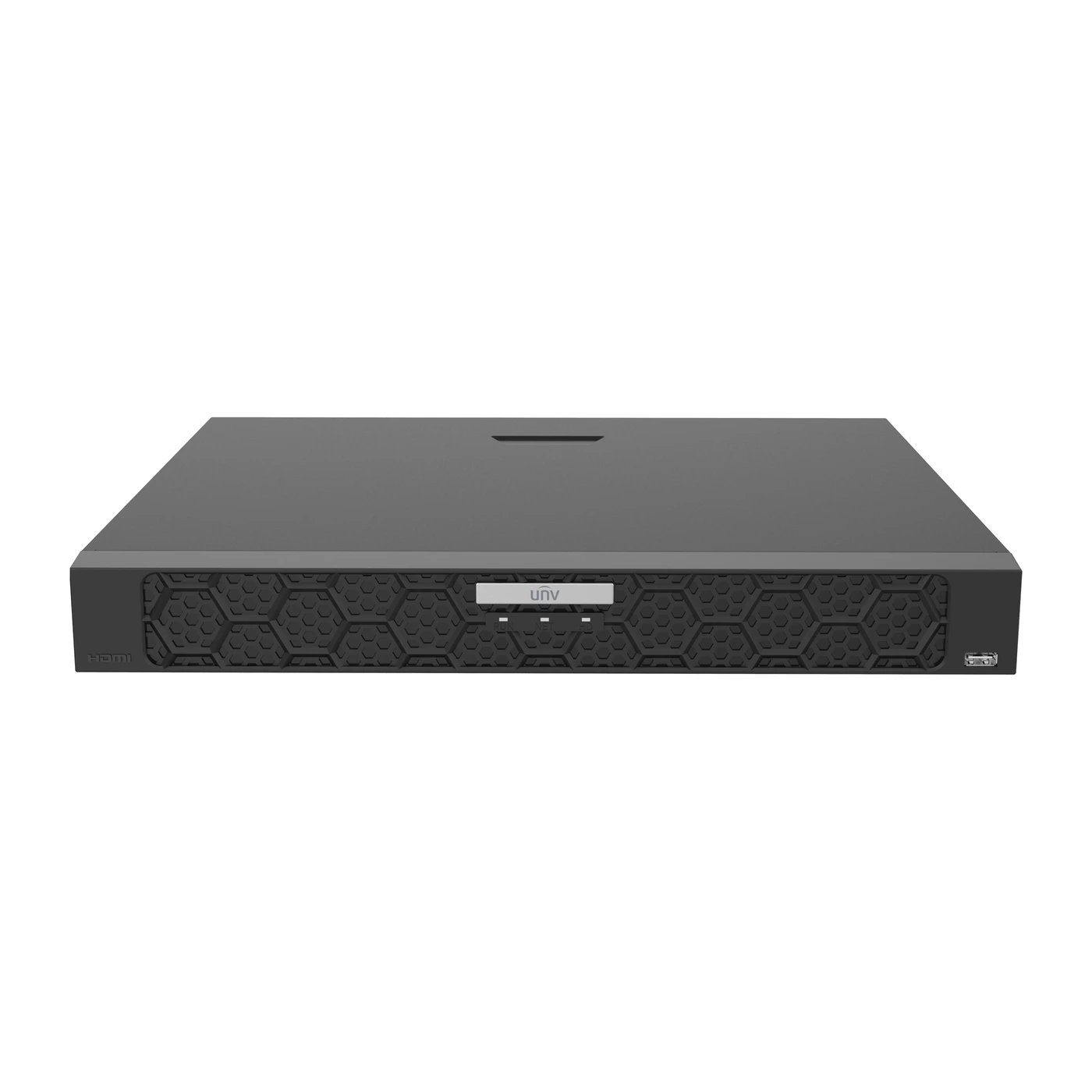

Uniview NVR502-08B-P8 8-Channel 8-PoE Dual-Bay NVR

$617.59

Combine eight PoE camera inputs with two SATA bays, a Gigabit uplink and independent HDMI/VGA monitoring.

  • Eight PoE camera connections
  • Two SATA bays with RAID 1
  • 130 W shared PoE budget
  • Independent HDMI and VGA output

Connection & Power

IP

Wired Connection

8

Total Channels

AC Powered

1 HDMI Outputs

Resolution

See the Difference More Pixels Make

Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.

This product 4K
720p 1280 x 720 0.9 million pixels
1080p 1920 x 1080 2.1 million pixels
2K / 1440p 2560 x 1440 3.7 million pixels
4K 3840 x 2160 8.3 million pixels This product

Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.

Description

The NVR502-08B-P8 gives an eight-camera system two internal drive bays and a 130 W shared PoE budget. Its Gigabit uplink and 320 Mbps incoming bandwidth allow more aggregate recording traffic than the single-bay NVR501 model.

For local viewing, HDMI and VGA operate independently, and HDMI supports 4K output. The current manufacturer specification includes RAID 1. Event-search functions rely on supported camera-generated analytics; this is the non-IQ model, not a substitute for an NVR-side analytics engine.

Key Features

  • 320 Mbps incoming and 160 Mbps outgoing bandwidth
  • 2 SATA interfaces; up to 24 TB per HDD subject to temperature and drive size; ambient must not exceed 40 C for that capacity
  • RAID 1; disk groups and redundant storage supported
  • 8 IEEE 802.3af/at PoE ports; 30 W maximum per port, 130 W shared total
  • Recording up to 16 MP; 8-channel synchronous playback
  • Ultra 265/H.265 decoding: 2 x 16 MP at 30 fps, 4 x 4K at 30 fps, or 8 x 4 MP at 30 fps
  • HDMI up to 3840 x 2160 at 30 Hz; VGA independent output
  • 1 Gigabit Ethernet uplink; 8 alarm inputs and 2 outputs; 100-240 V AC

Full Specifications

Resolution:
Built-in PoE Ports:
8
Channels:
8
Decoding Format:
H.264, H.265, Ultra 265
DVR/NVR Storage Capacity:
48TB
Hard Drive Bays:
2
HDMI Outputs:
1
Remote Users:
128
Connection Type:
Wired Connection Type:
Powered by:
Weight:
5.732 lbs
Dimensions:
12.68 × 14.96 × 2.09 in

  • Hard-drive configuration is awaiting confirmation. Listed storage capacity is the supported maximum, not a promise of included drives or usable RAID capacity.
