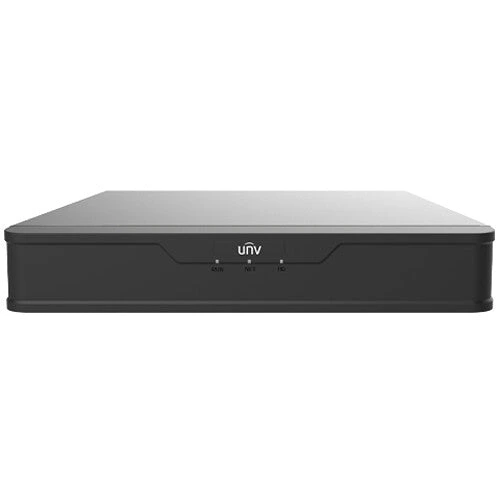

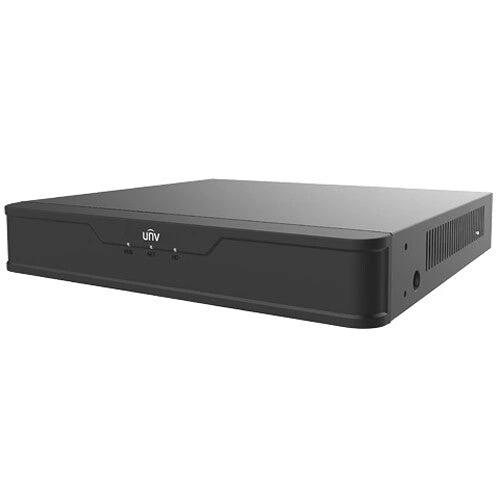

Uniview NVR501-08B-P8 8-Channel 8-PoE Single-Bay NVR
$339.75
Connect eight PoE cameras to a compact single-drive recorder with 16 MP recording support and a 4K HDMI output.
- Eight channels and eight PoE ports
- Compact single-drive chassis
- Recording up to 16 MP
- 4K HDMI output
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Description
The NVR501-08B-P8 packages eight recording channels and eight powered camera ports into a 260 mm-wide chassis. Its PoE switch has a 75 W shared budget, making camera power calculations important even though each port can deliver up to 30 W.
A single SATA bay keeps storage straightforward, while HDMI and VGA provide simultaneous local display output. Recording supports streams up to 16 MP, with 80 Mbps total incoming bandwidth; the selected camera bitrates must fit within that aggregate limit.
Key Features
- 80 Mbps incoming and 64 Mbps outgoing bandwidth
- 1 SATA interface; current official table supports up to 24 TB, subject to temperature and drive size; ambient must not exceed 40 C for that capacity
- 8 IEEE 802.3af/at PoE ports; 30 W maximum per port, 75 W shared total
- Ultra 265/H.265 decoding: 2 x 16 MP at 30 fps or 4 x 4K at 30 fps or 8 x 4 MP at 30 fps
- H.264 decoding: up to 2 x 4K at 30 fps
- HDMI up to 3840 x 2160 at 30 Hz; simultaneous HDMI/VGA output
- 1 10/100 Mbps Ethernet uplink; 1 USB 2.0 and 1 USB 3.0
- 52 V DC, 1.8 A input; consumption without HDD at most 10 W
Full Specifications
Hard-drive configuration is awaiting confirmation. Listed storage capacity is the supported maximum, not a promise of included drives or usable RAID capacity.
