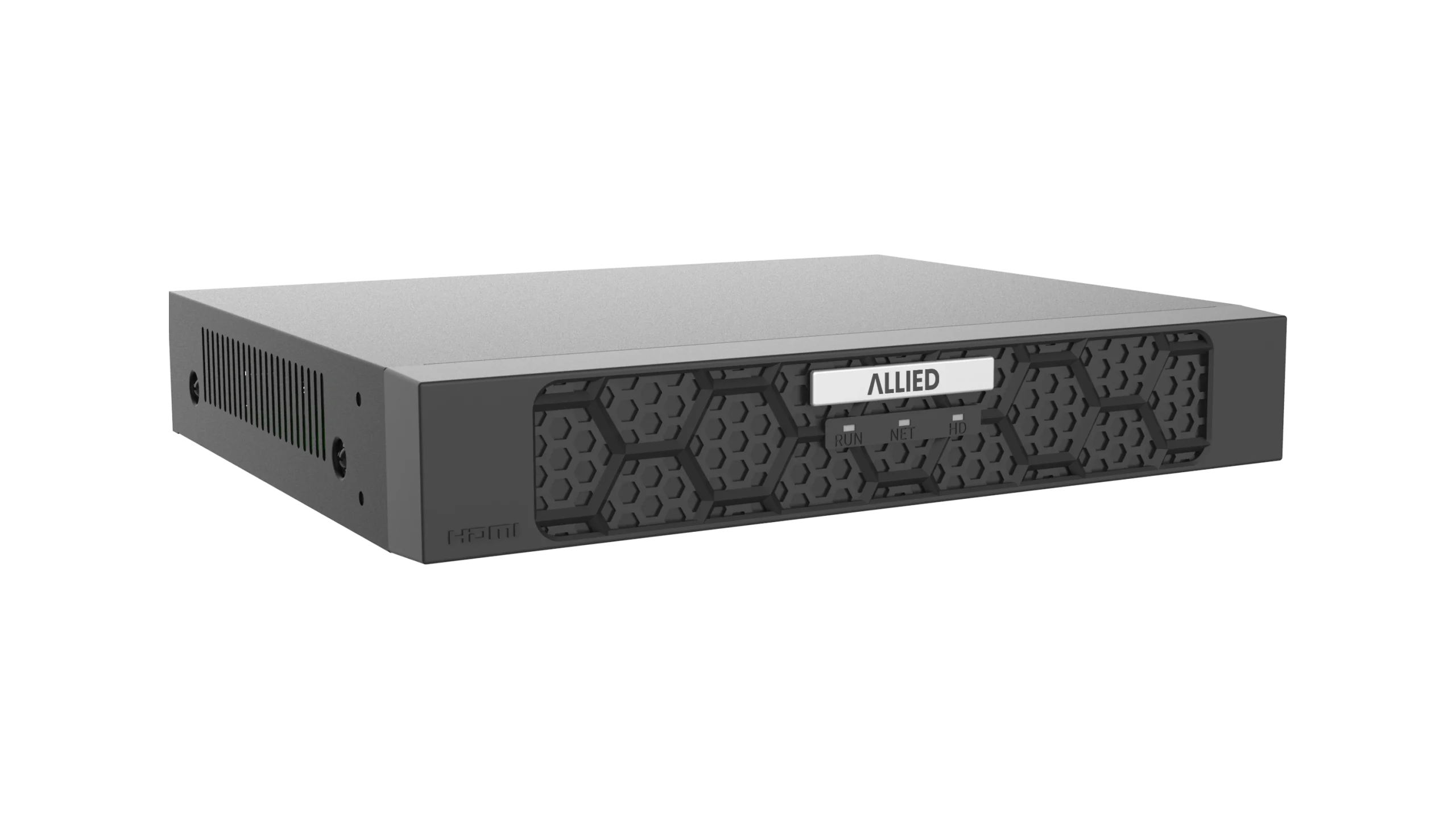

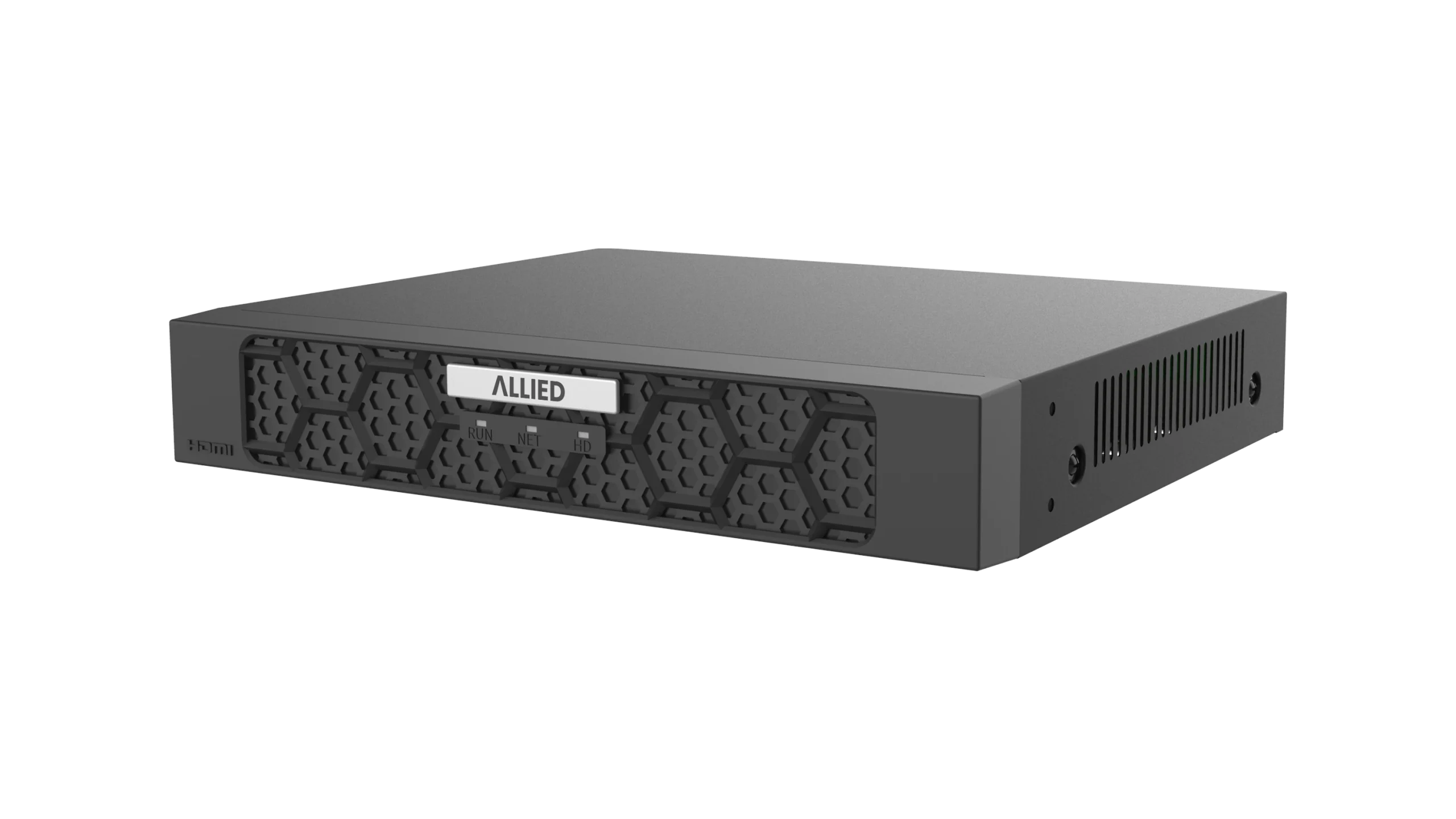

Allied 8-Channel 12MP NVR with 8-Port PoE
$646.65
A compact eight-channel NVR with eight built-in PoE ports, up to 12MP recording, 4K HDMI, a 24TB drive ceiling, and next-generation AcuSearch and AcuTrack tools.
- Eight Built-In PoE Ports Keep Installation Clean
- Supports Detailed Cameras up to 12MP
- Up to 24TB of Recording Capacity
- AcuSearch Jumps to People and Vehicles
- An All-in-One NVR for Smaller Properties
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 8-Channel 12MP NVR pairs each camera channel with its own built-in PoE port, giving an eight-camera IP system a straightforward single-recorder layout. It supports recording up to 12MP per camera and displays video locally in 4K, preserving detail for faces near the camera, vehicles, packages, and activity at entrances.
One SATA bay supports a current verified maximum of 24TB, and Ultra 265 compression helps retain more footage within that drive. The NVR’s AcuSearch and AcuTrack tools can follow people or vehicles across compatible camera views, while face, vehicle, human-body, and general search modes make investigations more direct. In an Allied home security camera installation, that combination gives a larger home or small business professional recording without an oversized rack.
Smart Intrusion Prevention and UMD add event filtering at the edge of the system, while 128-user remote capacity supports controlled access for owners, managers, or investigators. It is the right starting point when eight PoE cameras, high resolution, and intelligent search cover the complete requirement.
Key Features

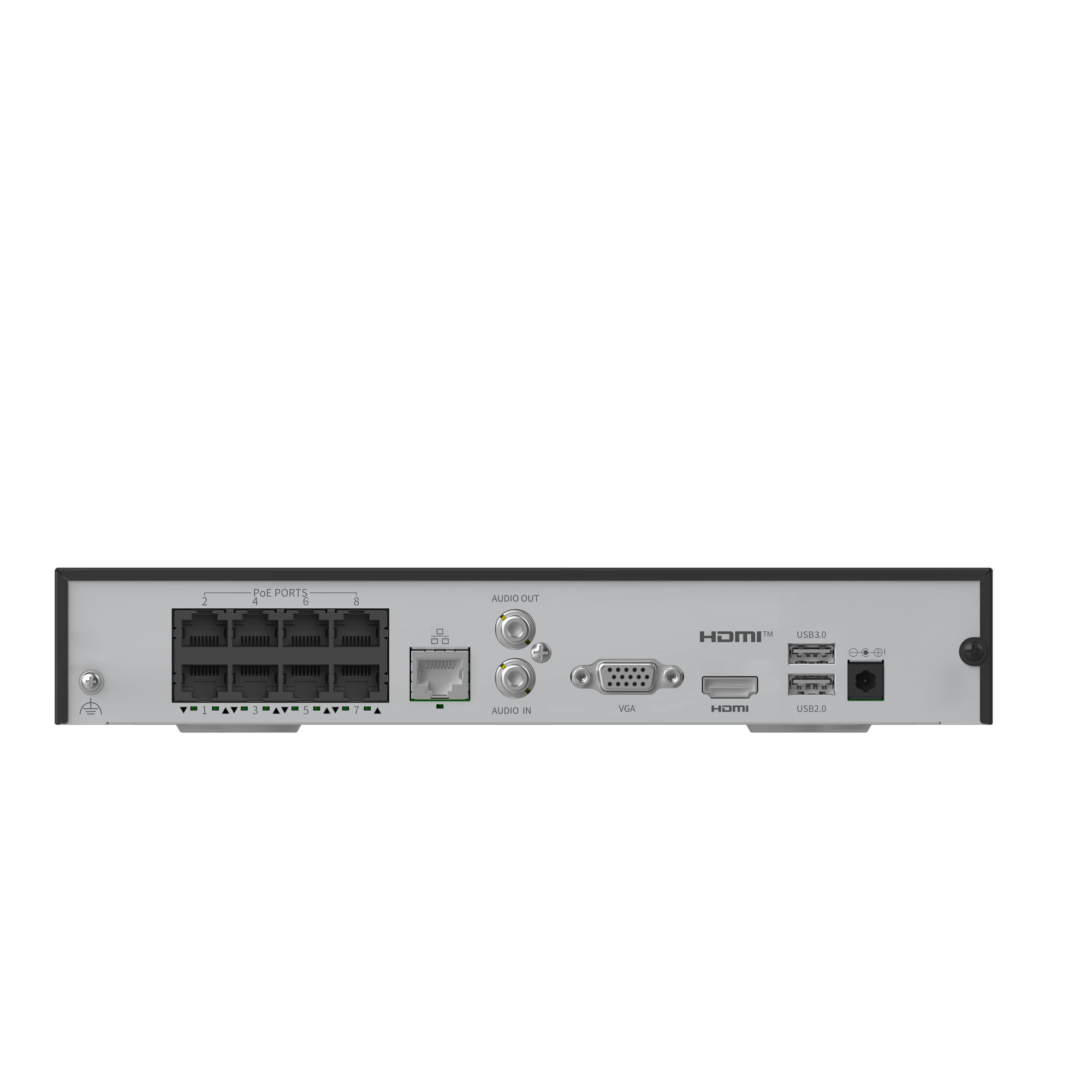

- 8 IP camera channels with 8 built-in PoE ports
- Up to 12MP recording resolution
- 4K HDMI output
- One hard-drive bay supporting up to 24TB
- Ultra 265, H.265, and H.264 compression
- AcuSearch, AcuTrack, face, vehicle, and human-body search
- Smart Intrusion Prevention, UMD, and ANR
Full Specifications
- Megapixels:
- 12
- Resolution:
- 4K
- FPS:
- 30
- Smart Features:
- AcuSearch, AcuTrack, Face Capture, Facial Recognition, Intelligent people flow counting, License Plate Reader, Smart Intrusion Prevention, UMD (human,vehicle,pet) Detection, Video Analytics
- Built-in PoE Ports:
- 8
- Channels:
- 8
- Decoding Format:
- H.264, H.265, Ultra 265
- DVR/NVR Storage Capacity:
- 24TB
- Hard Drive Bays:
- 1
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- Wired Connection Type:
- IP
- U Size:
- 1U
- Weight:
- 1.764 lbs
