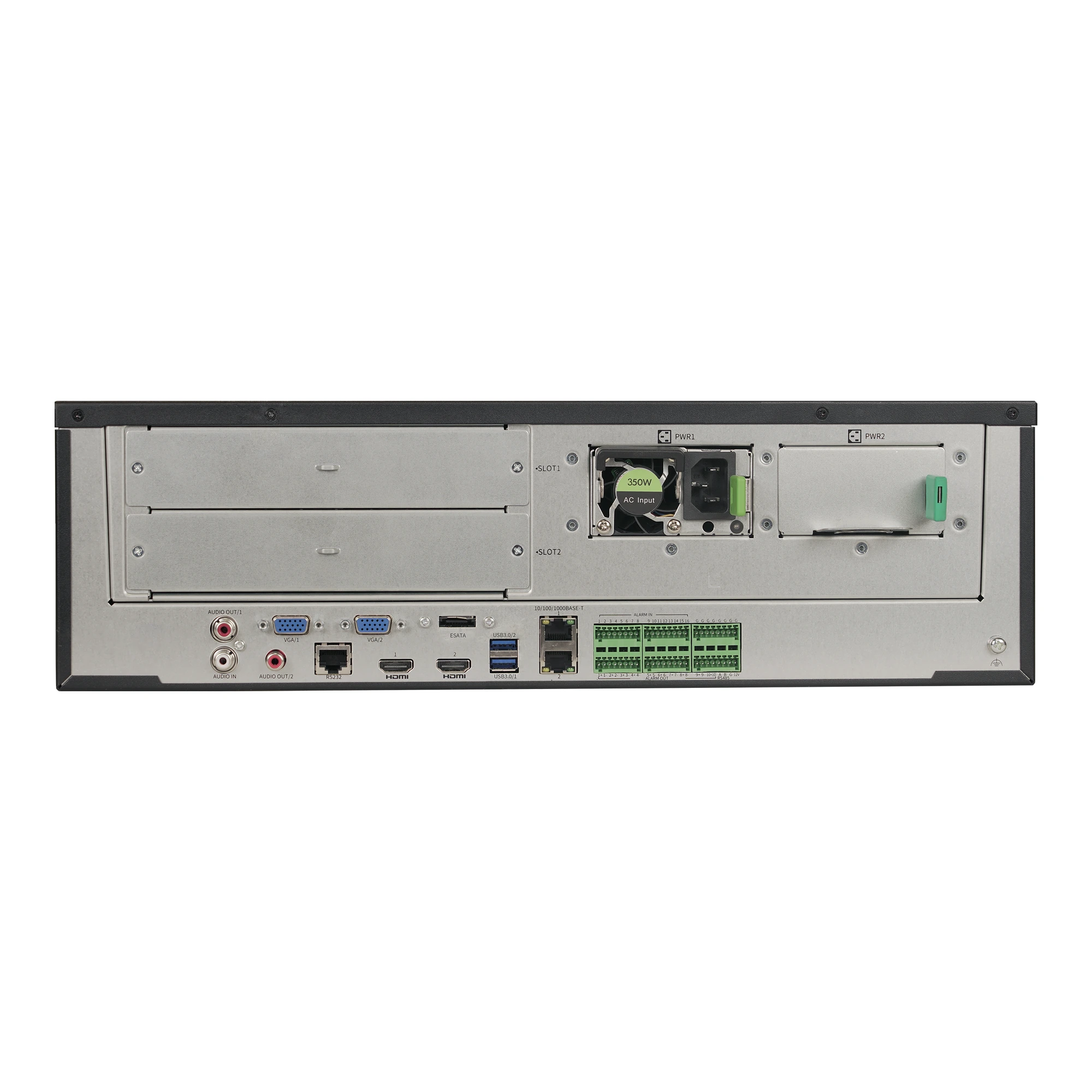

Allied 64-Channel 32MP 8K Enterprise NVR
$4,308.26
A 64-channel enterprise NVR with 32MP recording, 8K and 4K HDMI outputs, 16 hot-swap drive bays, up to 384TB, advanced RAID, and redundancy options.
- Enterprise Recording for Up to 64 Cameras
- Supports High-End Cameras up to 32MP
- Massive 384TB Maximum Storage
- 8K Output Across Dual HDMI Connections
- Face, License Plate and Perimeter Intelligence
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 64-Channel 32MP 8K Enterprise NVR is engineered for a large commercial property where one recording platform must support dozens of high-resolution cameras. It accepts 64 IP channels at up to 32MP, with an 8K primary HDMI output and a separate 4K HDMI output for detailed, independent local displays.
Sixteen hot-swap drive bays support up to 24TB each, creating a 384TB total ceiling before the selected RAID layout. RAID 0, 1, 5, 6, 10, 50, and 60 are available, along with redundant storage, optional redundant power, ANR, and N+1 hot-spare support. Those safeguards make it a serious foundation for Allied’s commercial security systems by industry, including campuses, distribution facilities, hospitality properties, and multi-building operations.
Face, vehicle, human-body, intrusion, and behavior search tools help operators move through a large archive without treating every channel the same. This recorder is for sites where storage resilience, centralized control, and high-resolution evidence are operational requirements rather than extras.
Key Features
- 64 IP camera channels at up to 32MP
- 8K primary HDMI and 4K secondary HDMI outputs
- 16 hot-swap drive bays, up to 24TB each and 384TB total
- RAID 0, 1, 5, 6, 10, 50, and 60
- Redundant storage, optional redundant power, ANR, and N+1 hot spare
- Ultra 265, H.265, and H.264 compression
- Advanced face, vehicle, intrusion, and behavior search
Full Specifications
- Megapixels:
- 32
- FPS:
- 30
- Smart Features:
- Face Capture, Facial Recognition, License Plate Reader, Smart Intrusion Prevention, UMD (human,vehicle,pet) Detection, Video Analytics
- Built-in PoE Ports:
- 0
- Channels:
- 64
- Decoding Format:
- H.264, H.265, Ultra 265
- DVR/NVR Storage Capacity:
- 384TB
- Hard Drive Bays:
- 16
- HDMI Outputs:
- 2
- Remote Users:
- 128
- Connection Type:
- Wired
- Wired Connection Type:
- IP
- U Size:
- 3U
- Weight:
- 14.33 lbs
