Allied 16-Channel 16MP NVR with 16-Port PoE
$1,246.46
Connect and record 16 PoE cameras at up to 16MP with 4K HDMI, RAID 1, advanced AI search, and up to 48TB across two hard-drive bays.
- Plug In Up to 16 PoE Cameras Directly
- Record High-Detail Cameras up to 16MP
- Up to 48TB Across Two Drive Bays
- AcuSearch Finds People and Vehicles Faster
- Face, Plate and Perimeter Intelligence Built In
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 16-Channel 16MP NVR gives every camera channel a built-in PoE port, creating a clean foundation for a complete 16-camera IP system. It records compatible cameras at up to 16MP resolution, making it appropriate for entrances, reception, hallways, production areas, parking, and perimeter views that need different levels of detail.
Two drive bays support up to 24TB each for 48TB total, with RAID 1 available for mirrored storage. Ultra 265 compression reduces bandwidth and storage pressure, and ANR can recover camera-side recordings after a temporary network interruption. Those safeguards fit naturally into Allied’s office security and surveillance projects where video availability is part of daily operations.
AcuSearch and AcuTrack accelerate person and vehicle investigations, while face, vehicle, human-body, people-counting, and heat-map search modes provide deeper review. It is a well-proportioned NVR for a 16-camera business that wants direct PoE connectivity on every channel.
Key Features

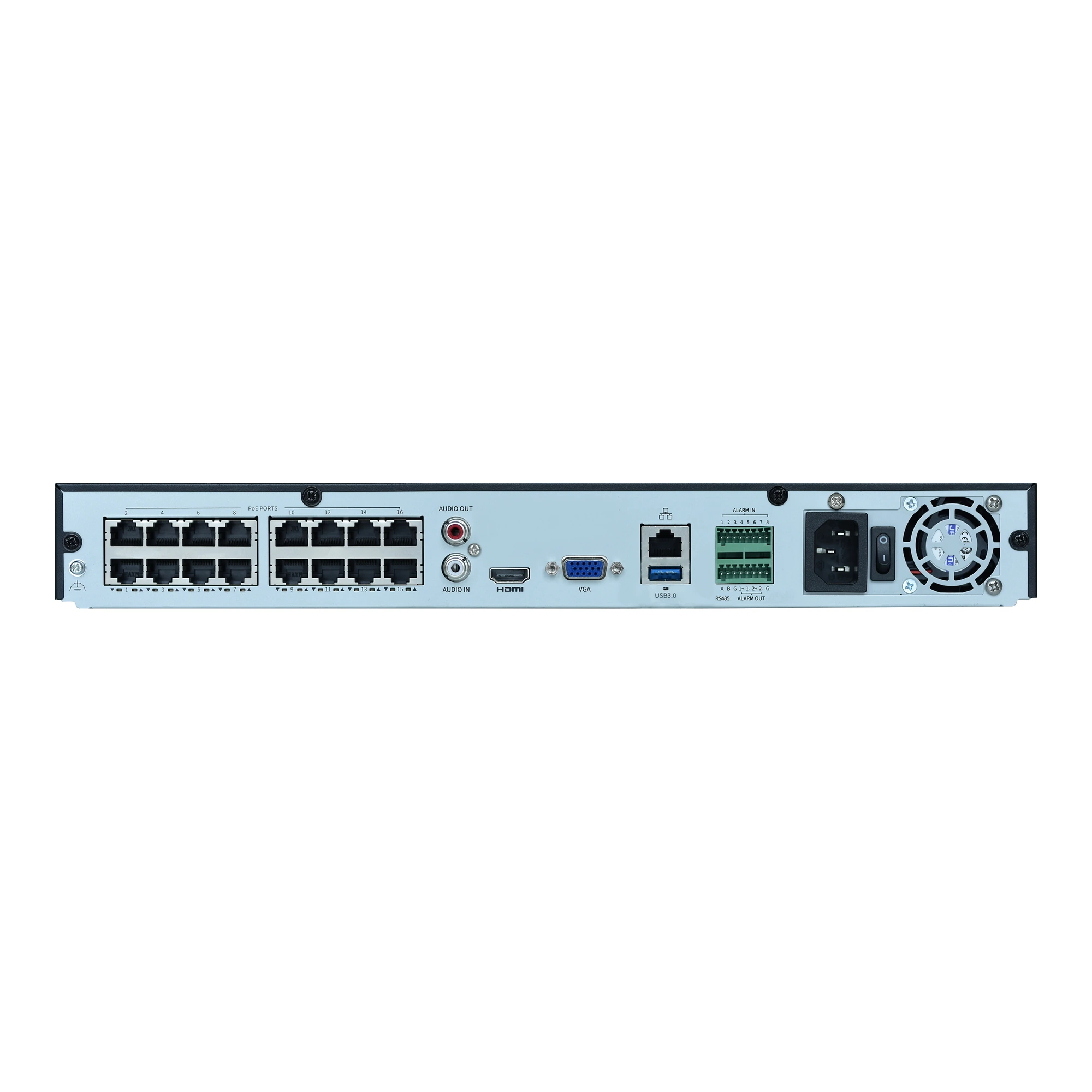

- 16 IP channels with 16 built-in PoE ports
- Up to 16MP recording resolution
- 4K HDMI local display output
- Two drive bays with up to 48TB total storage
- RAID 1, ANR, and Ultra 265 compression
- AcuSearch and AcuTrack person or vehicle investigation
- Face, vehicle, people-counting, and heat-map analytics
Full Specifications
- Megapixels:
- 16
- Resolution:
- 4K
- FPS:
- 30
- Smart Features:
- AcuSearch, AcuTrack, Face Capture, Facial Recognition, Intelligent people flow counting, License Plate Reader, Smart Intrusion Prevention, UMD (human,vehicle,pet) Detection, Video Analytics
- Built-in PoE Ports:
- 16
- Channels:
- 16
- Decoding Format:
- H.264, H.265, Ultra 265
- DVR/NVR Storage Capacity:
- 48TB
- Hard Drive Bays:
- 2
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- Wired Connection Type:
- IP
- U Size:
- 1U
- Weight:
- 5.952 lbs
