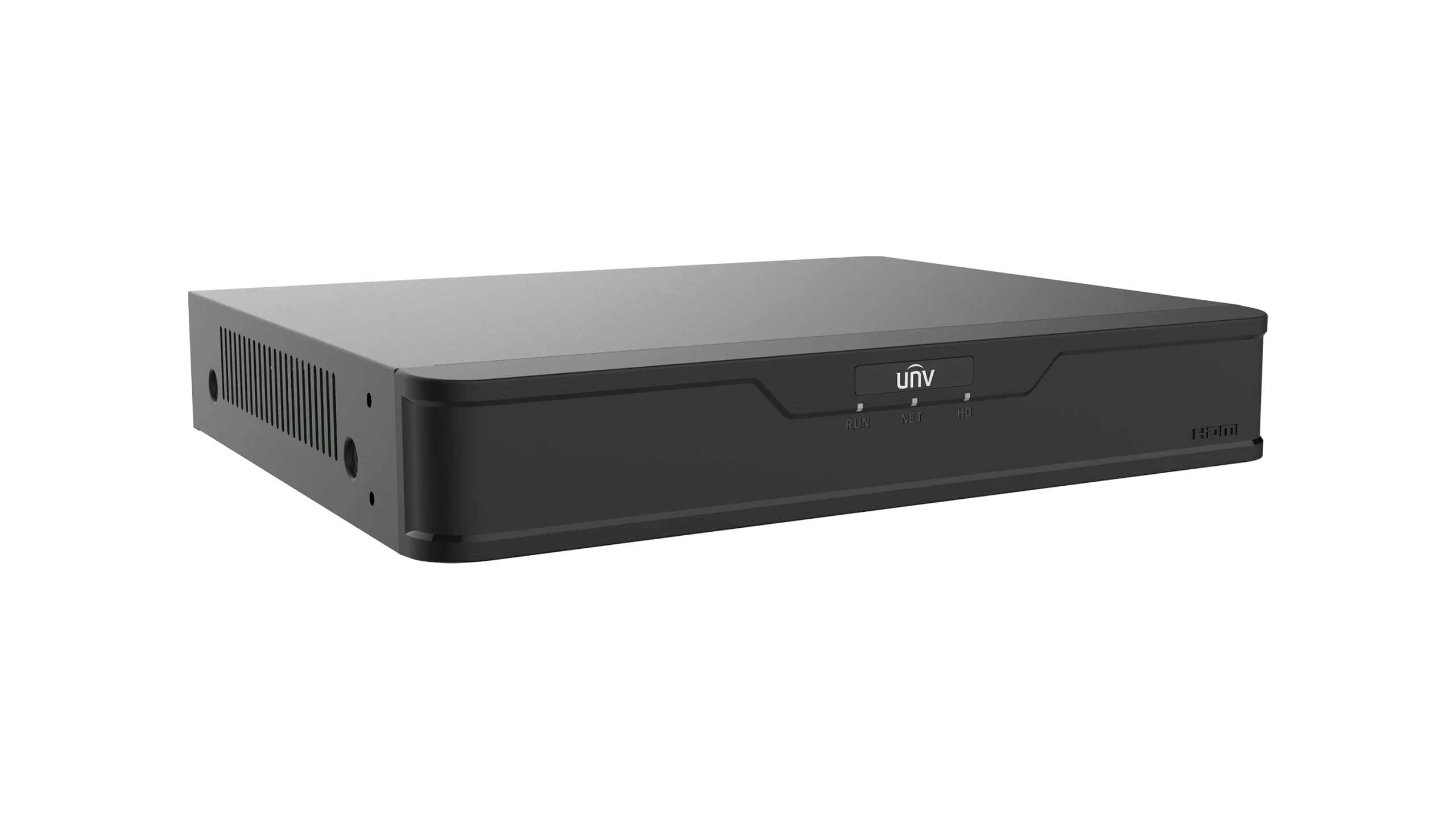

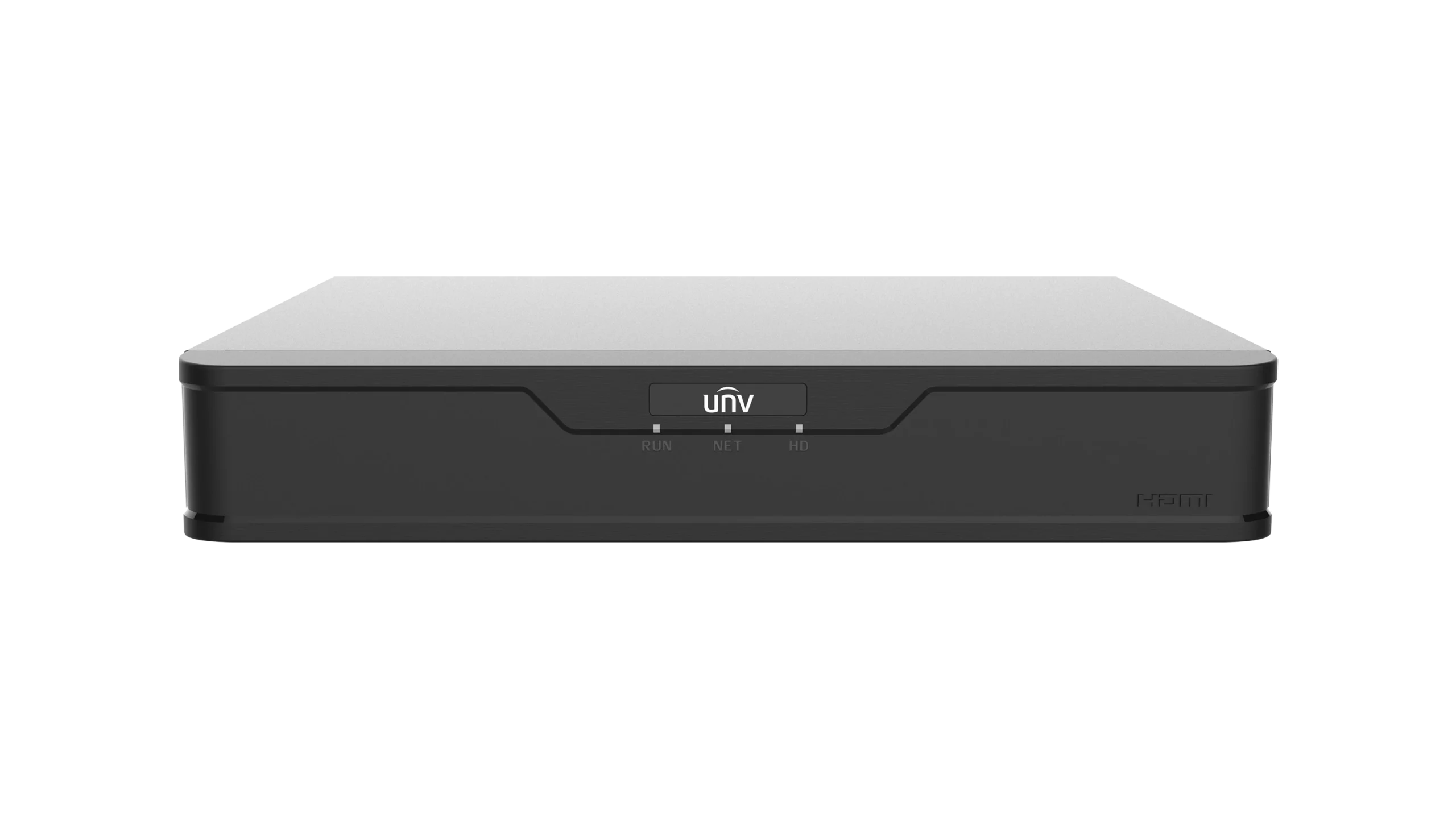

Allied 4-Channel 4MP Hybrid DVR
$174.15
A four-channel hybrid recorder for a focused wired camera system, with two added IP channels, up to 8MP Lite support, 4K HDMI output, and a 16TB drive ceiling.
- Right-Sized Recording for Up to Four TVI Cameras
- Add Two IP Cameras as the System Grows
- Up to 16TB in a Compact Recorder
- Smart Search Without an Enterprise Price
- A Practical Fit for Small Homes and Shops
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 4-Channel 4MP Hybrid DVR gives smaller properties a clean way to keep an existing coax camera system current. Four BNC inputs cover the primary views, while two additional IP channels can add a newer network camera at a door, driveway, or other high-value location.
Although positioned as a 4MP series recorder, the current XVR301-Q3 hardware supports recording up to 8MP Lite and a 4K HDMI display. One SATA bay accepts up to 16TB, and H.265 compression helps balance image quality with retention. That makes it useful when Allied takes over a working camera system and improves it selectively through the right camera installation approach.
Human, vehicle, and pet-aware motion detection can be paired with intrusion, cross-line, face, and behavior search. This model keeps the system simple: four main wired views, modest IP expansion, and the recording tools needed to find an event quickly.
Key Features

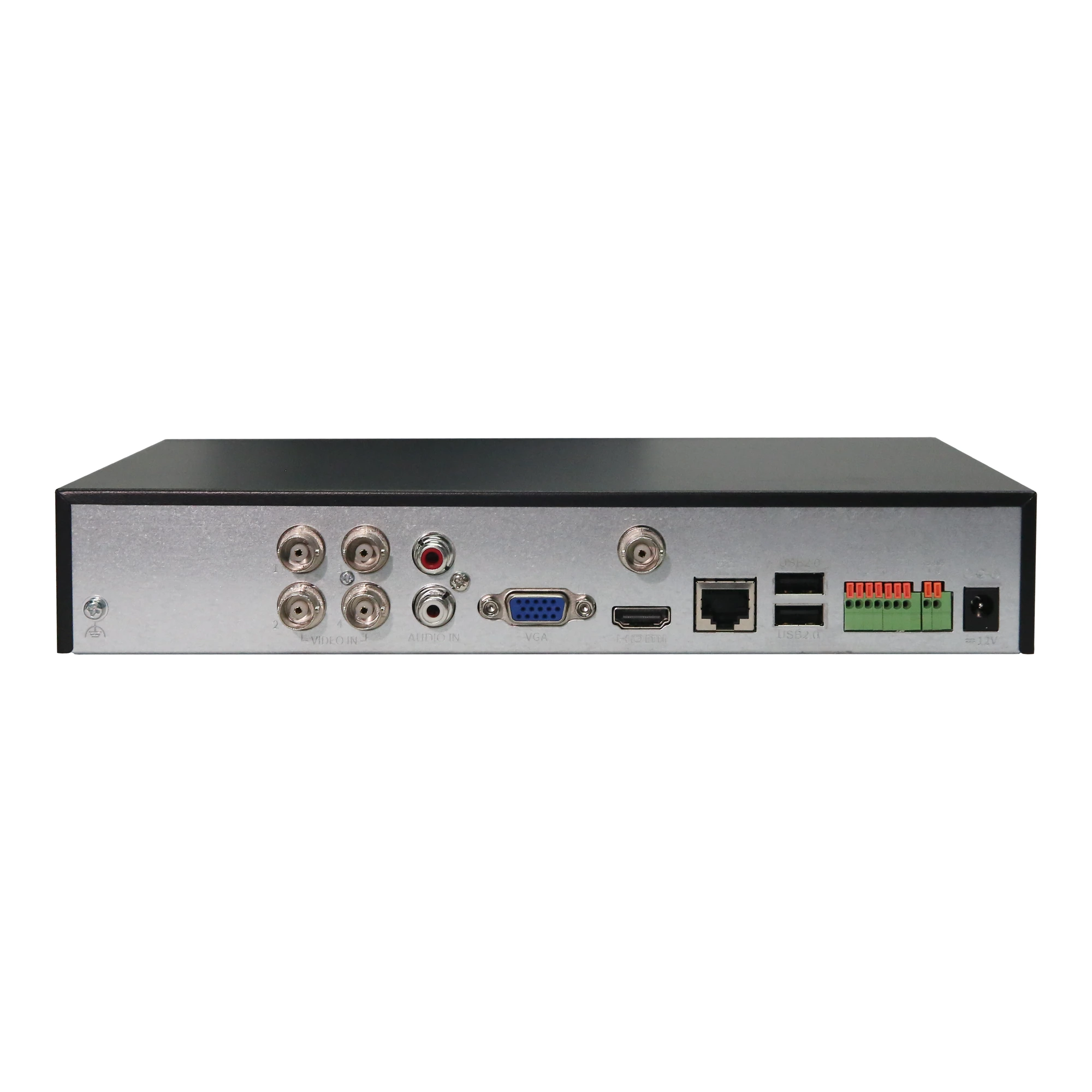

- 4 BNC inputs plus 2 additional IP channels
- Up to 6 total IP channels in all-IP mode
- 4MP and up to 8MP Lite recording support
- 4K HDMI output
- One hard-drive bay supporting up to 16TB
- H.265 and H.264 compression
- UMD, intrusion, face, and behavior search tools
Full Specifications
- FPS:
- 30
- Smart Features:
- Advanced Motion Detection, Behavior Search, Directional Trip Wire, Face Search, Intelligent people flow counting, UMD (human,vehicle,pet) Detection
- Additional IP Channels:
- 2
- Built-in PoE Ports:
- 0
- Channels:
- 4
- Decoding Format:
- H.264, H.265
- DVR/NVR Storage Capacity:
- 16TB
- Hard Drive Bays:
- 1
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- U Size:
- 1U
- Weight:
- 2.425 lbs
