Allied 32-Channel 5MP Hybrid DVR
$889.65
Preserve a large 32-camera coax system while adding IP capability, with up to 8MP Lite recording, 4K HDMI output, smart analytics, and 32TB total storage support.
- Record Up to 32 TVI Cameras in Sharp 5MP
- Add Four IP Cameras as Coverage Expands
- Preserve Existing Coax Infrastructure
- Up to 32TB for Longer Retention
- Find Events Faster with Intelligent Search
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 32-Channel 5MP Hybrid DVR is built for high-camera-count properties that already have extensive coax cabling in place. It can record 32 BNC channels plus four added IP cameras, or support up to 36 IP streams when the analog inputs are reassigned. That flexibility makes a staged camera upgrade possible without abandoning working infrastructure.
Up to 8MP Lite recording and 4K HDMI output provide the detail needed to review loading zones, long corridors, parking rows, and multiple entry points. Two bays support up to 16TB per drive for 32TB total, with H.265 compression helping the recorder retain more footage. In Allied’s warehouse security systems, this type of high-density recorder can consolidate broad coverage into one manageable platform.
Smart motion classification, intrusion and directional line rules, face search, behavior search, and people-counting reports help staff focus on exceptions instead of manually checking every channel. Choose it when the priority is keeping a large wired system useful while introducing selected IP cameras.
Key Features

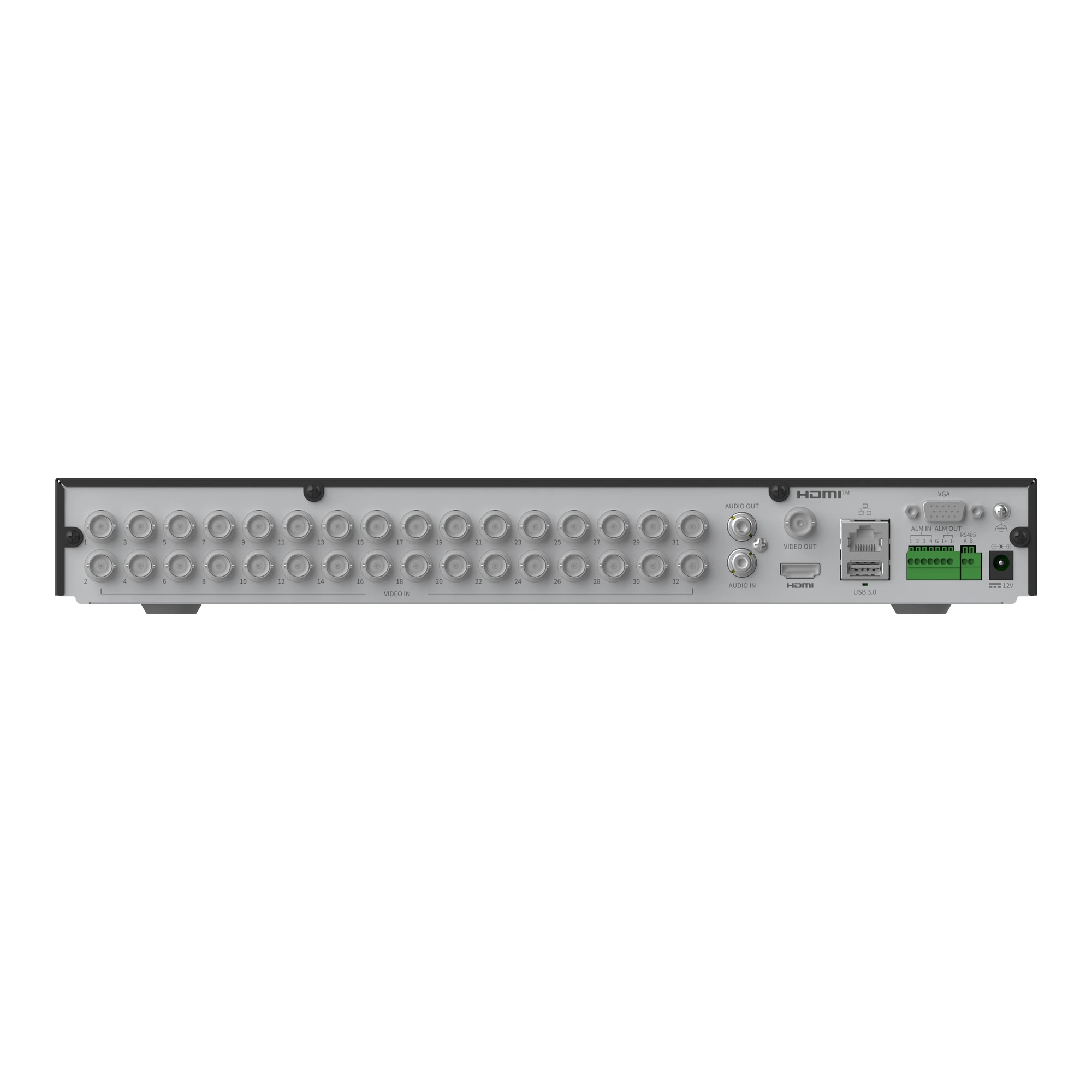

- 32 BNC channels plus 4 additional IP channels
- Up to 36 total IP channels in all-IP mode
- Up to 8MP Lite and 5MP Lite recording
- 4K HDMI local display output
- Two drive bays with up to 32TB total storage
- H.265 and H.264 compression
- UMD, intrusion, face, behavior, and people-counting tools
Full Specifications
- FPS:
- 30
- Smart Features:
- Advanced Motion Detection, Behavior Search, Directional Trip Wire, Face Search, Intelligent people flow counting, UMD (human,vehicle,pet) Detection
- Additional IP Channels:
- 4
- Built-in PoE Ports:
- 0
- Channels:
- 32
- Decoding Format:
- H.264, H.265
- DVR/NVR Storage Capacity:
- 32TB
- Hard Drive Bays:
- 2
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- U Size:
- 1U
- Weight:
- 5.732 lbs
