Allied 32-Channel 4MP Hybrid DVR
$837.00
A high-density hybrid DVR for 32 existing BNC cameras with four IP expansion channels, up to 8MP Lite recording, 4K HDMI, and 32TB total storage support.
- 32-Camera Capacity for Larger Coax Systems
- Add Up to Four IP Cameras Without Replacing TVI
- 4K Output with up to 32TB Storage
- Smart Search for Faces, Motion and Behavior
- Made for Large Homes and Commercial Properties
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The Allied 32-Channel 4MP Hybrid DVR lets a large property modernize without turning a working coax installation into waste. Thirty-two BNC inputs support the existing camera footprint, and four IP channels can introduce network cameras at the locations where sharper analytics or specialized coverage matters most. In all-IP mode, it can handle up to 36 streams.
Recording reaches up to 8MP Lite, and the local HDMI output supports 4K review. Two 16TB-capable bays provide up to 32TB total storage for longer recording schedules. That makes this model a practical component in Allied’s commercial video surveillance projects where an existing 32-camera system needs a more capable recorder before a full camera replacement would make sense.
Smart motion classification, cross-line and intrusion rules, face search, behavior search, and people-counting reports give operators better ways to investigate across many channels. Its value is in combining a large analog takeover with measured IP growth.
Key Features

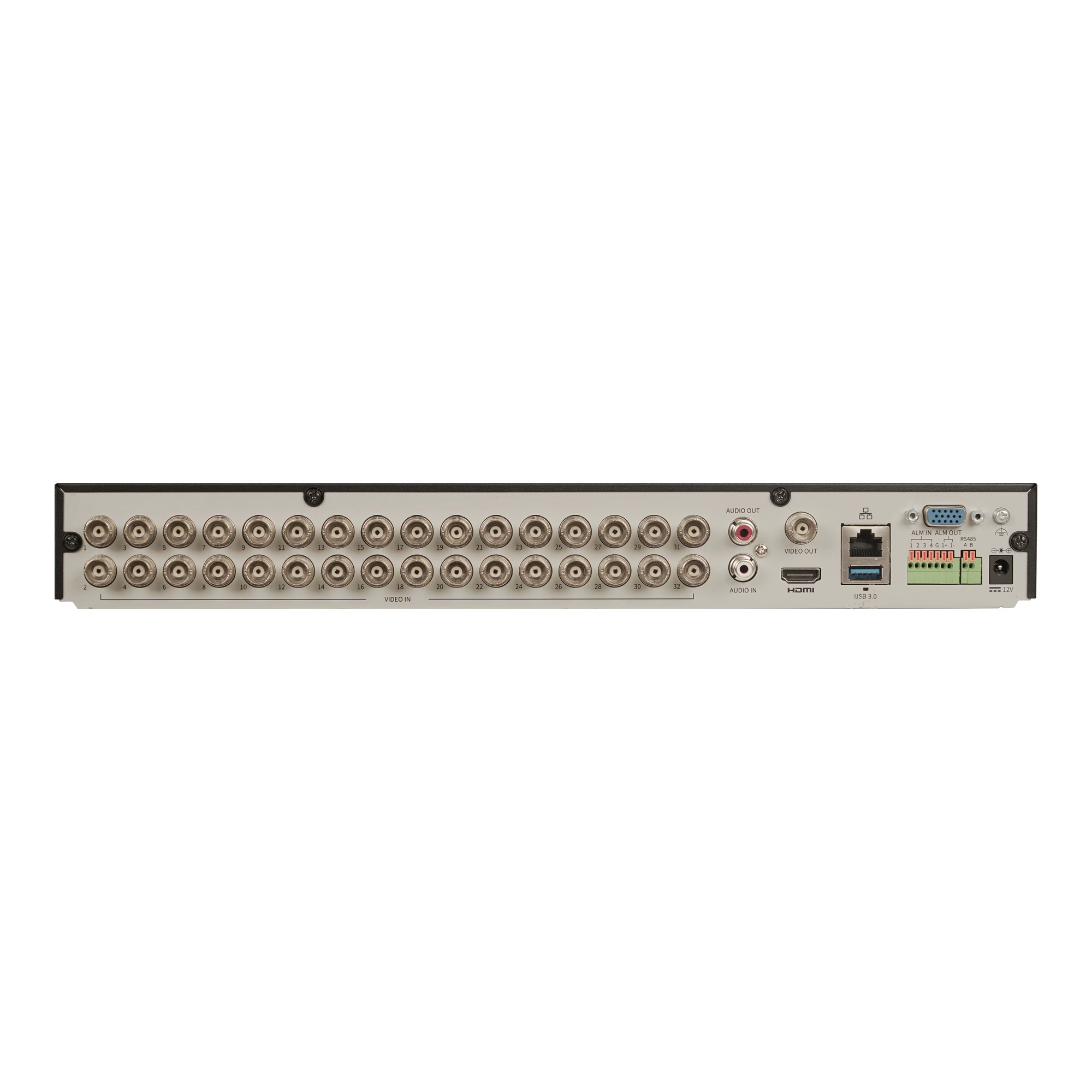

- 32 BNC inputs plus 4 additional IP channels
- Up to 36 total IP streams in all-IP mode
- Up to 8MP Lite recording
- 4K HDMI local display
- Two drive bays with up to 32TB total capacity
- H.265 compression for more efficient storage use
- Advanced motion, intrusion, face, and behavior search
Full Specifications
- FPS:
- 30
- Smart Features:
- Advanced Motion Detection, Behavior Search, Directional Trip Wire, Face Search, Intelligent people flow counting, UMD (human,vehicle,pet) Detection
- Additional IP Channels:
- 4
- Built-in PoE Ports:
- 0
- Channels:
- 32
- Decoding Format:
- H.264, H.265
- DVR/NVR Storage Capacity:
- 32TB
- Hard Drive Bays:
- 2
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- U Size:
- 1U
- Weight:
- 5.732 lbs
