Allied 16-Channel 4MP Hybrid DVR
$378.00
Run a 16-camera wired system with eight IP expansion channels, up to 8MP Lite recording, 4K HDMI output, two drive bays, and 32TB total storage support.
- 16 TVI Channels Plus Up to 8 IP Cameras
- Works with Existing Coax and New IP Cameras
- Supports Video up to 4K
- Expand Local Retention up to 32TB
- Smart Motion, Face and Behavior Search
Connection & Power
Storage & Access
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description

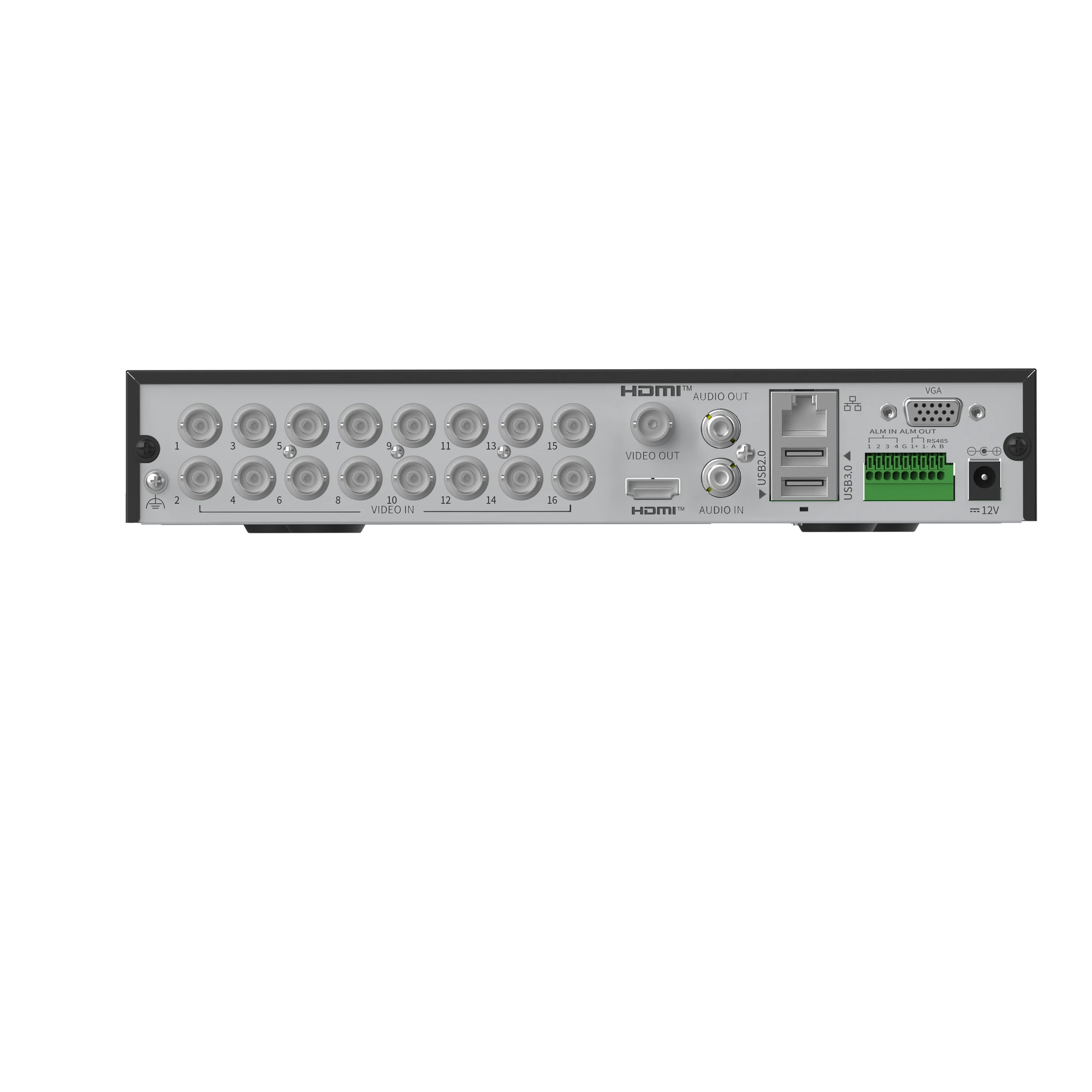

The Allied 16-Channel 4MP Hybrid DVR is designed for a broad camera layout that still relies on coax. Sixteen BNC inputs can keep a proven wired installation in service, while eight additional IP channels make room for higher-value network cameras. Reassigning the analog inputs allows up to 24 total IP streams.
The recorder supports 4MP and up to 8MP Lite recording, with 4K HDMI output for detailed local review. Two internal bays accept up to 16TB each, providing a 32TB total ceiling for longer recording schedules. It fits well in Allied’s office security and surveillance work, where entrances, halls, shared areas, and parking may all need their own view.
UMD, intrusion and cross-line rules, face search, behavior search, and people-counting reports reduce the time between an incident and the right clip. This is the Q3 recorder for a 16-camera footprint that needs both migration flexibility and meaningful storage headroom.
Key Features
- 16 BNC channels plus 8 additional IP channels
- Up to 24 total IP streams in all-IP mode
- Up to 8MP Lite recording and 4K HDMI output
- Two drive bays, up to 16TB each and 32TB total
- H.265 and H.264 video format support
- UMD, intrusion, face, behavior, and people-counting tools
Full Specifications
- FPS:
- 30
- Smart Features:
- Advanced Motion Detection, Behavior Search, Directional Trip Wire, Face Search, Intelligent people flow counting, UMD (human,vehicle,pet) Detection
- Additional IP Channels:
- 8
- Built-in PoE Ports:
- 0
- Channels:
- 16
- Decoding Format:
- H.264, H.265
- DVR/NVR Storage Capacity:
- 32TB
- Hard Drive Bays:
- 2
- HDMI Outputs:
- 1
- Remote Users:
- 128
- Connection Type:
- Wired
- U Size:
- 1U
- Weight:
- 4.409 lbs
