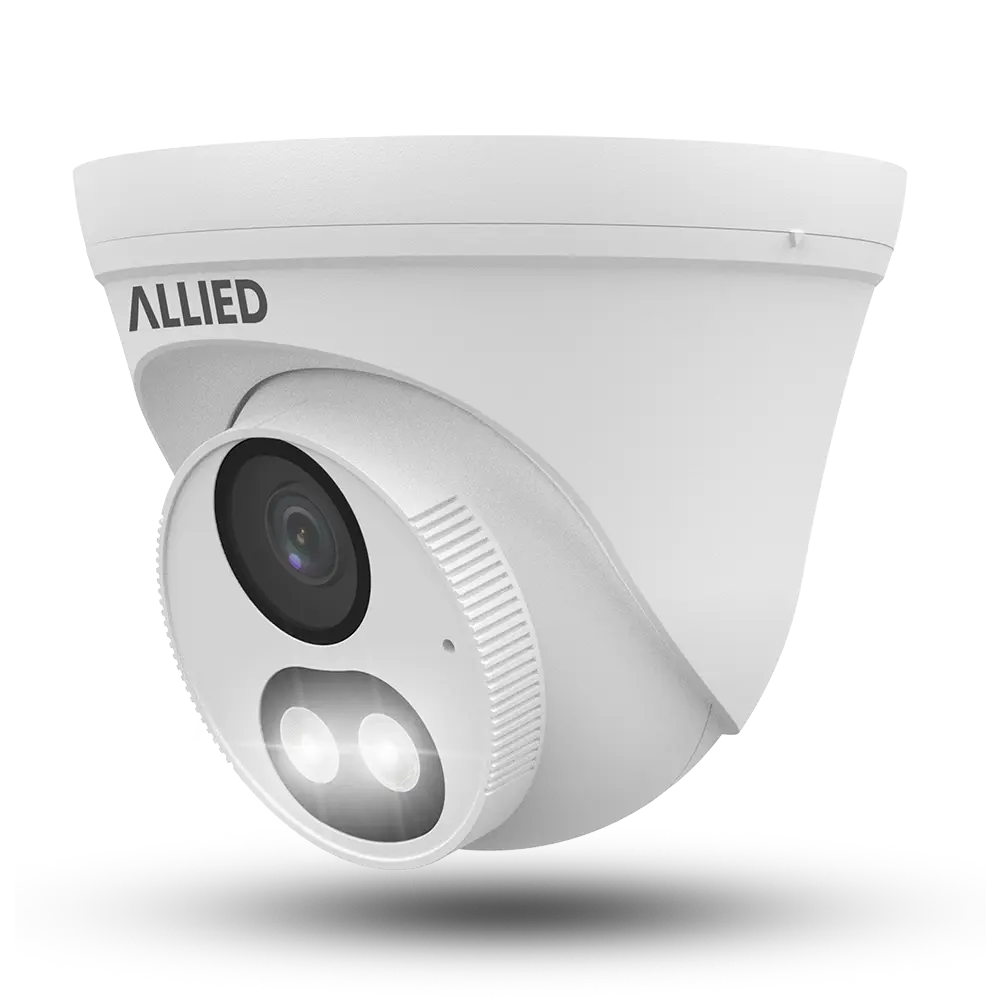

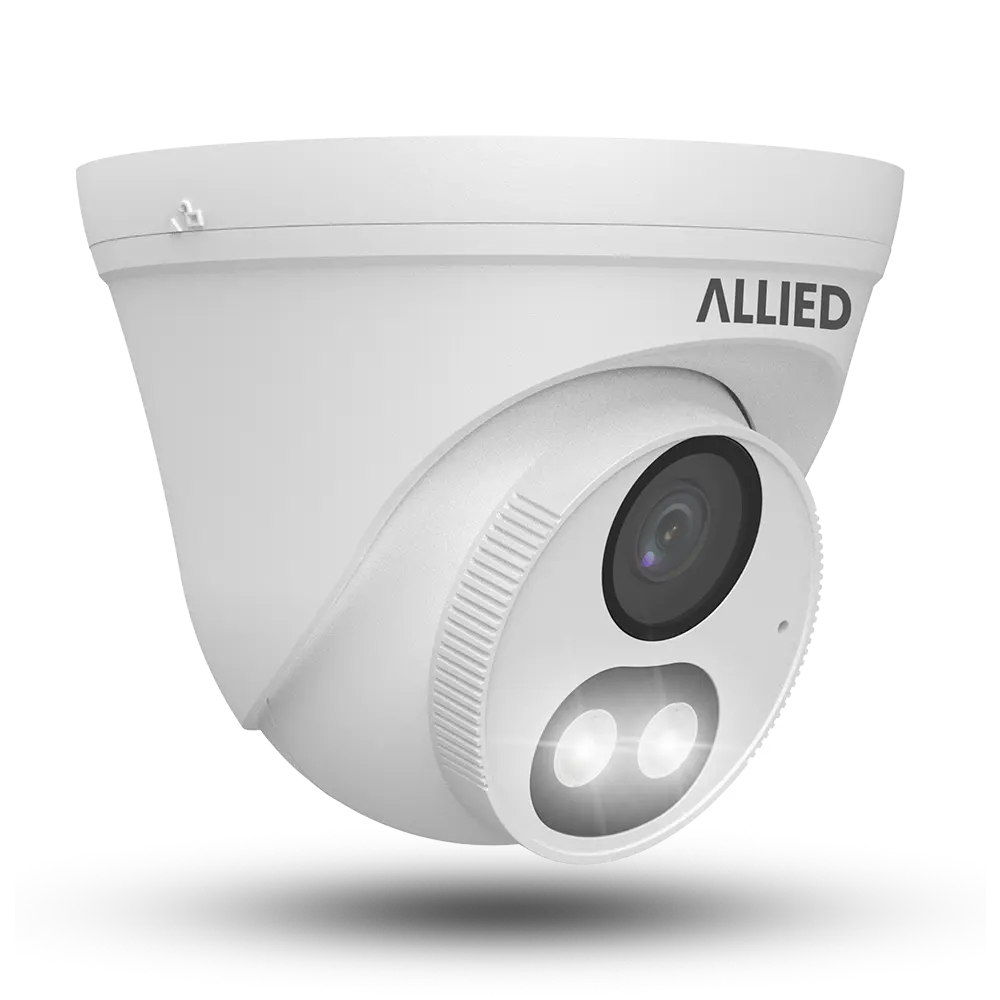

Allied 5MP Motion Dual Light Defender Camera – White
$150.26
Capture more identifying detail with a white 5MP turret camera featuring 110-degree coverage, recorder-controlled Smart Dual Light, 131-foot IR and white-light reach, built-in audio and an IP67 enclosure.
- Sharper 5MP Video with Flexible Night Modes
- Motion-Activated Light Adds Color and Deterrence
- Integrated Microphone Captures Nearby Sound
- White Finish Blends with Light Exterior Trim
- Weather-Ready TVI Upgrade for a DVR
Connection & Power
Wired Connection
DC Powered
Storage & Access
24/7 On-Site Storage
Access Anywhere
Deterrence Features
Spotlight
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 110° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
On this product
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
2,880 horizontal pixels at 110°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description
The white Allied 5MP Motion Dual Light Defender Camera is the detail-focused choice for homes and businesses that need a broad view without giving up useful image information. Its 1/2.7-inch sensor and 2.8mm fixed lens cover 110 degrees horizontally, making it well suited to entrances, driveways, side yards, retail counters, service doors and other areas where a narrower camera could miss activity at the edges.
At full 5MP resolution, the camera records 2592 x 1944 video at 20 frames per second in TVI or AHD mode; CVI supports 2880 x 1620 at 25 frames per second. It can also run at 4MP or 1080p at up to 30 frames per second when a project calls for a different balance of detail, motion smoothness and recorder capacity. The selected signal mode and frame rate must match the compatible DVR or XVR.
Allied’s Motion Dual Light Defender camera system uses compatible recorder analytics to decide when motion or a supported smart object should trigger the lighting change. The camera can rely on infrared for discreet routine coverage, then activate white light to restore color around the event. Both illumination systems reach up to 131 feet, while ColorHunter imaging helps retain more color detail when visible light is available.
A built-in microphone carries synchronized audio over the coax connection in supported TVI and CVI modes. DWDR, backlight compensation, highlight compensation and 2D noise reduction help manage headlights, doorway contrast and uneven exterior lighting. The white housing blends cleanly with light soffits and ceilings, and its IP67 protection, 4kV surge resistance and -22 to 140 degrees F operating range make it ready for demanding indoor or outdoor Texas installations.
Key Features
- White turret-camera finish
- 5MP high-resolution analog video
- 2592 x 1944 at 20 fps in TVI or AHD mode
- 2880 x 1620 at 25 fps in CVI mode
- 4MP and 1080p recording at up to 30 fps
- 1/2.7-inch CMOS image sensor
- 2.8mm fixed lens
- 110-degree horizontal, 57-degree vertical and 130-degree diagonal field of view
- ColorHunter low-light imaging
- Minimum illumination of 0.005 lux with AGC on
- Smart Dual Light operation in TVI mode with a compatible recorder
- Recorder-driven motion and smart-object lighting behavior
- Two infrared and two white-light illuminators
- Infrared and white-light reach up to 131 feet
- Infrared, white-light and dual-light modes
- Automatic IR-cut filter for day and night switching
- Built-in microphone with audio over coax
- TVI, AHD, CVI and CVBS switchable video output
- BNC wired video connection
- DWDR, backlight compensation and highlight compensation
- 2D digital noise reduction
- 180-degree horizontal and vertical image flip
- 12V DC power with maximum 3.5W consumption
- IP67 weather- and dust-resistant enclosure
- 4kV surge protection for power and video interfaces
- Operating range from -22 to 140 degrees F
- Approximate dimensions of 4.64 inches diameter by 3.80 inches high
- Approximate product weight of 0.53 pounds
- CE, FCC, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 5
- Field of View:
- 110°
- FPS:
- 20
- WDR:
- DWDR
- Sensor:
- 1/2.7"
- Lens Type:
- Fixed
- Night Vision:
- IR, Dual Light, Color Night Vision
- Night Viewing Range:
- 131ft
- Smart Features:
- Motion Detection, Smart Object Detection
- Audio Features:
- Audio Capture
- Deterrence Features:
- Spotlight
- Storage Type:
- DVR
- Connection Type:
- Wired
- Wired Connection Type:
- TVI
- Powered by:
- DC
- Compliance & Certifications:
- CE, FCC, NDAA Compliant, RoHS, WEEE
- Waterproof Rating:
- IP67
- Weight:
- 0.527 lbs
