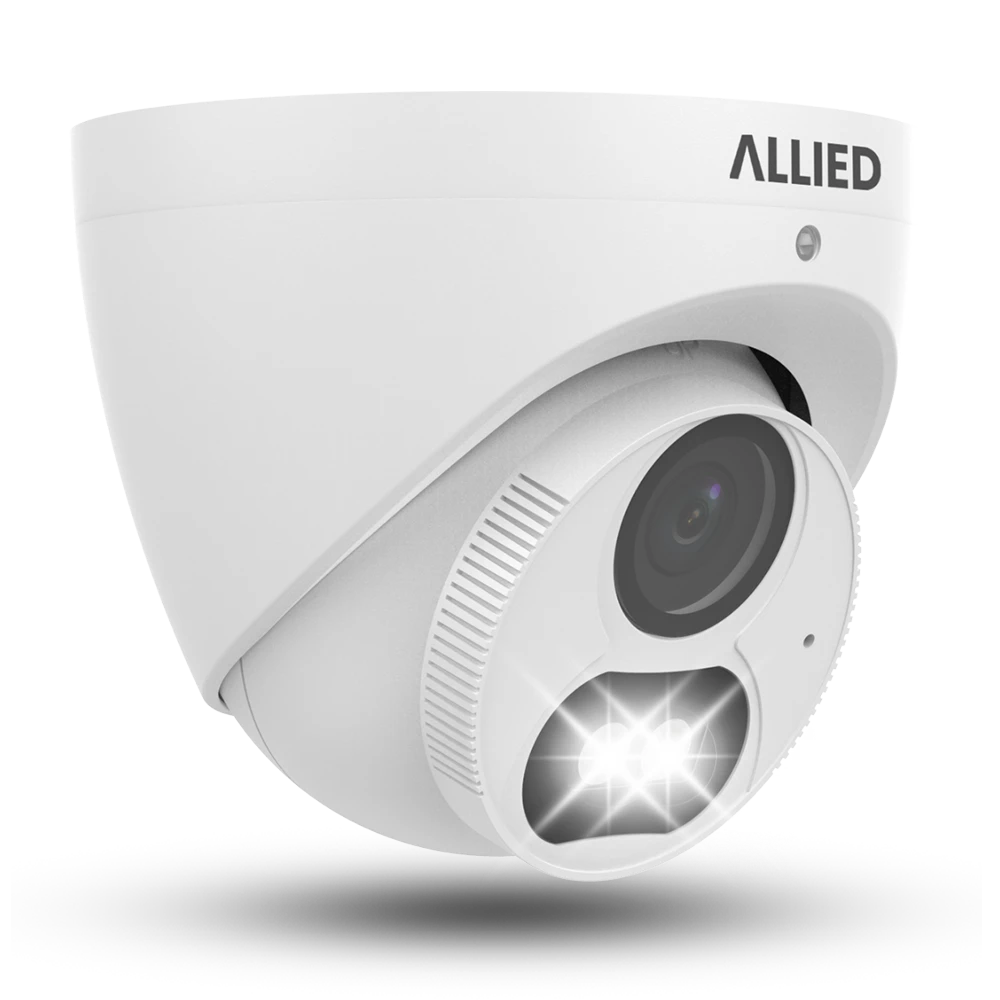

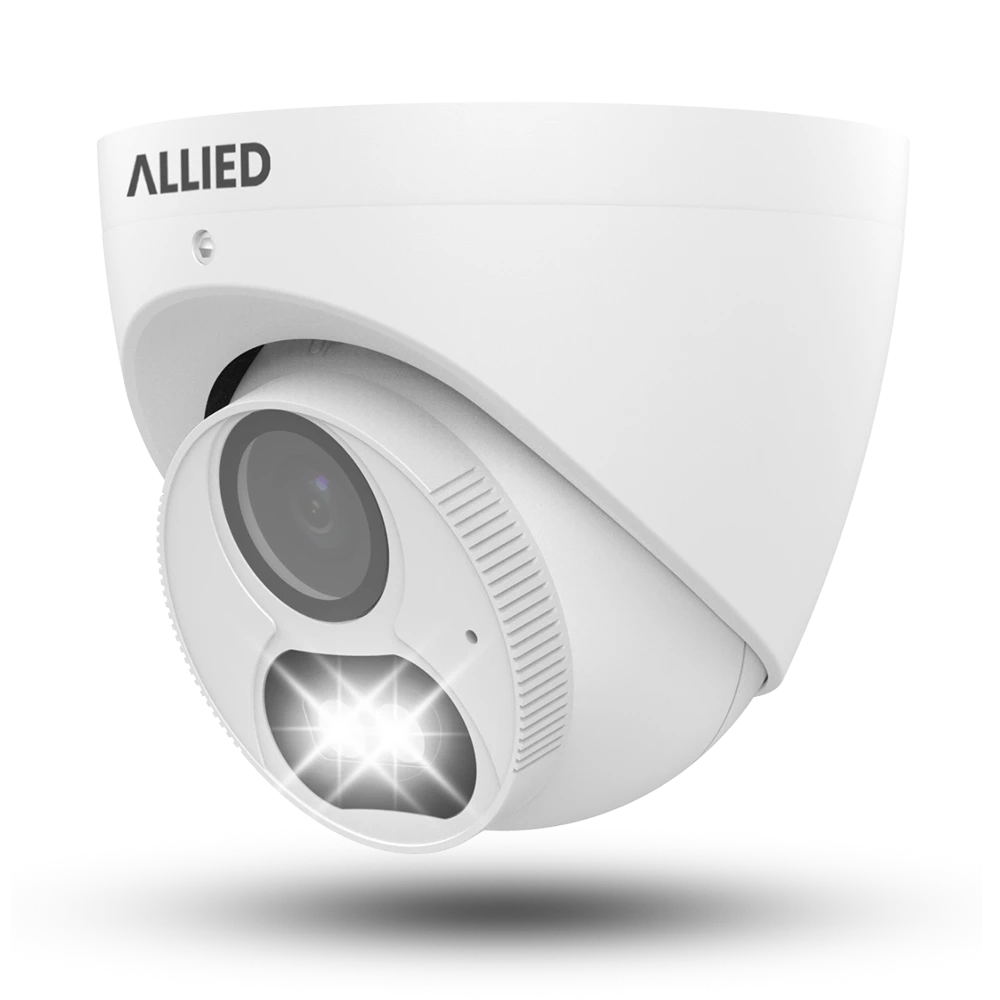

Allied 5MP Color Night Vision Defender Camera with Microphone
$155.25
Capture wider scenes with 5MP detail, a 111.5-degree view, 131-foot warm-light color night vision, built-in coax audio and IP67 weather protection.
- Sharper 5MP Detail for Existing DVR Systems
- Full-Color Night View with 131-Foot Reach
- Built-In Microphone Adds Recorded Audio
- A Clear Step Up from Standard 1080p
- IP67 Housing for Indoor or Outdoor Use
Connection & Power
Wired Connection
DC Powered
Storage & Access
24/7 On-Site Storage
Access Anywhere
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 111.5° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
On this product
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
2,880 horizontal pixels at 111.5°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description
When a wider scene needs more detail than standard 1080p can provide, the Allied 5MP Color Night Vision Defender Camera gives homes and businesses a stronger recording source for broad driveways, building approaches, sales floors, workshops and parking areas. Its 2.8mm lens captures a 111.5° horizontal view, while the 5MP sensor leaves more image information available when footage must be reviewed after an event.
At full TVI or AHD resolution, the camera records 2592 x 1944 video at 20 frames per second. CVI mode can deliver 2880 x 1620 at 25 frames per second, and compatible systems may use 4MP or 1080p at up to 30 frames per second when smoother motion or lower storage use is the better fit. That flexibility lets the camera match the capabilities and recording plan of the connected DVR or XVR.
Allied’s Color Night Vision Defender cameras are made to retain color after dark; this 5MP model pairs a 1/2.7-inch sensor and F1.4 aperture with two warm-white illuminators that reach up to 131 feet. Because those illuminators use visible light rather than infrared alone, the camera can produce full-color images even when the surrounding scene has no usable ambient light.
The built-in microphone carries audio over coax in supported TVI and CVI modes, and the BNC output switches among TVI, AHD, CVI and CVBS for broad recorder compatibility. A compatible recorder can add motion detection, smart-object filtering and video analytics. DWDR, 4kV surge protection, an IP67 enclosure and a -22 to 140 degrees F operating range round out a camera designed for reliable indoor or outdoor service.
Key Features
- 5MP high-resolution analog video
- 2592 x 1944 at 20 fps in TVI or AHD mode
- 2880 x 1620 at 25 fps in CVI mode
- 4MP and 1080p recording at up to 30 fps
- 1/2.7-inch CMOS image sensor
- Minimum illumination of 0.005 lux at F1.4 with AGC on
- Full-color viewing at 0 lux with the white lights on
- Two built-in warm-white illuminators
- Warm-light illumination distance up to 131 feet
- 2.8mm fixed lens
- 111.5-degree horizontal, 58.9-degree vertical and 134.8-degree diagonal field of view
- 24/7 color imaging
- Built-in microphone
- Synchronized audio over coax in supported TVI and CVI modes
- BNC video connection
- Switchable TVI, AHD, CVI and CVBS output
- Compatible DVR/XVR recording
- Recorder-driven motion detection, smart-object filtering and video analytics
- DWDR, backlight compensation and highlight compensation
- 2D digital noise reduction
- 180-degree horizontal and vertical image flip
- Three-axis turret adjustment
- 12V DC power with maximum 3.28W consumption
- IP67 weather- and dust-resistant enclosure
- 4kV surge protection for power and video interfaces
- Operating range from -22 to 140 degrees F
- Approximate dimensions of 4.37 inches diameter by 3.78 inches high
- Approximate product weight of 0.79 pounds
- NDAA compliant
Full Specifications
- Megapixels:
- 5
- Field of View:
- 111.5°
- FPS:
- 30
- WDR:
- DWDR
- Sensor:
- 1/2.7"
- Lens Type:
- Fixed
- Night Vision:
- Color Night Vision
- Night Viewing Range:
- 131ft
- Smart Features:
- Motion Detection, Smart Object Detection, Video Analytics
- Audio Features:
- Audio Capture
- Storage Type:
- DVR
- Connection Type:
- Wired
- Wired Connection Type:
- TVI
- Powered by:
- DC
- Compliance & Certifications:
- NDAA Compliant
- Waterproof Rating:
- IP67
- Weight:
- 0.785 lbs
