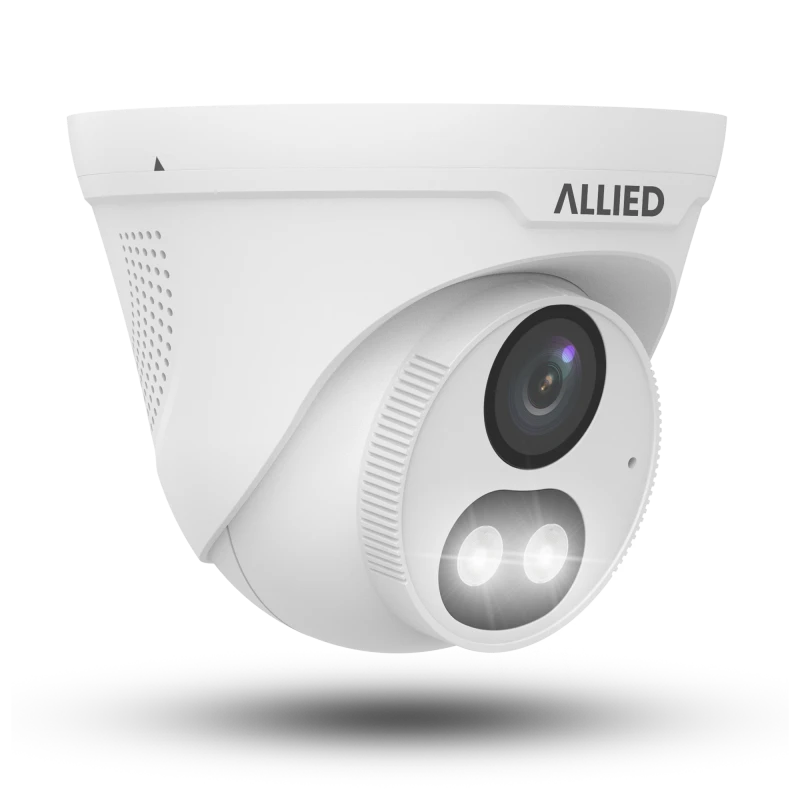

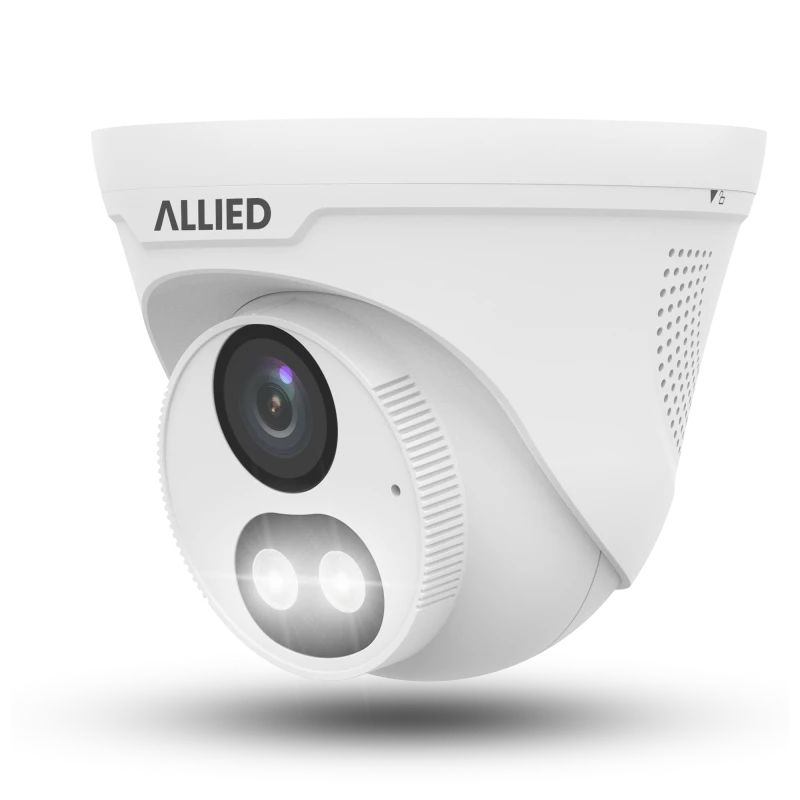

Allied 2MP Two-Way Audio Active Deterrence TVI Camera
$133.65
See, hear, speak and deter from one compact turret camera with 1080p video, built-in two-way audio, up to 131 feet of IR and white-light illumination, and IP67 weather protection for compatible TVI DVR systems.
- Talk and Listen Through the Camera
- Light and Audio Deterrence Respond in Real Time
- Dual-Light Night Coverage up to 131 Feet
- Affordable Active Protection for Existing DVRs
- IP67 Housing for Texas Weather
Connection & Power
Wired Connection
DC Powered
Storage & Access
24/7 On-Site Storage
Access Anywhere
Deterrence Features
Audio Deterrence
Spotlight
Deterrence Lights
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 96.5° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
On this product
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
1,920 horizontal pixels at 96.5°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description
The Allied 2MP Two-Way Audio Active Deterrence TVI Camera adds an active response to everyday surveillance. Its 2.8mm fixed lens records 1080p video at up to 30 frames per second and covers a wide 96.5-degree horizontal view, making it well suited for entrances, driveways, front counters, hallways and work areas. A built-in microphone and speaker let a compatible system capture sound and support real-time conversation through the same coax-based camera connection.
After dark, the camera can use infrared, white light or dual-light operation, with both illuminators reaching up to 131 feet. When paired with a supported Q4-series XVR in TVI 1080p mode, the white light and built-in speaker can provide visible and audible warnings as well as two-way communication. This gives a property owner the ability to address a visitor, guide an employee or call attention to unwanted activity instead of only reviewing footage afterward.
Image controls include DWDR, backlight compensation, highlight compensation and 2D/3D noise reduction to help preserve useful detail in uneven lighting. The camera can also switch among TVI, AHD, CVI and CVBS output formats for broader analog-system compatibility. The advanced audio and deterrence functions depend on a compatible Q4-series recorder with current firmware, so Allied Home Security matches the camera and recorder as one complete system rather than leaving compatibility to chance.
For homes and businesses that already have coax cabling, this camera gives Allied Home Security’s professionally installed video surveillance systems a practical upgrade path without replacing every cable. Its IP67 enclosure, 4kV surge protection and -22 to 140 degrees F operating range support dependable indoor or outdoor placement, while the compact turret design keeps the finished installation clean and unobtrusive.
Key Features
- 2MP 1080p video resolution
- Up to 30 frames per second at 1080p
- 2.8mm fixed lens
- 96.5-degree horizontal, 54.5-degree vertical and 109.5-degree diagonal field of view
- Built-in microphone and built-in speaker
- Two-way audio with a compatible Q4-series XVR in TVI 1080p mode
- Visible and audible active deterrence with a compatible Q4-series XVR
- Infrared and white-light illumination up to 131 feet
- Infrared, white-light and dual-light operating modes
- Automatic IR-cut filter for day/night switching
- ColorHunter low-light imaging
- Minimum illumination down to 0.003 lux with AGC on
- DWDR, backlight compensation and highlight compensation
- 2D and 3D digital noise reduction
- TVI, AHD, CVI and CVBS switchable analog output
- BNC video connection
- 180-degree horizontal and vertical image flip
- 12V DC power with maximum 3.4W consumption
- IP67 weather- and dust-resistant enclosure
- 4kV surge protection for power and video interfaces
- Operating range from -22 to 140 degrees F
- Corner, pole, wall and pendant mounting support with compatible accessories
- Approximate dimensions of 4.64 inches diameter by 3.80 inches high
- Approximate product weight of 0.57 pounds
- CE, FCC, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 2
- Resolution:
- 1080p
- Field of View:
- 96.5°
- FPS:
- 30
- WDR:
- DWDR
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- IR, Dual Light, Color Night Vision
- Night Viewing Range:
- 131ft
- Smart Features:
- Active Deterrence
- Audio Features:
- 2-Way Audio, Audio Capture
- Deterrence Features:
- Audio, Deterrence Lights, Spotlight
- Storage Type:
- DVR
- Connection Type:
- Wired
- Wired Connection Type:
- TVI
- Powered by:
- DC
- Compliance & Certifications:
- CE, FCC, NDAA Compliant, RoHS, WEEE
- Waterproof Rating:
- IP67
- Weight:
- 0.564 lbs
