Allied 2MP Motion Dual Light Defender Camera – Black
$99.90
Keep the hardware discreet until its light is needed with a black turret camera offering 1080p video, recorder-driven Smart Dual Light, a 100.9-degree view, 131-foot illumination, built-in audio and IP67 protection.
- Motion-Activated Spotlight for Added Deterrence
- IR Night Vision with Color When the Light Turns On
- Listen Back with an Integrated Microphone
- Black Housing Blends into Dark Exteriors
- Affordable 1080p TVI Upgrade
Connection & Power
Wired Connection
DC Powered
Storage & Access
24/7 On-Site Storage
Access Anywhere
Deterrence Features
Spotlight
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
1,920 horizontal pixels at 100.9°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description

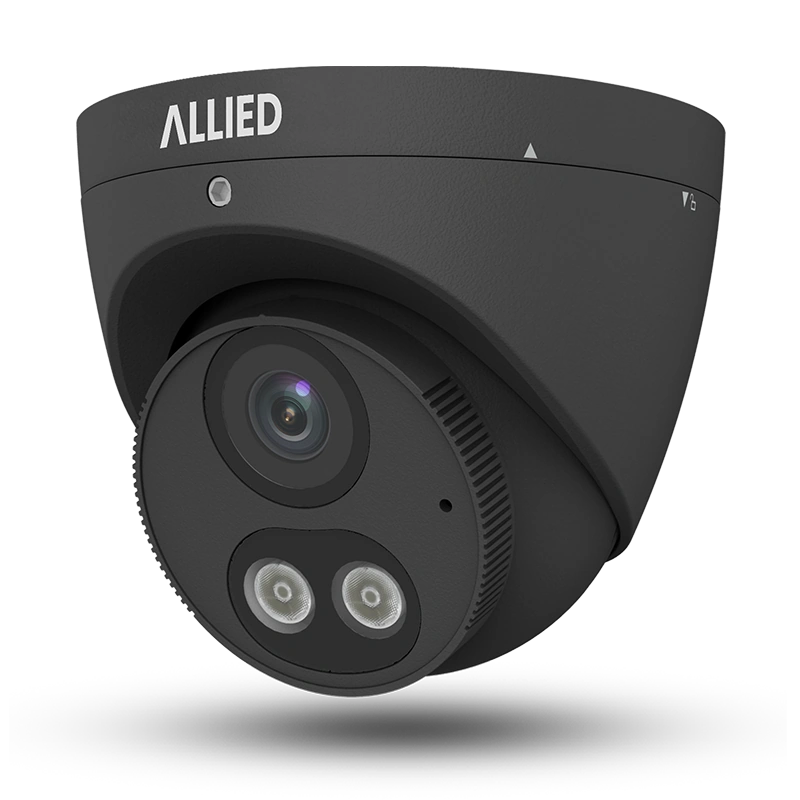

The black Allied 2MP Motion Dual Light Defender Camera is built for locations where the camera should stay visually quiet until its light is needed. Its dark turret housing suits black soffits, exposed beams, storefronts, warehouses and modern interiors, while the 2.8mm lens provides a wide 100.9-degree horizontal view for entrances, vehicle approaches and open work areas.

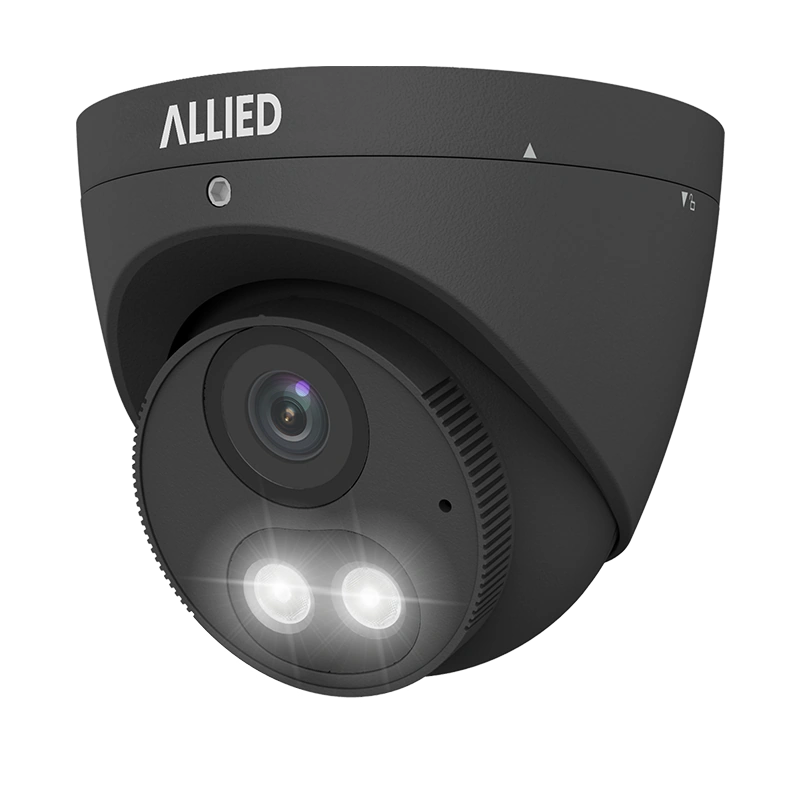

The camera records 1080p video at up to 30 frames per second and uses ColorHunter processing to preserve useful color detail when visible light is present. In low light, its IR illuminators can watch up to 131 feet without a bright glow across the scene. When a compatible UNV XVR detects a target, Smart Dual Light can switch to white illumination for color footage around the activity, then return to infrared when the event clears.
Allied Home Security configures the recorder-driven detection behind the Motion Dual Light Defender so the lighting response fits the protected area instead of reacting without context. The camera documentation supports smart dual light in TVI mode; motion and smart-object decisions come from the compatible DVR/XVR, not from a separate onboard analytics engine.
A built-in microphone carries synchronized audio over coax, helping recorded video answer more than what happened visually. The BNC output can be switched among TVI, AHD, CVI and CVBS for broader analog compatibility, and DWDR, BLC, HLC and 2D/3D noise reduction help stabilize difficult lighting. With IP67 protection, 4kV surge resistance and operation from -22 to 140 degrees F, the black version is ready for discreet indoor or outdoor installation.
Key Features
- Black turret-camera finish for discreet placement
- 2MP 1080p video resolution
- Up to 30 frames per second at 1080p
- 2.8mm fixed lens
- 100.9-degree horizontal, 56.5-degree vertical and 121.8-degree diagonal field of view
- ColorHunter low-light imaging
- Smart Dual Light with a compatible UNV XVR in TVI mode
- Recorder-driven motion and smart-object light behavior
- Infrared and white-light illumination up to 131 feet
- Infrared, white-light and dual-light operating modes
- Automatic IR-cut filter for day/night switching
- Built-in microphone
- Synchronized audio transmission over coax
- TVI and CVI audio at 1080p
- TVI, AHD, CVI and CVBS switchable analog output
- BNC video connection
- Minimum illumination down to 0.003 lux with AGC on
- DWDR, backlight compensation and highlight compensation
- 2D and 3D digital noise reduction
- 180-degree horizontal and vertical image flip
- 12V DC power with maximum 3.6W consumption
- IP67 weather- and dust-resistant enclosure
- 4kV surge protection for power and video interfaces
- Operating range from -22 to 140 degrees F
- Corner, pole, wall and pendant mounting support with compatible accessories
- Approximate dimensions of 4.64 inches diameter by 3.80 inches high
- Approximate product weight of 0.53 pounds
- CE, FCC, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 2
- Resolution:
- 1080p
- Field of View:
- 100.9°
- FPS:
- 30
- WDR:
- DWDR
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- IR, Dual Light
- Night Viewing Range:
- 131ft
- Smart Features:
- Motion Detection, Smart Object Detection
- Audio Features:
- Audio Capture
- Deterrence Features:
- Spotlight
- Storage Type:
- DVR
- Connection Type:
- Wired
- Wired Connection Type:
- TVI
- Powered by:
- DC
- Compliance & Certifications:
- CE, FCC, NDAA Compliant, RoHS, WEEE
- Waterproof Rating:
- IP67
- Weight:
- 0.527 lbs
