Uniview IPC9312LFW-AF28-2X4 Dual-Lens 2MP 4x Tracking PTZ Camera
$904.49
Keep a fixed overview while the 4x optical-zoom PTZ channel follows activity. Dual 1080p views, two-way audio and infrared illumination cover more than a single fixed viewpoint.
- Fixed overview plus a separate tracking view
- 4x optical zoom on the PTZ detail channel
- Talk through the built-in speaker and microphones
- Detail-channel infrared viewing up to 164 feet
- PoE+ powers both camera views through one connection
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
A football field is 300 feet from goal line to goal line. The far end zone extends this comparison to 330 feet.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description

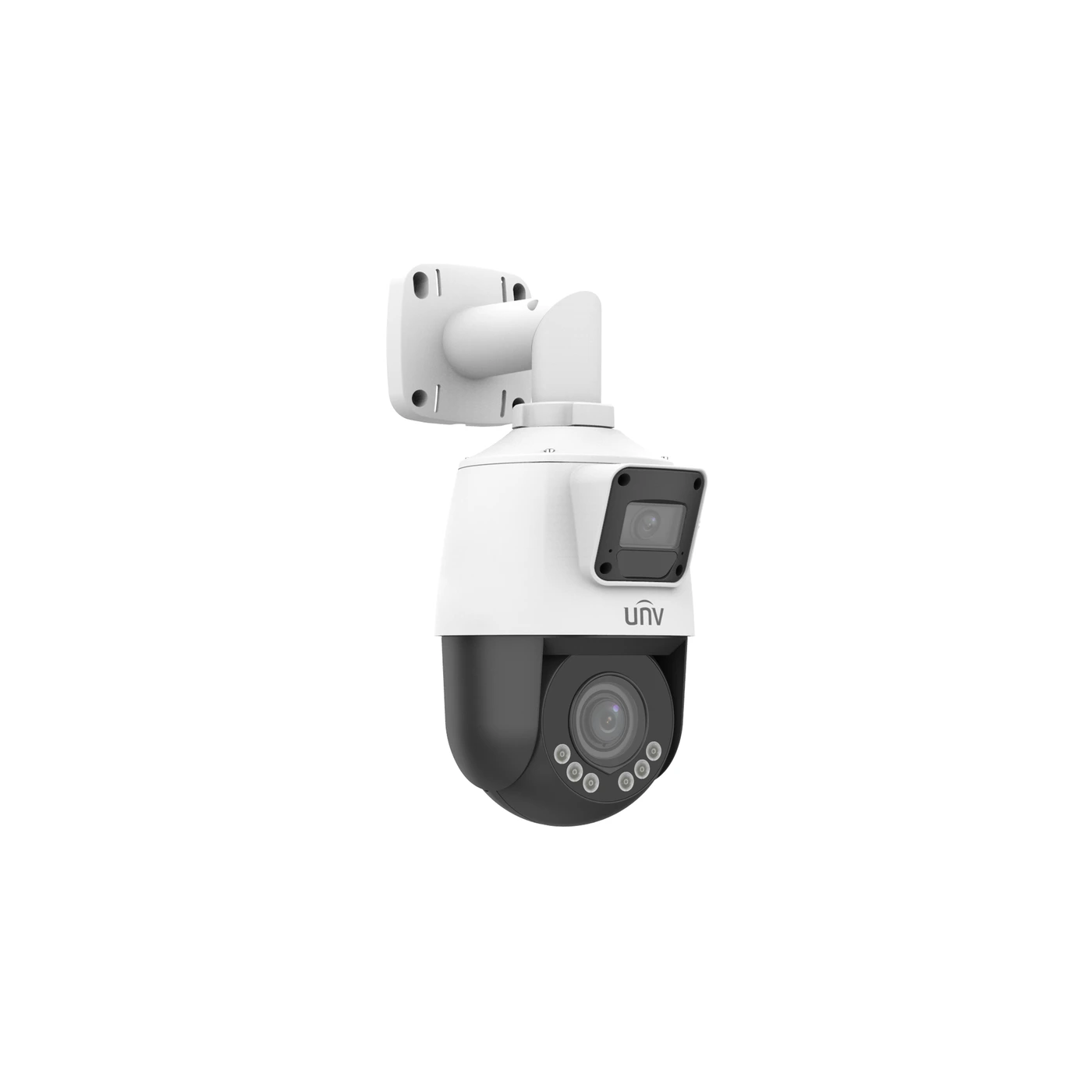

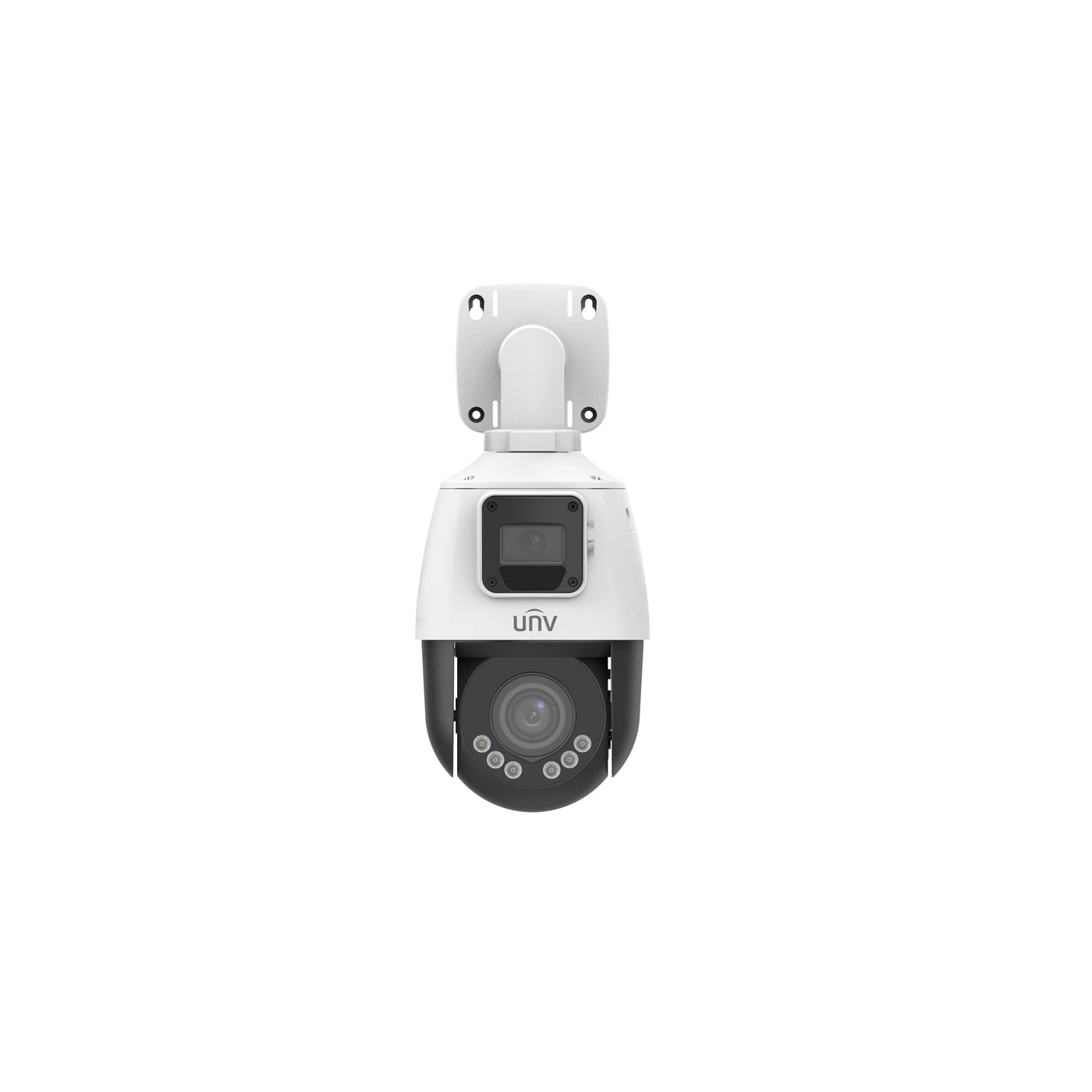

The Uniview IPC9312LFW-AF28-2X4 combines a fixed overview camera with a separate motorized detail camera. Each channel delivers 2MP 1080p video at up to 25 fps. The overview keeps the wider scene in view while the detail channel uses a 4x optical zoom and linked tracking to follow activity.
Built-in microphones and a speaker support two-way communication. The detail camera provides infrared illumination up to 164 feet and warm light up to 33 feet; the overview channel has IR coverage up to 33 feet. A 345-degree pan range, IP66 protection and a microSD slot supporting up to 512GB provide flexible installation and recording options. Power it with compatible PoE+ equipment or a 12V DC supply.
Key Features
- Two independent 2MP channels; 1920 x 1080 at up to 25 fps each
- Overview: fixed 2.8mm lens; 102.4-degree horizontal FOV
- Detail: 2.8-12mm motorized lens, 4x optical zoom; horizontal FOV 106.6 to 30.6 degrees
- 1/2.8-inch CMOS sensors; 120 dB WDR
- Overview IR 10m; detail IR 50m and warm light 10m
- Detail pan 0 to 345 degrees; tilt -10 to 100 degrees
- Built-in dual microphones and speaker; two-way audio
- MicroSD up to 512GB; ONVIF profiles S, G and M
- 12V DC or IEEE 802.3at PoE+; maximum 16W; IP66
- Wall configuration: 192 x 134 x 302mm (L x W x H); net weight 1.03kg
Full Specifications
- Megapixels:
- 2
- Resolution:
- 1080p
- Field of View:
- 102.4° / 106.6° – 30.6°
- FPS:
- 25
- WDR:
- 120 dB
- Sensor:
- 1/2.8"
- Lens Type:
- Motorized
- Optical Zoom:
- 4X
- PTZ Pan Range:
- 0° to 345°
- PTZ Tilt Range:
- -10° to 100°
- Night Vision:
- Dual Light
- Night Viewing Range:
- 164ft
- Smart Features:
- Auto Tracking, Enter/Leave Area Detection, Human Body Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm, Vehicle Detection
- Audio Features:
- 2-Way Audio, Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP66
- Product Color:
- White
- Weight:
- 2.271 lbs
- Dimensions:
- 7.56 × 5.28 × 11.89 in
Night-viewing distances describe illumination reach, not guaranteed identification. Actual results depend on lighting, mounting, scene conditions and recording settings. Storage media is sold separately.
