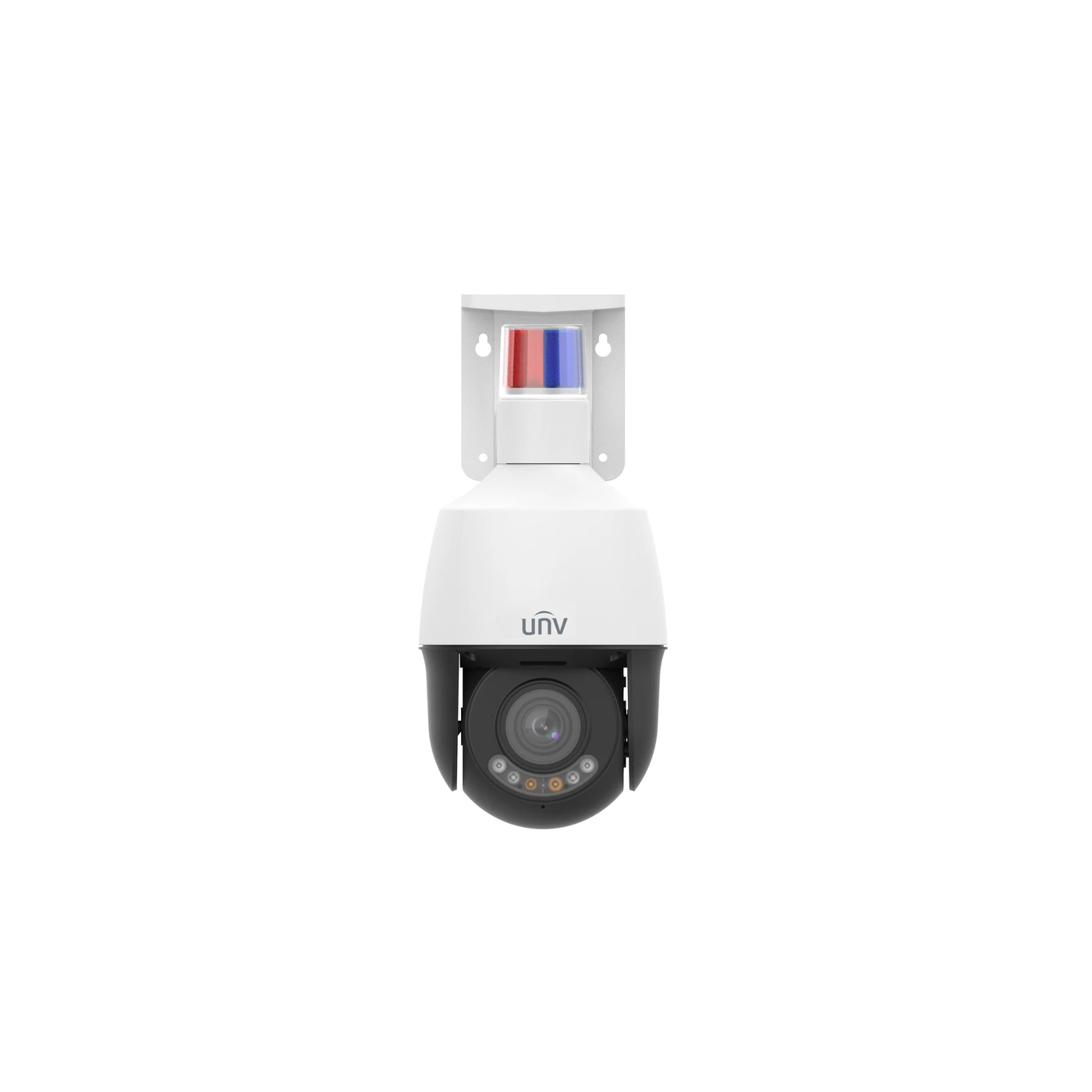

Uniview IPC6315LFW-AX5C-VG1 5MP 5x Dual-Light Mini PTZ Camera
$436.39
Combine human auto tracking, 5x optical zoom and built-in two-way audio in a lightweight IP66 mini PTZ.
- 5x Optical Zoom
- Human Auto Tracking
- Built-In Two-Way Audio
- 50 m IR and 15 m Warm Light
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
A football field is 300 feet from goal line to goal line. The far end zone extends this comparison to 330 feet.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC6315LFW-AX5C-VG1 records 5MP video at up to 30 fps through a 2.7-13.5 mm lens with 5x optical zoom. It can pan through 345 degrees and tilt from -10 to 100 degrees, with human-target auto tracking and line-crossing or intrusion detection.
Its infrared and warm-light illuminators are rated to 50 m and 15 m respectively. A built-in microphone and speaker allow two-way conversations, while 120 dB WDR supports scenes with uneven lighting. The 788 g camera has IP66 protection, accepts microSD cards up to 512 GB, and runs from 12 V DC or 802.3at PoE.
Key Features
- 5MP: 2880 x 1620 at up to 30 fps; dual video streams
- 2.7-13.5 mm F1.6 lens; 5x optical zoom
- Horizontal FOV 106.91 to 33.55 degrees
- Pan 0-345 degrees; tilt -10 to 100 degrees
- Human-only auto tracking; human/vehicle filtering for line-crossing and intrusion detection
- IR illumination up to 50 m; warm light up to 15 m; 120 dB WDR
- Built-in microphone and speaker; audio I/O 1/1; alarm I/O 1/1
- MicroSD up to 512 GB; ANR and NFS NAS
- 12 V DC or IEEE 802.3at PoE; 18.9 W; IP66
- Net camera weight 788 g
Full Specifications
- Megapixels:
- 5
- Resolution:
- 2880 x 1620
- Field of View:
- 106.91° – 33.55°
- FPS:
- 30
- WDR:
- 120 dB
- Lens Type:
- Motorized
- Optical Zoom:
- 5X
- PTZ Pan Range:
- 0° to 345°
- PTZ Tilt Range:
- -10° to 100°
- Night Vision:
- Dual Light
- Night Viewing Range:
- 164ft (IR); 49ft (Warm Light)
- Smart Features:
- Human Auto Tracking, Intrusion Detection, Line Crossing Detection
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP66
- Weight:
- 1.737 lbs
- Dimensions:
- 5.24 × 7.28 × 11.26 in
