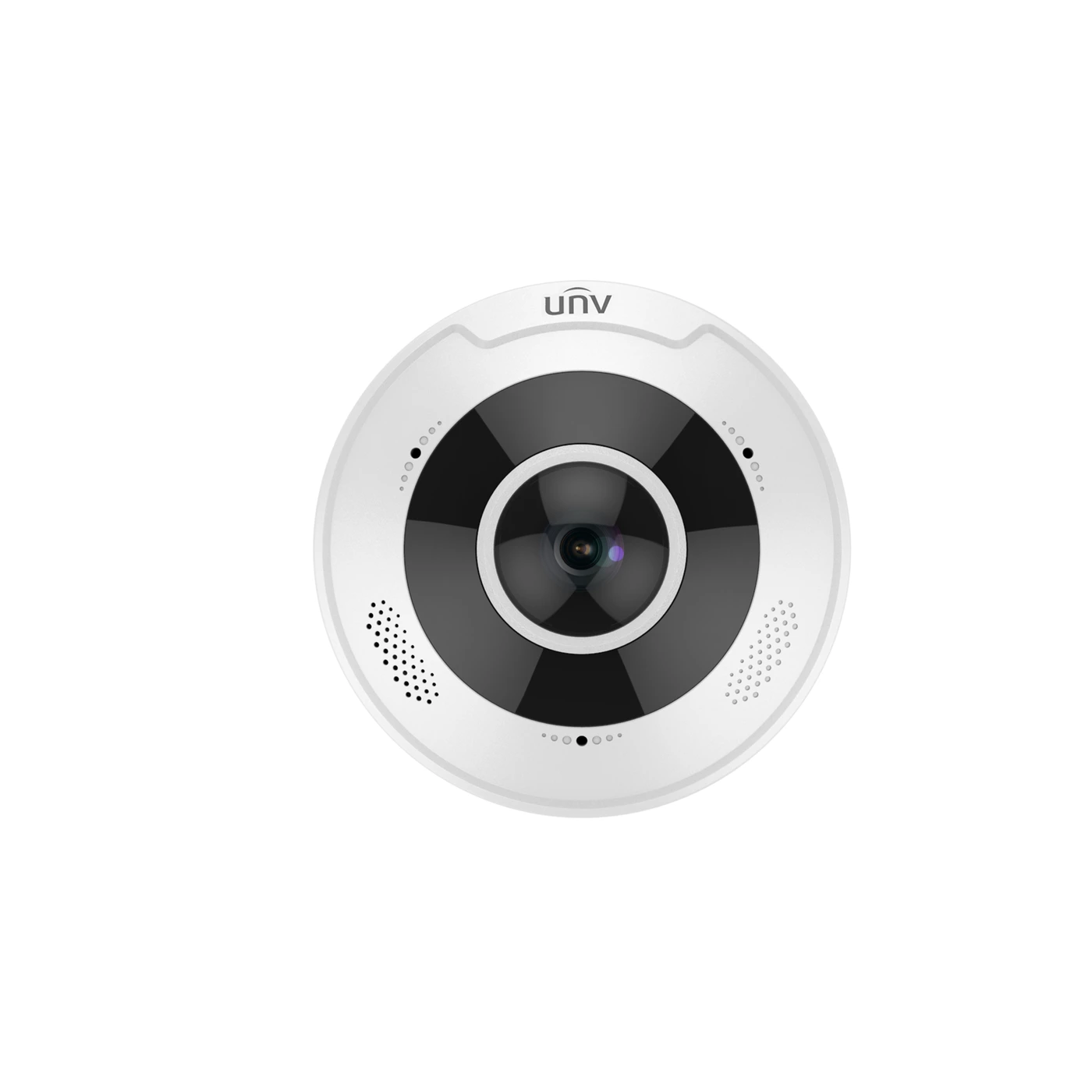

Uniview IPC86CEB-AF18KC-I0 12MP Panoramic IR Fisheye Camera
$1,146.09
Capture a 12MP fisheye overview and use supported panoramic or virtual PTZ views to inspect different parts of the scene.
- 12MP Fisheye Overview
- Panoramic and Virtual PTZ Views
- Built-In Two-Way Audio
- 15 m Infrared Illumination
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 180° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description
The IPC86CEB-AF18KC-I0 captures 4000 x 3000 video at up to 20 fps through a 1.8 mm fisheye lens. Supported display layouts include fisheye, panoramic and virtual PTZ views, with layouts varying by mounting orientation and decoding method. These views let an operator examine parts of the scene without physically moving the camera.
A built-in speaker and dual microphones provide two-way audio. Infrared illumination is rated to 15 m, with a 512 GB microSD limit for local storage. The IP67/IK10 housing suits exposed or accessible positions, while heat-map analysis is available when used with a supporting management platform.
Key Features
- 12MP fisheye stream: 4000 x 3000 at up to 20 fps
- 1/1.7-inch CMOS; 1.8 mm F2.0 fixed lens
- Horizontal and vertical FOV: 180 degrees each
- Virtual PTZ and panoramic display layouts; no mechanical PTZ or optical zoom
- IR illumination up to 15 m; digital WDR
- Built-in dual microphones and speaker; audio I/O 1/1
- Alarm I/O 2/1; RS485 and BNC output
- MicroSD up to 512 GB; ANR and NFS NAS
- Cross-line and intrusion detection; heat map requires management platform
- IP67 and IK10; maximum 12 W
Full Specifications
- Megapixels:
- 12
- Resolution:
- 4000 x 3000
- Field of View:
- 180°
- FPS:
- 20
- WDR:
- DWDR
- Sensor:
- 1/1.7"
- Lens Type:
- Fixed
- Night Vision:
- IR
- Night Viewing Range:
- 49ft
- Smart Features:
- Intrusion Detection, Line Crossing Detection
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Microphones:
- 2
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.155 lbs
- Dimensions:
- 5.87 × 5.87 × 2.17 in
