Uniview IPC815SB-ADF14K-I0 5MP Panoramic IR Fisheye Camera
$451.49
Monitor a wide area from a low-profile fisheye camera with 5MP video, dual microphones and 10 m infrared illumination.
- 180-by-180-Degree Fisheye View
- 5MP at 30 fps
- Low-Profile Housing
- Dual Microphones
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 180° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description

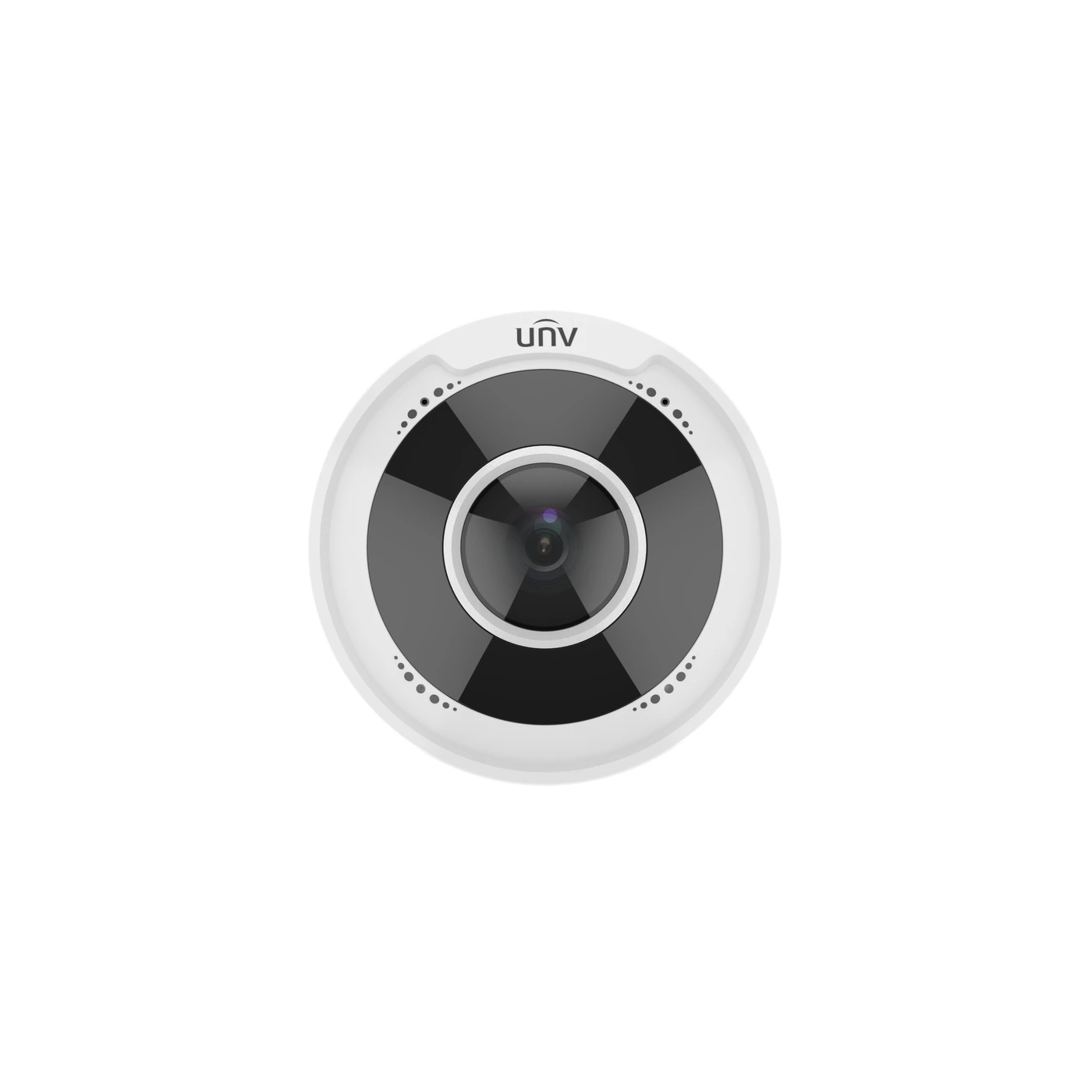

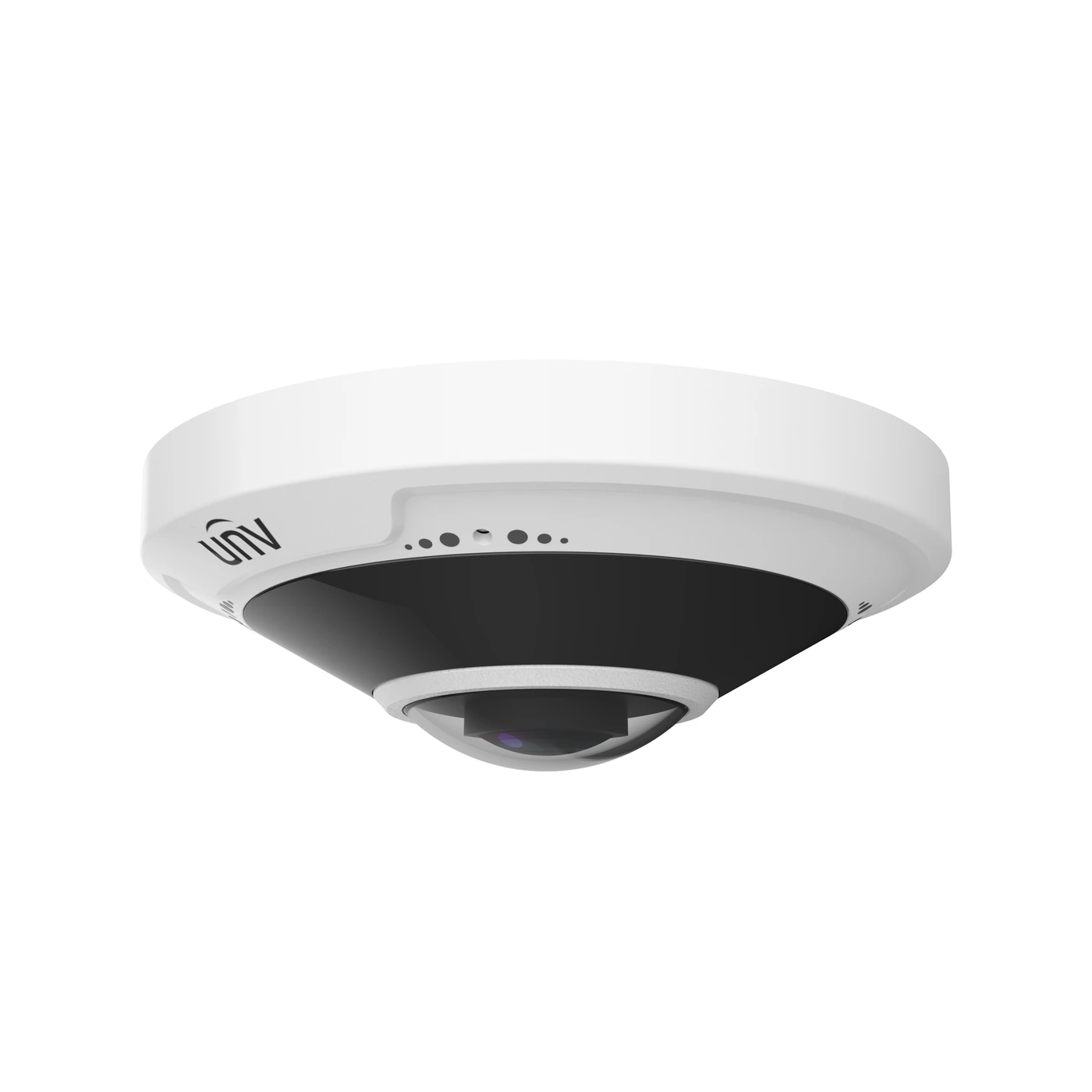

The IPC815SB-ADF14K-I0 pairs a 1.4 mm fisheye lens with a 5MP sensor to capture a broad scene from a shallow, 43.7 mm-high housing. The lens covers 180 degrees horizontally and vertically, while the main stream records 2592 x 1944 at up to 30 fps.
Dual microphones and audio input/output support sound capture and an external audio system; the camera does not contain a speaker. Infrared illumination reaches 10 m, and 120 dB WDR helps with backlit areas. IP66 and IK10 protection, PoE power and a microSD slot up to 512 GB round out the installation options.
Key Features
- 5MP: 2592 x 1944 at up to 30 fps
- 1/2.8-inch CMOS; 1.4 mm F2.0 fixed fisheye lens
- Horizontal and vertical FOV: 180 degrees each
- IR illumination up to 10 m; 120 dB WDR
- Built-in dual microphones; audio I/O 1/1; alarm I/O 1/1
- Two-way audio supported through external speaker; no built-in speaker
- MicroSD up to 512 GB; ANR and NFS NAS
- IP66 weather resistance and IK10 vandal resistance
- 12 V DC or 802.3af PoE; maximum 8.5 W
Full Specifications
- Megapixels:
- 5
- Resolution:
- 2592 x 1944
- Field of View:
- 180°
- FPS:
- 30
- WDR:
- 120 dB
- Sensor:
- 1/2.8"
- Lens Type:
- Fixed
- Night Vision:
- IR
- Night Viewing Range:
- 33ft
- Audio Features:
- 2-Way Audio (External Speaker Required), Audio Capture
- Microphones:
- 2
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP66
- Weight:
- 0.794 lbs
- Dimensions:
- 4.92 × 4.92 × 1.72 in
