Uniview IPC3K28SE-ADF28KMC-DL-I0 8MP 180-Degree Dual-Light Panoramic Turret Camera
$496.79
See a stitched 180-degree panorama and respond with two-way audio and red/blue warning lights from one dual-lens turret.
- Stitched 180-Degree Panorama
- 30 m IR and Warm Light
- Red/Blue Warning Lights
- Built-In Two-Way Audio
Storage & Access
Up to 512GB MicroSD
ONVIF Compatible
Deterrence Features
Audio Deterrence
Deterrence Lights
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 180° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description

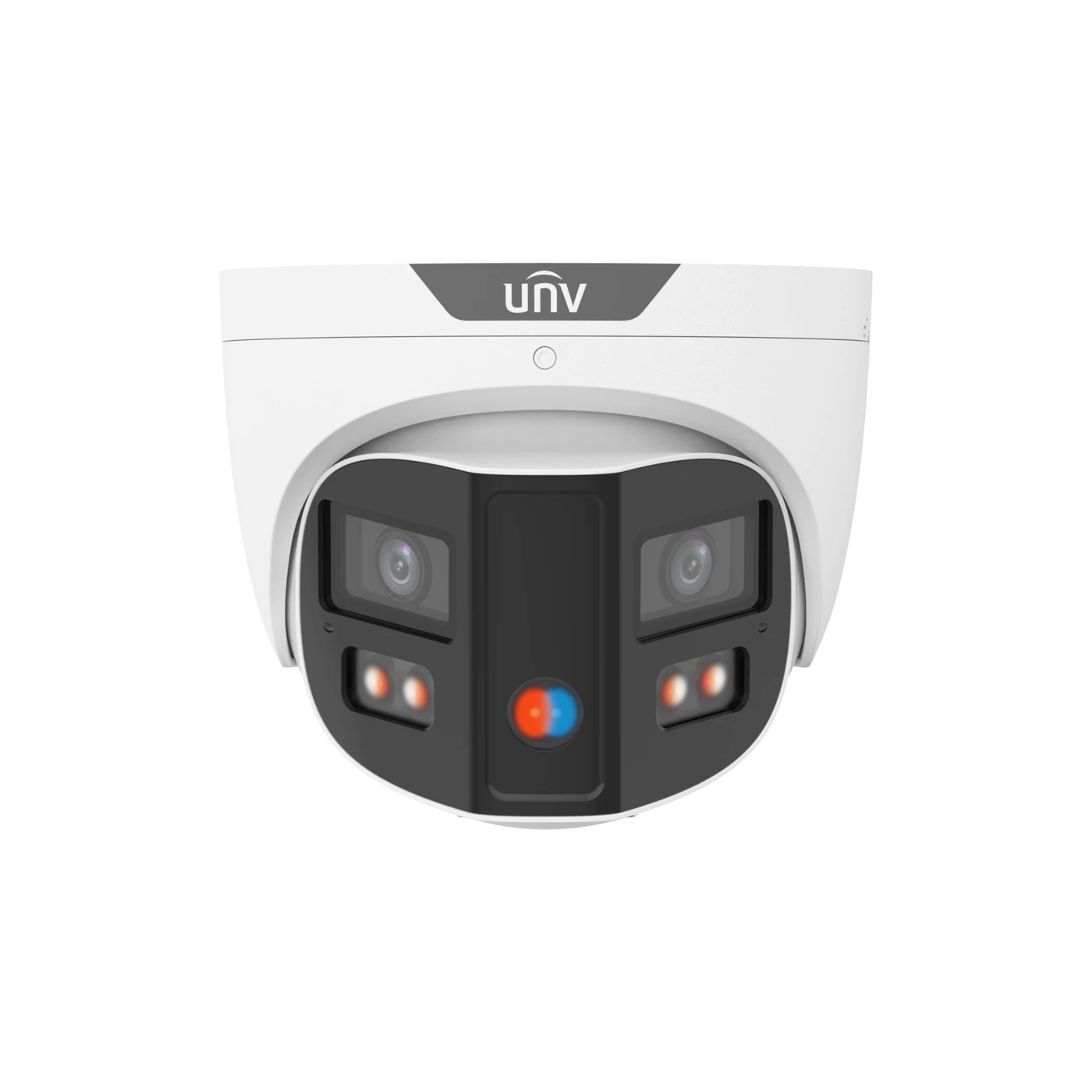

Two lenses in the IPC3K28SE-ADF28KMC-DL-I0 are stitched into one 180-degree horizontal view. Its 4096 x 1860 stream runs at up to 20 fps, combining a wide scene with a 65-degree vertical view. A bright F1.0 lens specification and 130 dB WDR support difficult lighting conditions.
The camera combines infrared and warm illumination, each rated to 30 m, with red/blue warning lights, dual microphones and a speaker. Target-classifying intrusion detection helps focus alerts on people and vehicles. IP67/IK10 protection, 802.3af PoE and microSD support up to 512 GB make it a compact option for wide-angle monitoring with on-site response.
Key Features
- 8MP-class stitched panoramic output: 4096 x 1860 at up to 20 fps
- Dual-lens splicing; 180 degrees horizontal and 65 degrees vertical FOV
- 1/2.5-inch CMOS specification; 2.8 mm F1.0 fixed lens specification
- IR and warm-light illumination each up to 30 m
- 130 dB WDR; auto scene match for WDR
- Built-in dual microphones and speaker; red/blue warning lights
- Audio I/O 1/1; alarm I/O 1/1
- Human, vehicle and non-motor-vehicle classification; SIP with color retrieval
- MicroSD up to 512 GB; ANR and NFS NAS
- IP67 and IK10; maximum 12.6 W
Full Specifications
- Megapixels:
- 8
- Resolution:
- 4096 x 1860
- Field of View:
- 180°
- FPS:
- 20
- WDR:
- 130 dB
- Sensor:
- 1/2.5"
- Lens Type:
- Fixed
- Night Vision:
- Dual Light
- Night Viewing Range:
- 98ft
- Smart Features:
- Human Body Detection, Intelligent people flow counting, Intrusion Detection, Line Crossing Detection, Vehicle Detection
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Deterrence Features:
- Audio, Deterrence Lights
- Microphones:
- 2
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.896 lbs
- Dimensions:
- 5.07 × 5.07 × 4.33 in
