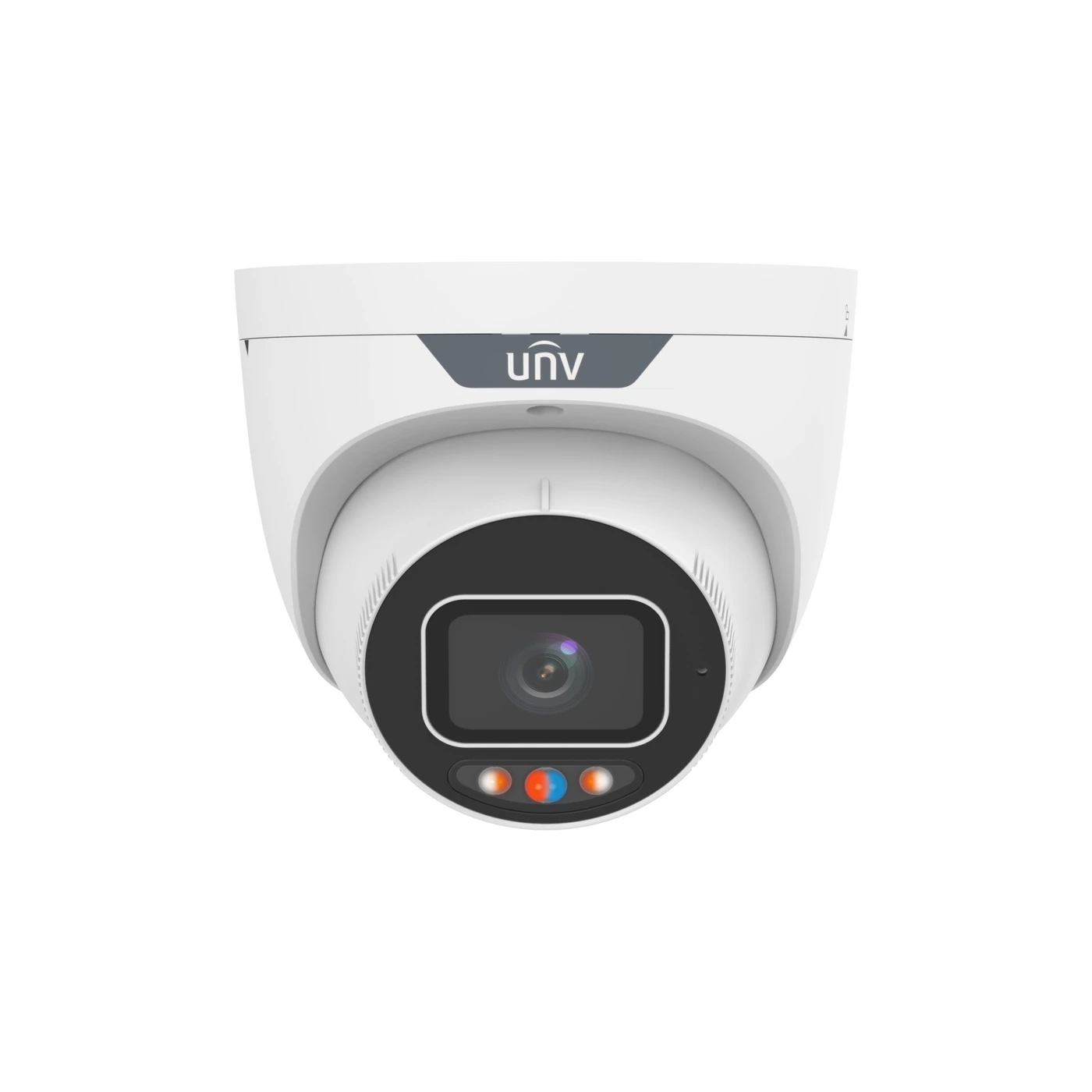

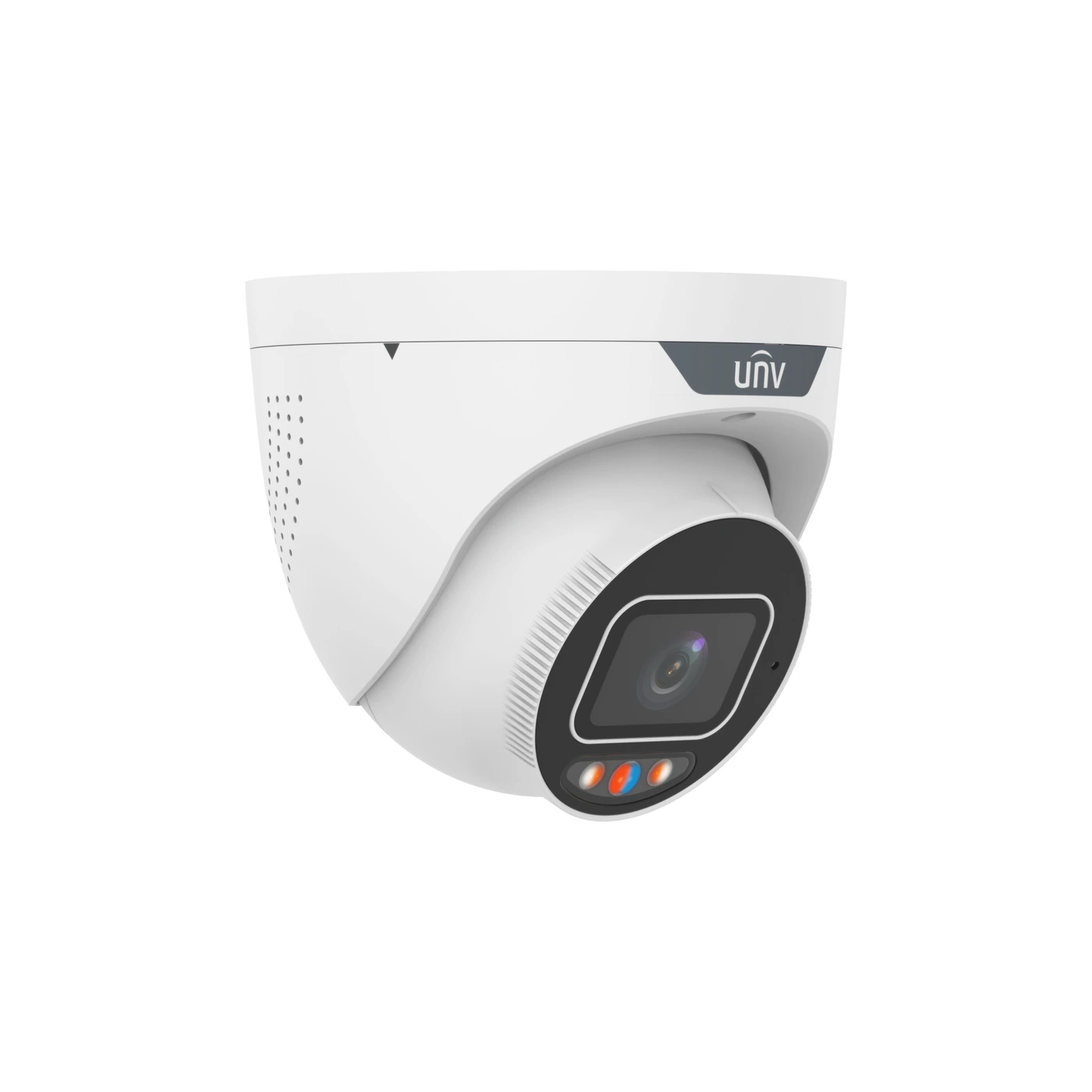

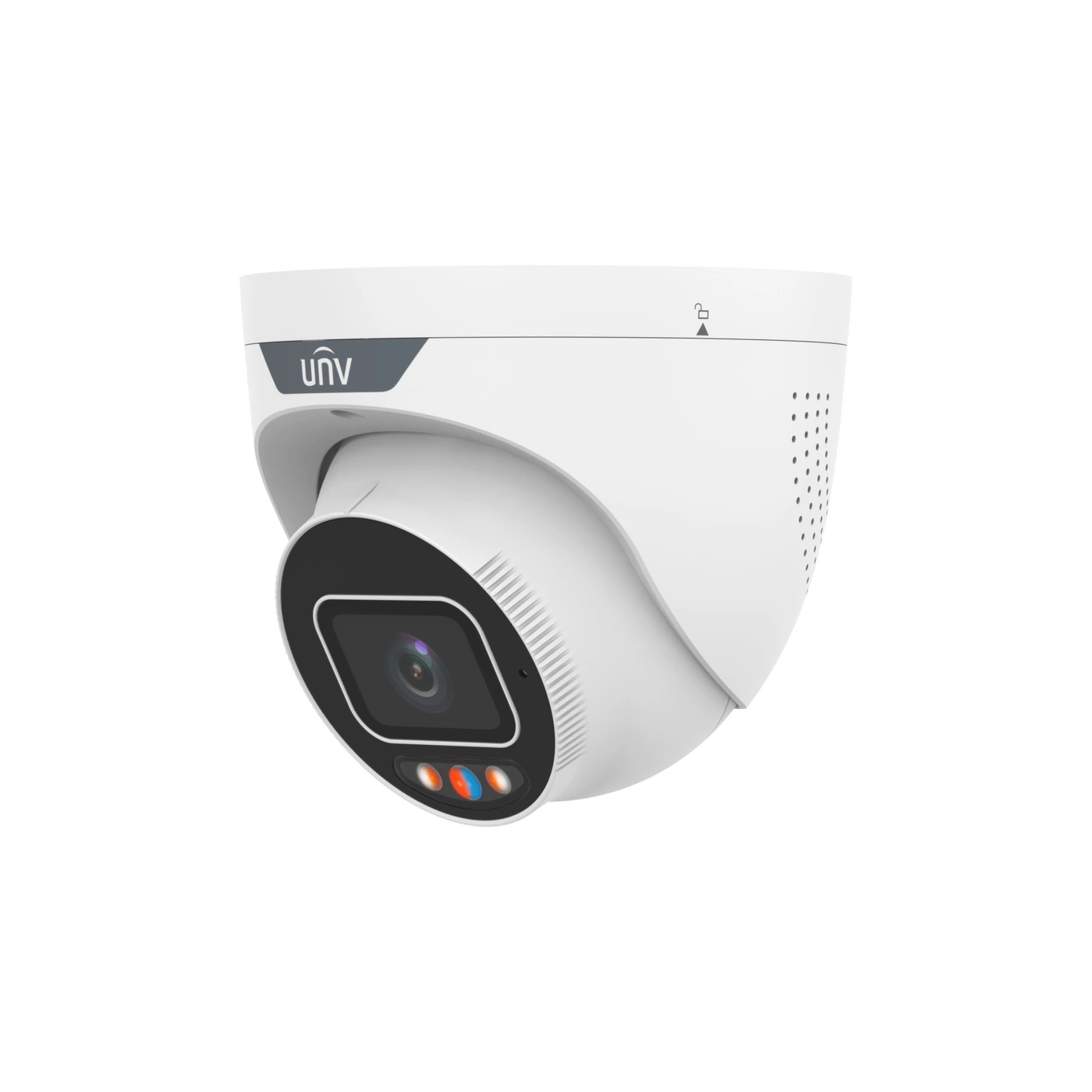

Uniview IPC3634SS-ADF28KMC-I1 4MP 2.8mm Dual-Light Active-Deterrence Turret Camera
$375.99
Record 4MP video at 30 fps and respond through an integrated microphone and speaker. Dual illumination, light and audible warnings, and target classification support active perimeter monitoring.
- 4MP at 30 fps
- Built-In Two-Way Audio
- Light and Audible Warning
- 30 m IR and Warm Light
- 130 dB WDR
Storage & Access
Up to 512GB MicroSD
ONVIF Compatible
Deterrence Features
Audio Deterrence
Deterrence Lights
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 102.3° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3634SS-ADF28KMC-I1 combines a 2.8mm F1.0 lens with a 102.3-degree horizontal view and 4MP capture at 30 fps. Both infrared and warm-light illumination reach up to 30 m. Its 130 dB WDR helps balance bright backgrounds against shaded subjects.
An integrated microphone and speaker enable two-way audio, while light and audible warning functions support on-site response. Human, vehicle and non-motor-vehicle classification work with perimeter detection, and people-flow counting adds traffic information. The IP67 metal turret supports PoE, audio/alarm connections and microSD cards up to 512 GB.
Key Features
- 4MP video: 2688 x 1520 at up to 30 fps
- 2.8 mm fixed lens; F1.0
- Horizontal field of view: 102.3 degrees
- Sensor: 1/2.7 inch CMOS
- Wide dynamic range: 130 dB
- Infrared illumination up to 30 m
- Warm-light illumination up to 30 m
- MicroSD capacity: up to 512 GB
- Video encoding: Ultra 265, H.265, H.264, MJPEG
- Power: IEEE 802.3af PoE or 12V DC
- Network: RJ45 10/100 Mbps Ethernet
- ONVIF (Profile S, Profile G, Profile T, Profile M)
- Integrated microphone
- Two-way audio with integrated microphone and speaker
- Perimeter rules with human, vehicle and non-motor-vehicle classification
- People-flow counting and crowd-density detection
- Alarm interface: 1 input, 1 output
- Environmental protection: IP67
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 102.3°
- FPS:
- 30
- WDR:
- 130 dB
- Sensor:
- 1/2.7"
- Lens Type:
- Fixed
- Night Vision:
- Dual Light
- Night Viewing Range:
- 98ft
- Smart Features:
- Human Body Detection, Intelligent people flow counting, Intrusion Detection, Line Crossing Detection, Motion Detection, Object Left Behind Detection, Object Removed Detection, Vehicle Detection
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Deterrence Features:
- Audio, Deterrence Lights
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.543 lbs
- Dimensions:
- 5.08 × 5.08 × 4.65 in
