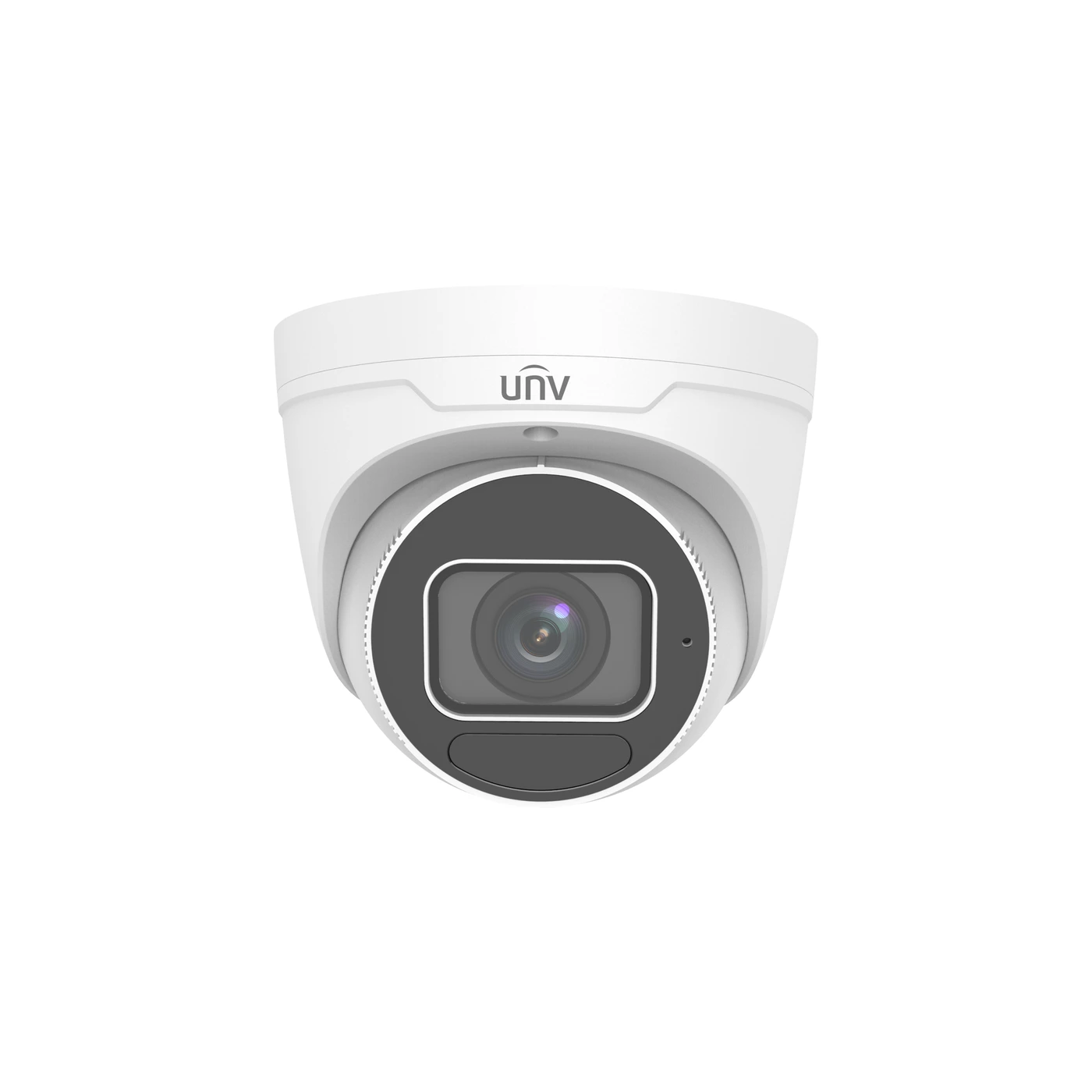

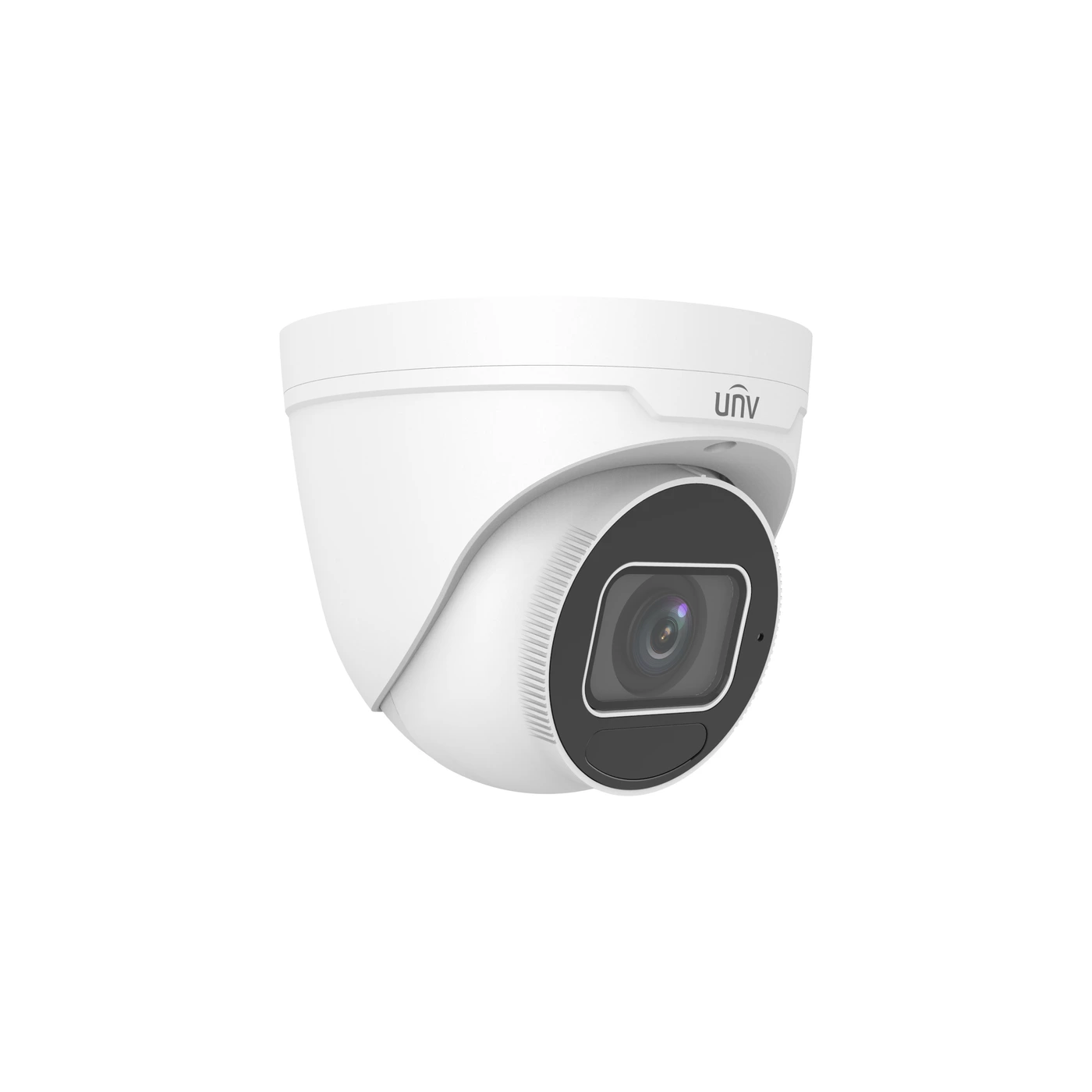

Uniview IPC3634SB-ADZK-I0 4MP LightHunter 2.7-13.5mm Motorized IR Turret Camera
$481.69
Set the view with a 2.7-13.5mm motorized lens, capture 4MP at 30 fps and monitor up to 40 m with IR assistance. Human/vehicle classification and IK10 protection suit exposed monitoring points.
- 2.7-13.5mm Motorized Lens
- 4MP at 30 fps
- 40 m Infrared Range
- IP67 and IK10 Housing
- Human and Vehicle Classification
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 98.3° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3634SB-ADZK-I0 provides 4MP video at up to 30 fps with a motorized 2.7-13.5mm lens. Its horizontal coverage adjusts from 98.26 to 31.35 degrees, giving installers room to tune the view. LightHunter imaging, 120 dB WDR and 40 m infrared illumination support changing lighting conditions.
Perimeter analytics classify people, vehicles and non-motor vehicles, while people-flow counting supports traffic monitoring. A built-in microphone records scene audio, and microSD support extends to 512 GB. IP67 weather protection and IK10 impact resistance protect the metal turret; power is supplied through PoE or 12V DC.
Key Features
- 4MP video: 2688 x 1520 at up to 30 fps
- 2.7 to 13.5 mm motorized varifocal lens; F1.2
- Horizontal field of view: 98.26 degrees to 31.35 degrees
- Sensor: 1/3.0 inch CMOS
- Wide dynamic range: 120 dB
- Infrared illumination up to 40 m
- MicroSD capacity: up to 512 GB
- Video encoding: Ultra 265, H.265, H.264, MJPEG
- Power: IEEE 802.3af PoE or 12V DC
- Network: RJ45 10/100 Mbps Ethernet
- ONVIF (Profile S, Profile G, Profile T, Profile M)
- Integrated microphone
- Perimeter rules with human, vehicle and non-motor-vehicle classification
- People-flow counting and crowd-density detection
- Environmental protection: IP67, IK10
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 98.26° – 31.35°
- FPS:
- 30
- WDR:
- 120 dB
- Sensor:
- 1/3"
- Lens Type:
- Motorized
- Night Vision:
- IR
- Night Viewing Range:
- 131ft
- Smart Features:
- Human Body Detection, Intelligent people flow counting, Intrusion Detection, Line Crossing Detection, Motion Detection, Vehicle Detection
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.521 lbs
- Dimensions:
- 5.08 × 5.08 × 4.33 in
