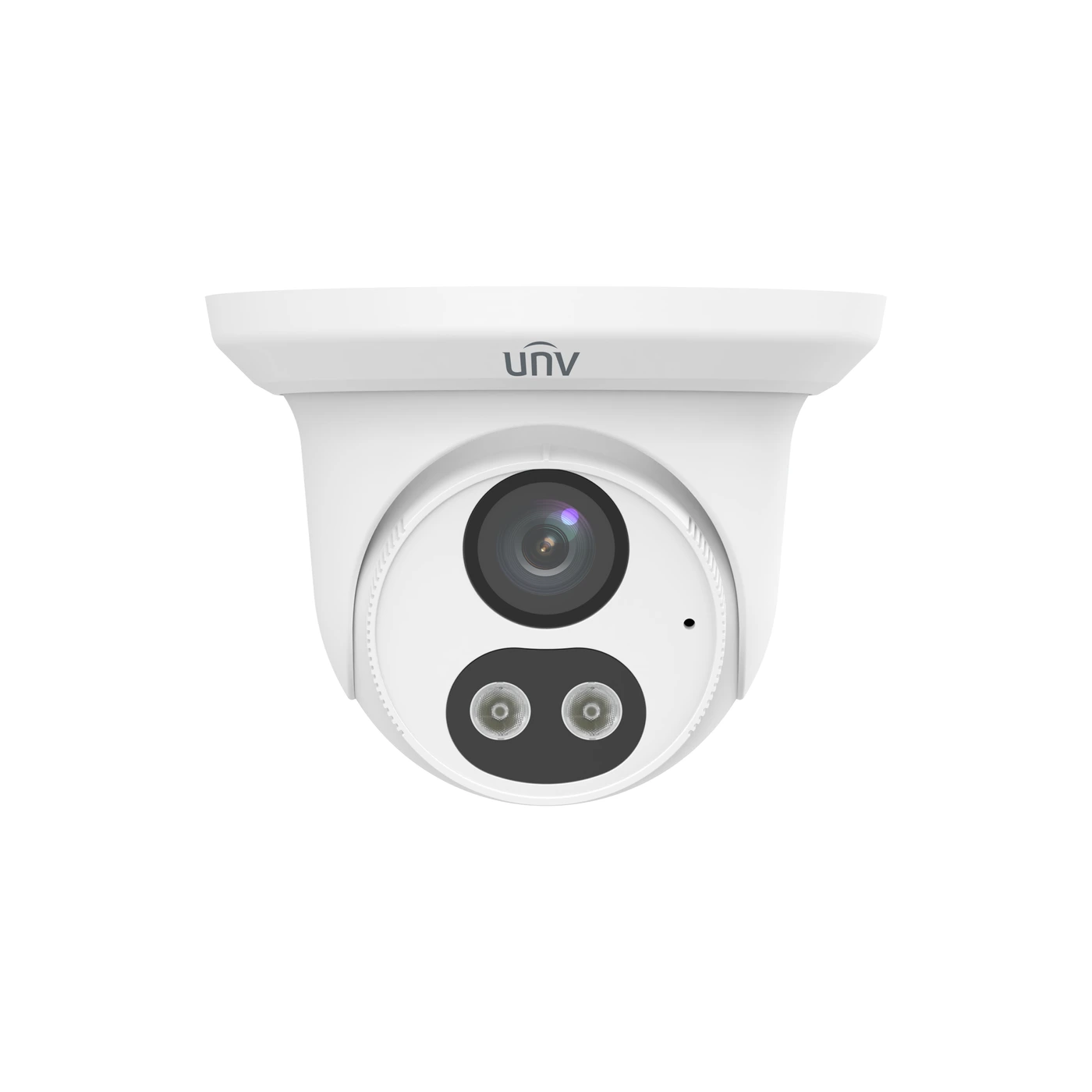

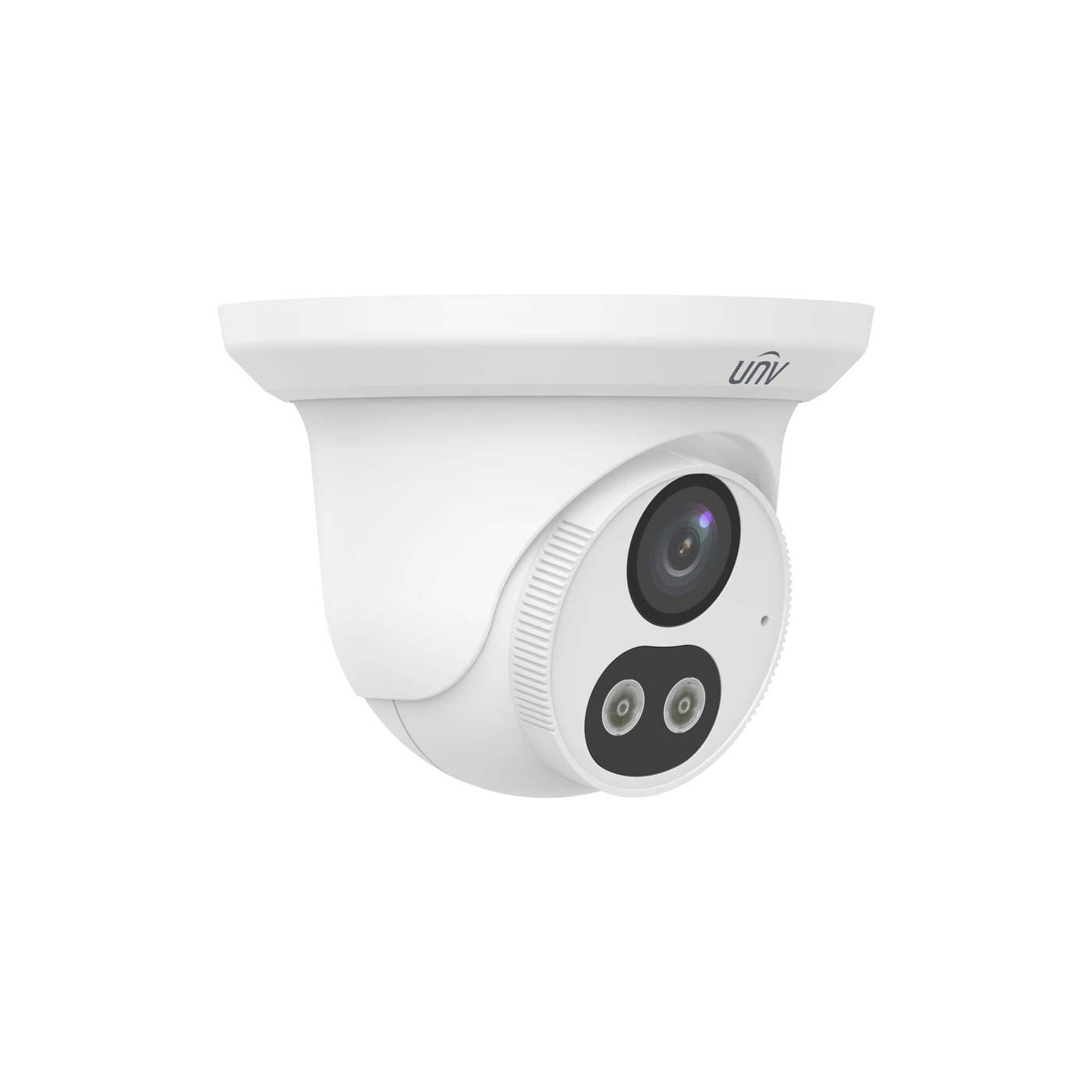

Uniview IPC3615LB-AF28K-DL 5MP 2.8mm Dual-Light Turret Network Camera
$179.69
Monitor at 5MP resolution and 20 fps with a fixed 2.8mm lens. Infrared and warm-light illumination each reach 30 m, with integrated audio capture and PoE power.
- 5MP Output at 20 fps
- 30 m IR and Warm Light
- Built-In Microphone
- IP67 Outdoor Protection
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 97° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description
The IPC3615LB-AF28K-DL provides a 97-degree horizontal view from its fixed 2.8mm lens. Its 5MP output reaches 20 fps, while infrared and warm-light illumination each extend up to 30 m. Digital WDR and noise reduction help manage difficult lighting in everyday monitoring scenes.
A built-in microphone accompanies motion, tampering and audio-event detection. Local storage supports microSD cards up to 512 GB, and the IP67 housing is suitable for outdoor installation. PoE or 12V DC power is supported; this model records audio but has no integrated speaker or two-way audio.
Key Features
- 5MP video: 2880 x 1620 at up to 20 fps
- 2.8 mm fixed lens; F1.6
- Horizontal field of view: 97.0 degrees
- Sensor: 1/3.0 inch CMOS
- Wide dynamic range: digital WDR
- Infrared illumination up to 30 m
- Warm-light illumination up to 30 m
- MicroSD capacity: up to 512 GB
- Video encoding: Ultra 265, H.265, H.264, MJPEG
- Power: IEEE 802.3af PoE or 12V DC
- Network: RJ45 10/100 Mbps Ethernet
- ONVIF (Profile S, Profile G, Profile T)
- Integrated microphone
- Environmental protection: IP67
Full Specifications
- Megapixels:
- 5
- Resolution:
- 2880 x 1620
- Field of View:
- 97°
- FPS:
- 20
- WDR:
- DWDR
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- Dual Light
- Night Viewing Range:
- 98ft
- Smart Features:
- Motion Detection
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 0.639 lbs
- Dimensions:
- 4.96 × 4.96 × 3.69 in
