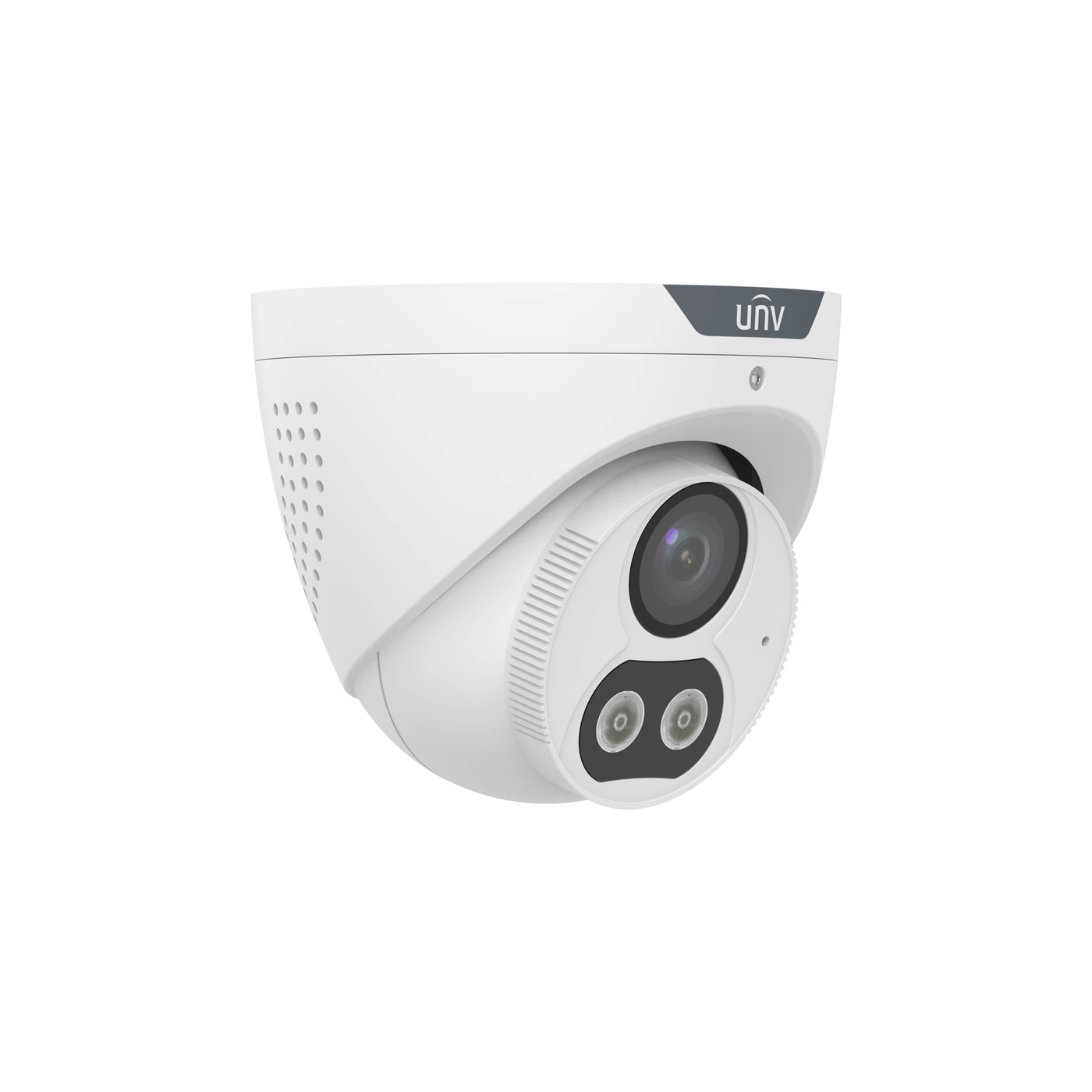

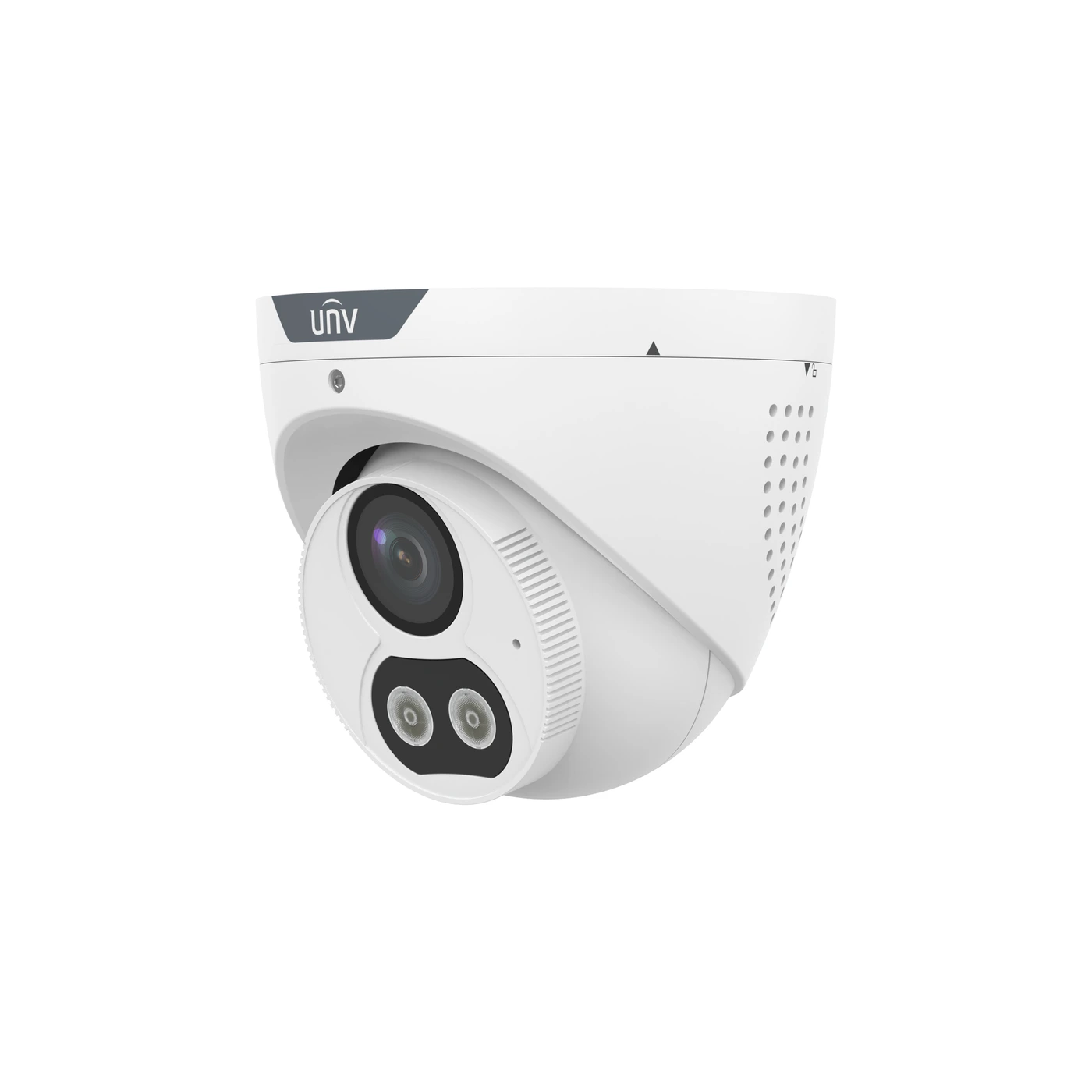

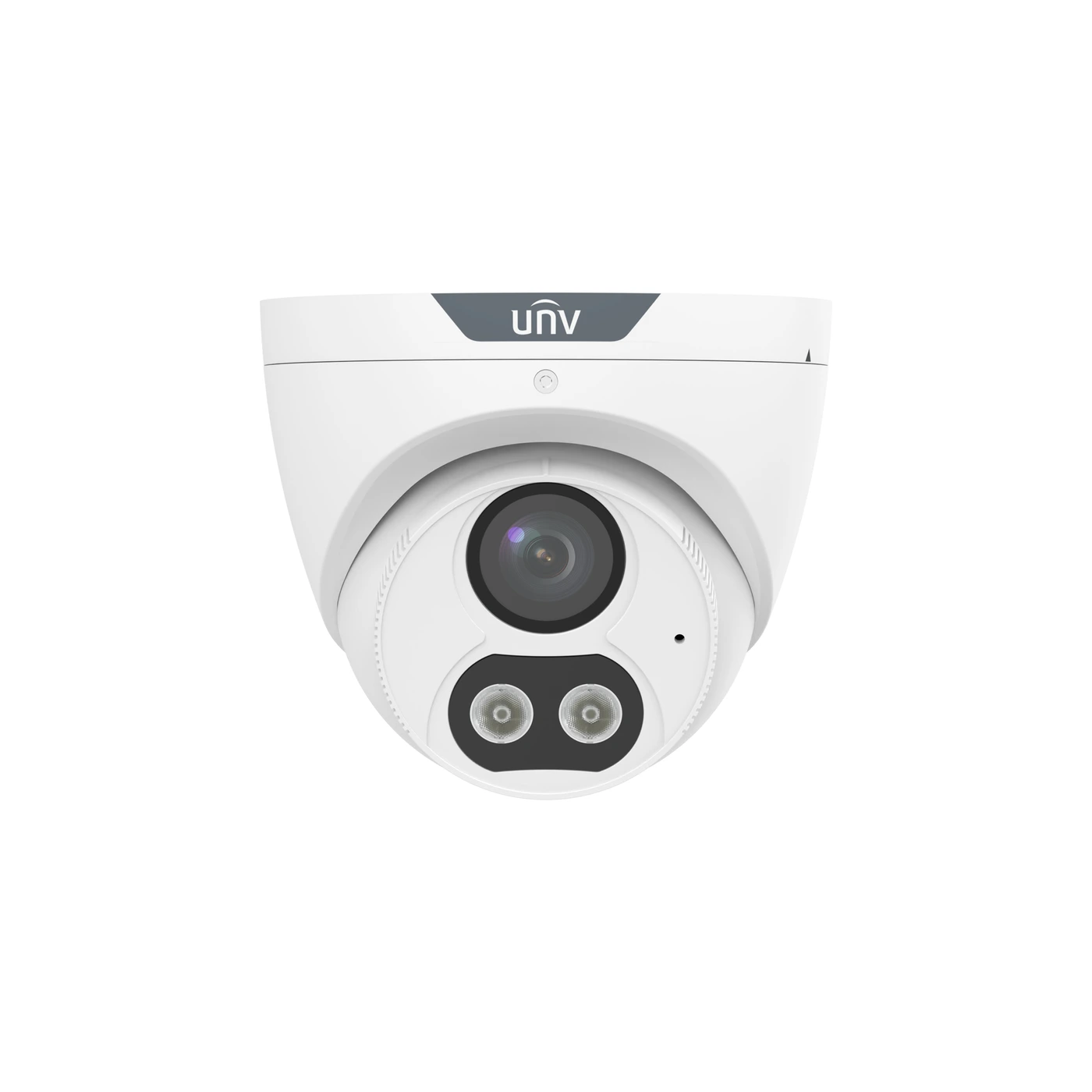

Uniview IPC3614SR-ADF28KMC-DL-H 4MP 2.8mm Dual-Light WDR Turret IP Camera
$224.99
Pair 4MP capture and two-way audio with 30 m infrared/warm-light illumination in a compact 97-degree-view turret.
- 4MP native stream up to 30 fps
- 30 m dual-light illumination
- Integrated two-way audio
- 120 dB WDR
- Compact IP67 turret
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 97° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3614SR-ADF28KMC-DL-H uses a 2.8 mm lens with a 97-degree horizontal field of view. Its 2688 x 1520 stream reaches 30 fps; the separate 2560 x 1440 mode is limited to 25 fps. 120 dB WDR helps preserve detail through strong lighting contrasts.
Infrared and warm light each illuminate up to 30 m, and the built-in microphone and speaker enable two-way communication. Human-based intrusion and line-crossing events complement local recording on microSD cards up to 512 GB. The IP67 turret weighs 0.32 kg and accepts PoE or 12 V DC power.
Key Features
- 4MP video: 2688 x 1520, up to 30 fps
- Lens: 2.8 mm, fixed focal length
- Horizontal field of view: 97.0 degrees
- Sensor: 1/3" CMOS
- Wide dynamic range: 120 dB
- Infrared illumination: up to 30 m
- Warm-light illumination: up to 30 m
- Encoding: Ultra 265, H.265, H.264, MJPEG
- Built-in microphone
- Built-in speaker; two-way audio
- MicroSD storage: up to 512 GB
- ONVIF (Profile S, Profile G, Profile T)
- Network: 10/100 Mbps RJ45 Ethernet
- Power: 12 V DC or IEEE 802.3af PoE
- Protection: IP67
- Body dimensions: 110.5 x 110.5 x 97.2 mm (diameter x diameter x height)
- Camera weight: 0.32 kg
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 97°
- FPS:
- 30
- WDR:
- 120 dB
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- Dual Light
- Night Viewing Range:
- 98ft
- Smart Features:
- Human Body Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm
- Audio Features:
- 2-Way Audio, Audio Capture, Built-in Speaker
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 0.705 lbs
- Dimensions:
- 4.35 × 4.35 × 3.83 in
