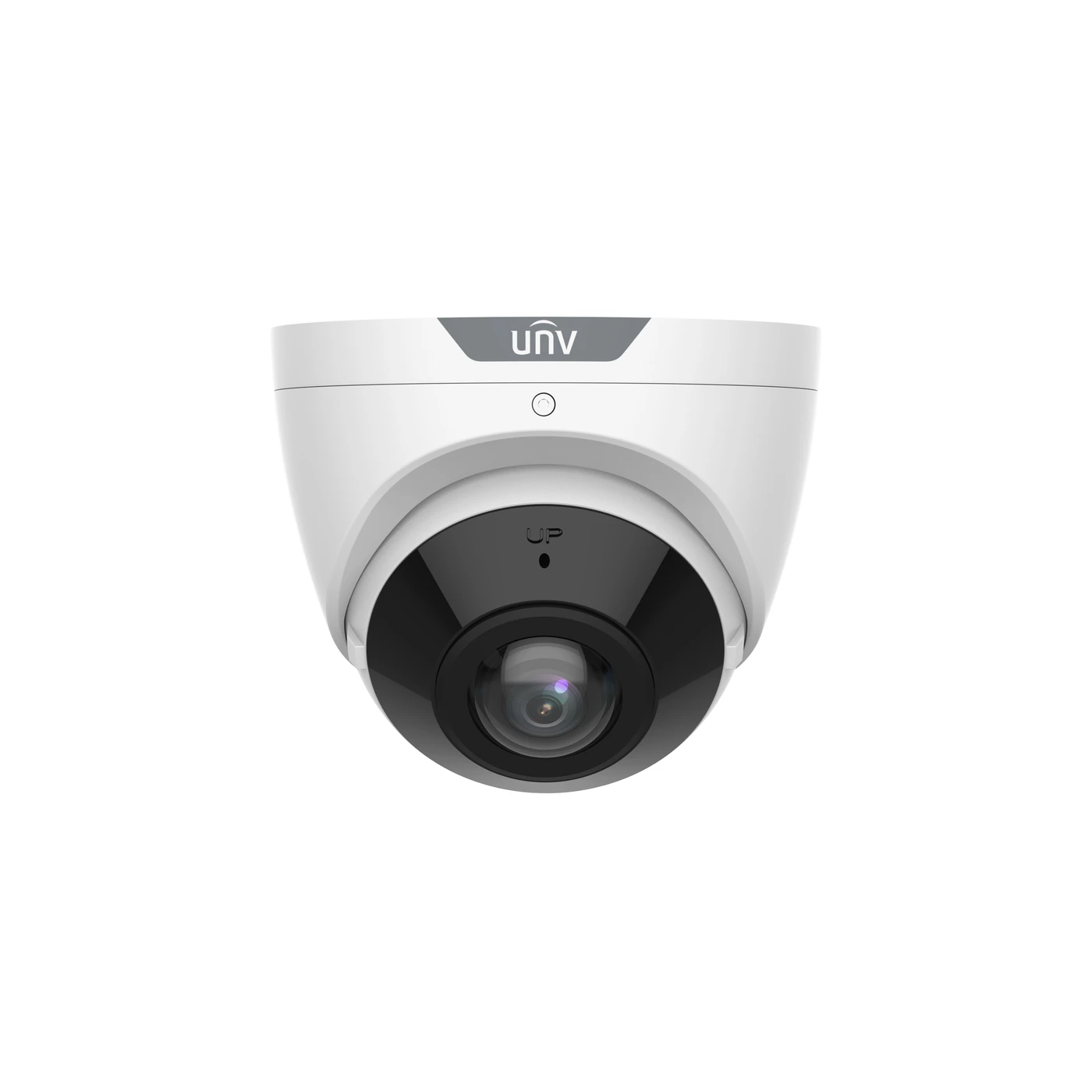

Uniview IPC3605SB-ADF16KM-I0 5MP 180-Degree Wide-Angle IR Turret Camera
$360.89
Cover a broad frontage with a 180-degree horizontal view, 5MP video at 30 fps and a compact PoE-powered turret.
- 180-Degree Horizontal Coverage
- 5MP at 30 fps
- 20 m Smart IR
- Built-In Microphone
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 180° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3605SB-ADF16KM-I0 uses a 1.68 mm fixed lens with a 180-degree horizontal view to cover a broad scene from one mounting position. Its 5MP stream reaches 2880 x 1620 at 30 fps, and dewarping support helps make the wide-angle image easier to interpret.
Infrared illumination reaches up to 20 m, while 120 dB WDR handles mixed lighting across the scene. A built-in microphone adds sound, and perimeter analytics can distinguish people, motor vehicles and non-motor vehicles. The IP67/IK10 enclosure and 512 GB microSD support suit compact installations where wide coverage matters.
Key Features
- 5MP stream: 2880 x 1620 at up to 30 fps
- 1/2.7-inch CMOS; 1.68 mm F2.0 fixed lens
- FOV: 180 degrees horizontal, 100 degrees vertical
- Dewarping supported
- IR illumination up to 20 m; 120 dB WDR
- Built-in microphone; no built-in speaker or two-way audio
- MicroSD up to 512 GB; ANR and NFS NAS
- Perimeter detection with human, vehicle and non-motor-vehicle classification
- IP67 and IK10; maximum power 5.5 W
Full Specifications
- Megapixels:
- 5
- Resolution:
- 2880 x 1620
- Field of View:
- 180°
- FPS:
- 30
- WDR:
- 120 dB
- Sensor:
- 1/2.7"
- Lens Type:
- Fixed
- Night Vision:
- IR
- Night Viewing Range:
- 66ft
- Smart Features:
- Human Body Detection, Intrusion Detection, Line Crossing Detection, Vehicle Detection
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.058 lbs
- Dimensions:
- 4.37 × 4.37 × 3.66 in
