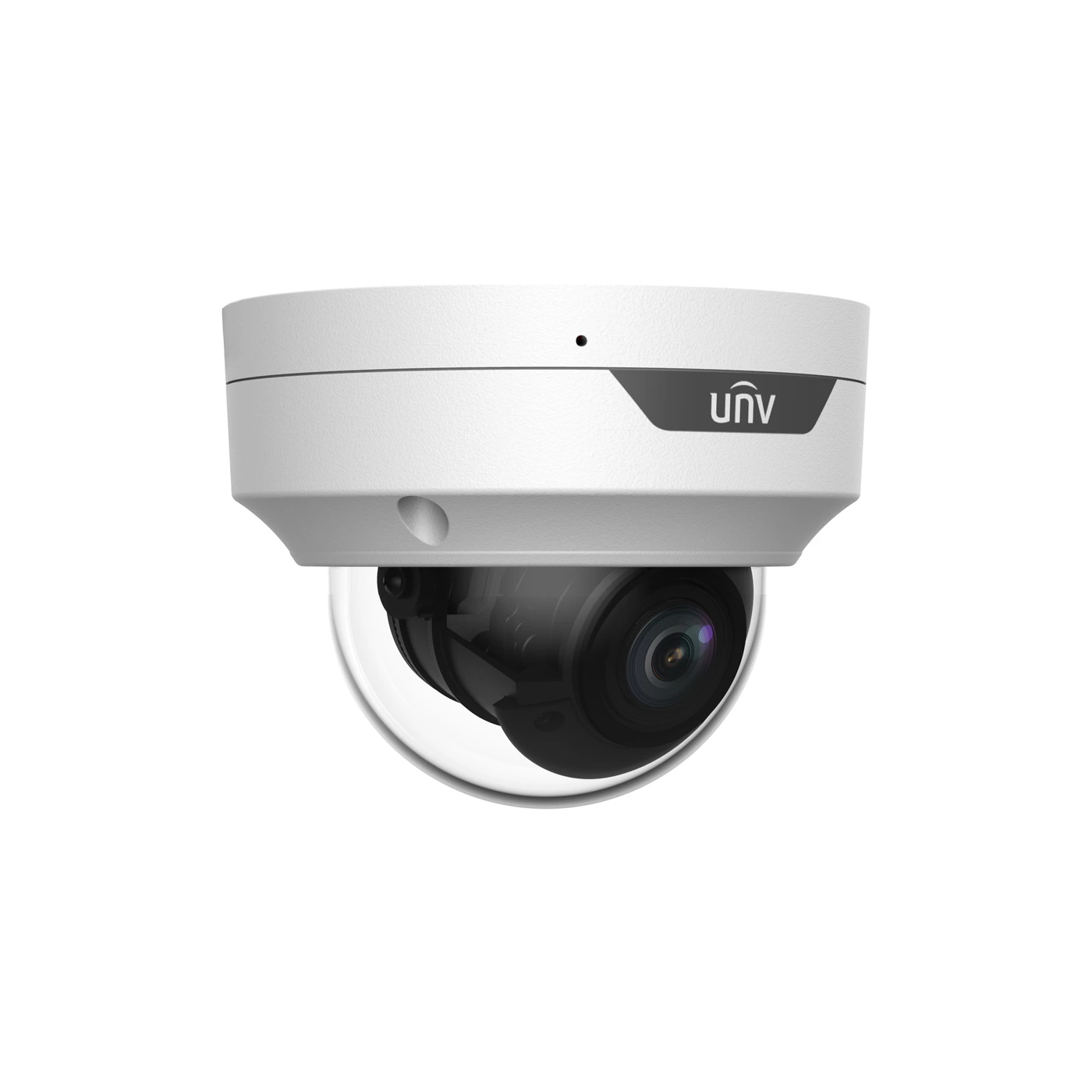

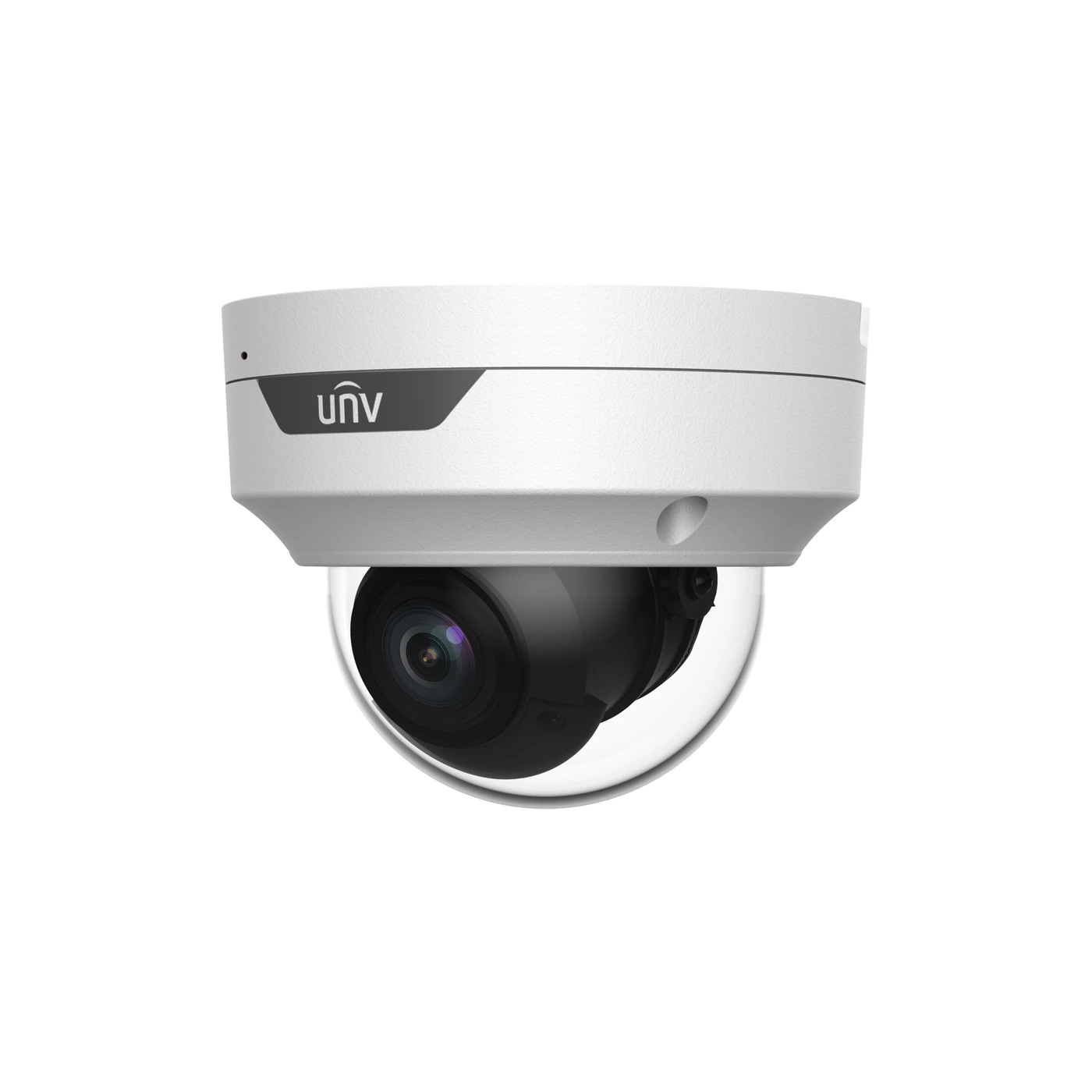

Uniview IPC3534SR4-ADZK-H 4MP 2.8-12mm Motorized IK10 IR Dome IP Camera
$360.89
Set the desired coverage with a motorized 2.8-12 mm lens in a vandal-resistant dome with 40 m infrared reach.
- Motorized 2.8-12 mm framing
- 40 m infrared illumination
- 4MP video at up to 25 fps
- 120 dB WDR
- IP67 and IK10 dome
Storage & Access
Up to MicroSD Compatible MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 86.3° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3534SR4-ADZK-H lets installers adjust its horizontal view from 86.3 to 35.2 degrees using a 2.8-12 mm motorized lens. Full 2688 x 1520 video is supported at up to 25 fps, with 120 dB WDR for scenes that mix bright and shaded areas.
The dome combines 40 m Smart IR with human-based line-crossing and intrusion detection. The current specification includes a built-in microphone and a microSD slot. IP67 and IK10 protection suit exposed mounting positions, while PoE or 12 V DC supplies power to the 128 mm-diameter enclosure.
Key Features
- 4MP video: 2688 x 1520, up to 25 fps
- Lens: 2.8 to 12 mm, motorized
- Horizontal field of view: 86.3 degrees to 35.2 degrees
- Sensor: 1/3" CMOS
- Wide dynamic range: 120 dB
- Infrared illumination: up to 40 m
- Encoding: Ultra 265, H.265, H.264, MJPEG
- Built-in microphone
- No built-in speaker
- MicroSD slot; maximum capacity requires revision confirmation
- ONVIF (Profile S, Profile G, Profile T)
- Network: 10/100 Mbps RJ45 Ethernet
- Power: 12 V DC or IEEE 802.3af PoE
- Protection: IP67 and IK10
- Body dimensions: 128 x 128 x 100 mm (diameter x diameter x height)
- Camera weight: 0.66 kg
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 86.3° – 35.2°
- FPS:
- 25
- WDR:
- 120 dB
- Sensor:
- 1/3"
- Lens Type:
- Motorized
- Night Vision:
- IR
- Night Viewing Range:
- 131ft
- Smart Features:
- Human Body Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.455 lbs
- Dimensions:
- 5.04 × 5.04 × 3.94 in
