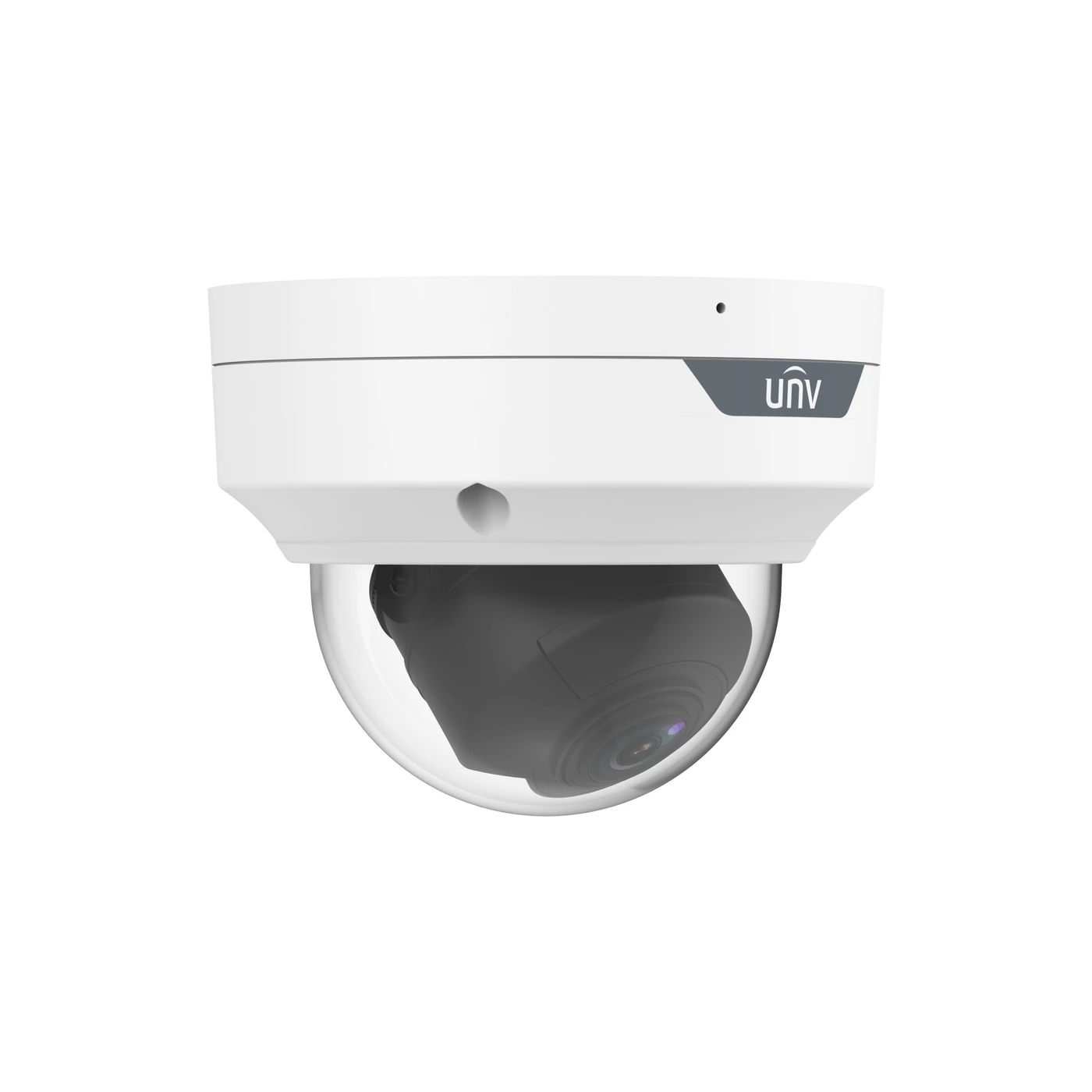

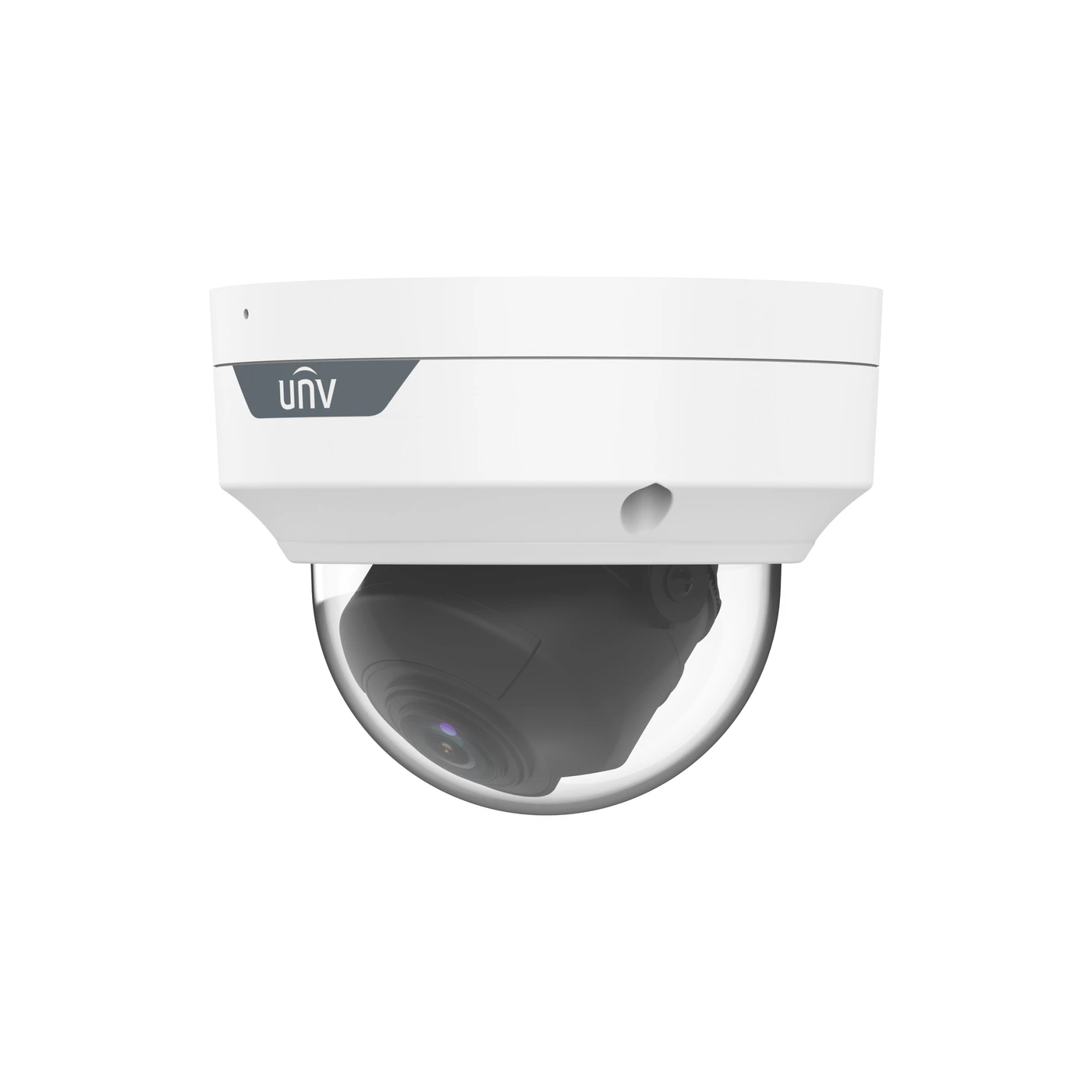

Uniview IPC3514SR-ADF28KM-WP 4MP OwlView Wise-ISP 2.8mm Low-Light Dome IP Camera
$315.59
Wise-ISP, a 1/1.8-inch sensor and F1.0 optics prioritize color detail in very low light, inside a weather- and impact-rated dome.
- Wise-ISP low-light color imaging
- 1/1.8-inch sensor with F1.0 lens
- 110.4-degree horizontal view
- Built-in microphone
- IP67 and IK10 dome
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 110.4° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
On this product
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC3514SR-ADF28KM-WP uses ColorHunter with Wise-ISP to process low-light color images. A 1/1.8-inch CMOS sensor and F1.0, 2.8 mm lens provide a 110.4-degree horizontal view. The camera supports 2688 x 1520 video at up to 25 fps and 120 dB WDR.
A built-in microphone and human-based line-crossing or intrusion detection add event context. The IP67 and IK10 enclosure measures 128 mm in diameter and includes microSD support up to 512 GB. PoE or 12 V DC powers the camera; this model is a low-light color-imaging camera, not a camera with a specified built-in IR illumination range.
Key Features
- 4MP video: 2688 x 1520, up to 25 fps
- Lens: 2.8 mm, fixed focal length
- Horizontal field of view: 110.4 degrees
- Sensor: 1/1.8" CMOS
- Wide dynamic range: 120 dB
- Wise-ISP low-light color processing; F1.0 aperture
- Encoding: Ultra 265, H.265, H.264, MJPEG
- Built-in microphone
- No built-in speaker
- MicroSD storage: up to 512 GB
- ONVIF (Profile S, Profile G, Profile T)
- Network: 10/100 Mbps RJ45 Ethernet
- Power: 12 V DC or IEEE 802.3af PoE
- Protection: IP67 and IK10
- Body dimensions: 128 x 128 x 100 mm (diameter x diameter x height)
- Camera weight: 0.63 kg
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 110.4°
- FPS:
- 25
- WDR:
- 120 dB
- Sensor:
- 1/1.8"
- Lens Type:
- Fixed
- Night Vision:
- Color Night Vision
- Smart Features:
- Human Body Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm, Wise-ISP
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.389 lbs
- Dimensions:
- 5.04 × 5.04 × 3.94 in
