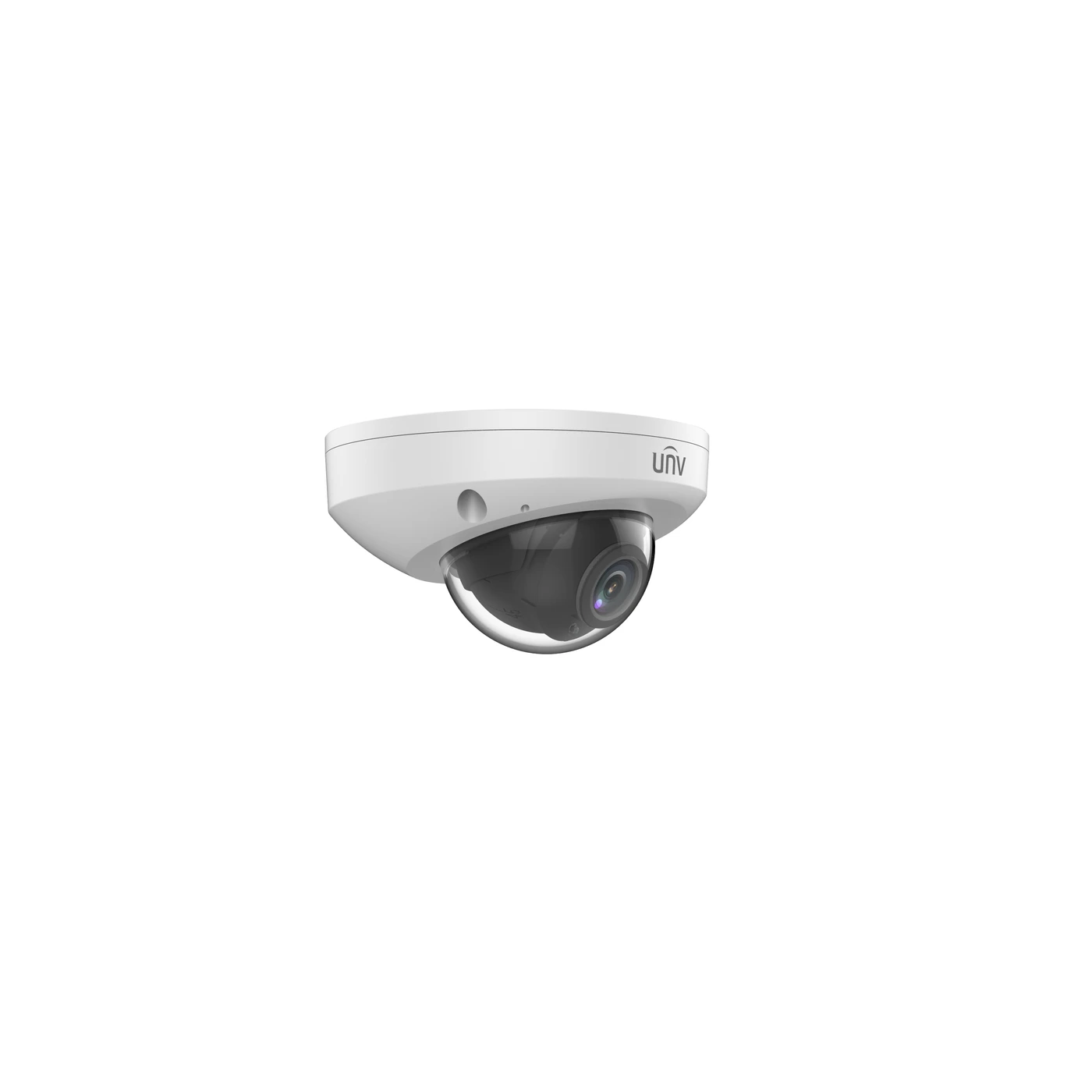

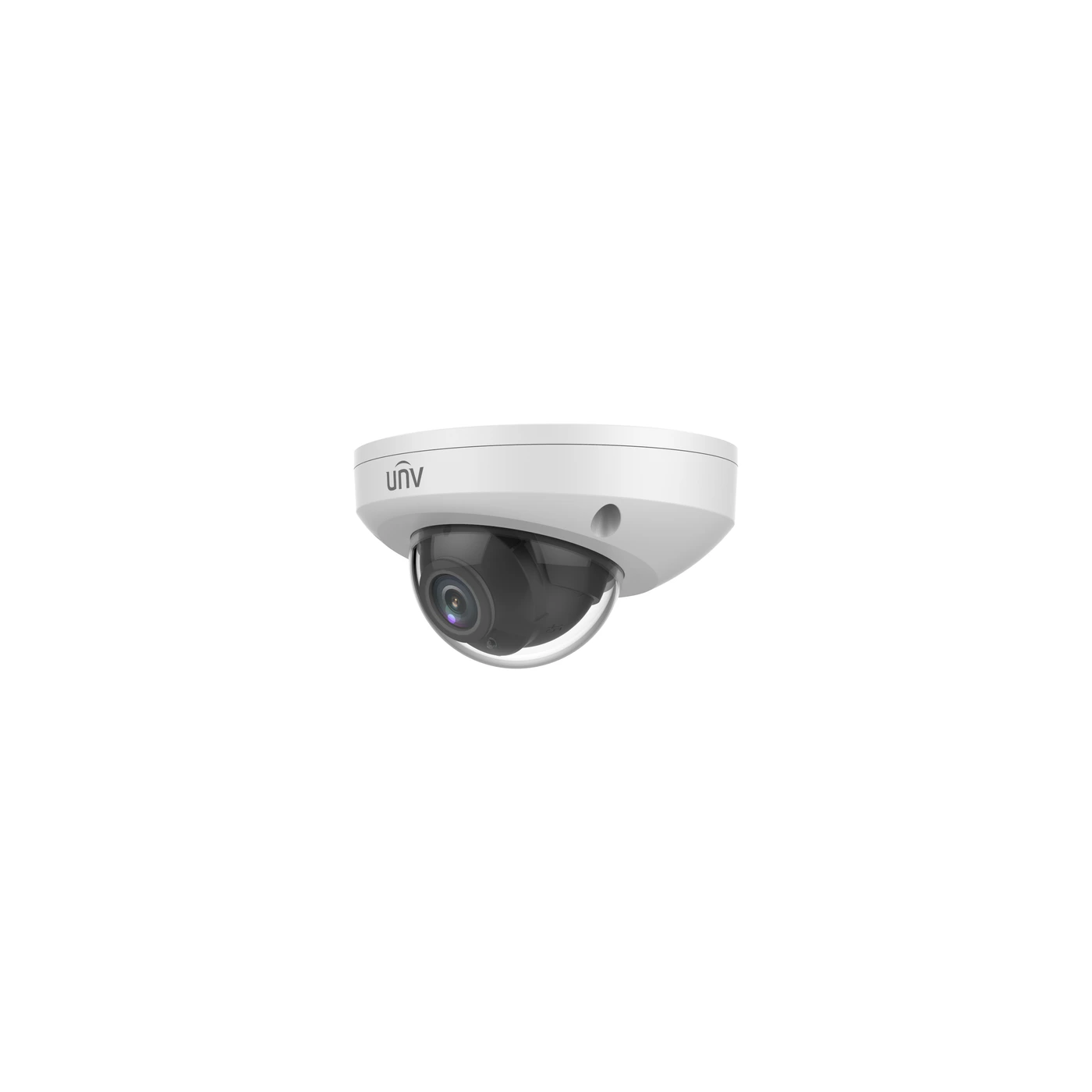

Uniview IPC318SR3-ADF28KM-G 8MP 4K 2.8mm IR Mini Dome Network Camera
$285.39
A 61mm-high mini dome delivers 4K video at up to 20 fps. IP67 and IK10 protection, a built-in microphone and audio connections suit compact wired installations.
- Compact 61mm-High Mini Dome
- 4K Video at 20 fps
- IP67 and IK10 Protection
- Built-In Microphone and Audio I/O
Storage & Access
Up to MicroSD Compatible MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 101.1° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description
The IPC318SR3-ADF28KM-G puts 3840 x 2160 capture into a mini dome measuring 110 mm in diameter and 61 mm high. Its fixed 2.8mm lens provides a 101.1-degree horizontal field of view. Up to 30 m of IR illumination and 120 dB WDR support night scenes and uneven lighting.
IP67 and IK10 protection provide weather and impact resistance. The built-in microphone captures sound, and audio input/output supports external audio equipment; an external speaker is needed for two-way communication. PoE, 12V DC power and microSD recording provide installation and recording choices.
Key Features
- 8MP video: 3840 x 2160 at up to 20 fps
- 2.8 mm fixed lens; F1.6
- Horizontal field of view: 101.1 degrees
- Sensor: 1/3.0 inch CMOS
- Wide dynamic range: 120 dB
- Infrared illumination up to 30 m
- MicroSD recording supported; maximum card capacity requires manufacturer confirmation
- Video encoding: Ultra 265, H.265, H.264, MJPEG
- Power: IEEE 802.3af PoE or 12V DC
- Network: RJ45 10/100 Mbps Ethernet
- ONVIF (Profile S, Profile G, Profile T)
- Integrated microphone
- Two-way audio supported through audio I/O; external speaker required
- Environmental protection: IP67, IK10
Full Specifications
- Megapixels:
- 8
- Resolution:
- 4K
- Field of View:
- 101.1°
- FPS:
- 20
- WDR:
- 120 dB
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- IR
- Night Viewing Range:
- 98ft
- Smart Features:
- Motion Detection
- Audio Features:
- 2-Way Audio (External Speaker Required), Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 0.816 lbs
- Dimensions:
- 4.33 × 4.33 × 2.40 in
Two-way communication may require external audio equipment; see the audio specifications for this model.
