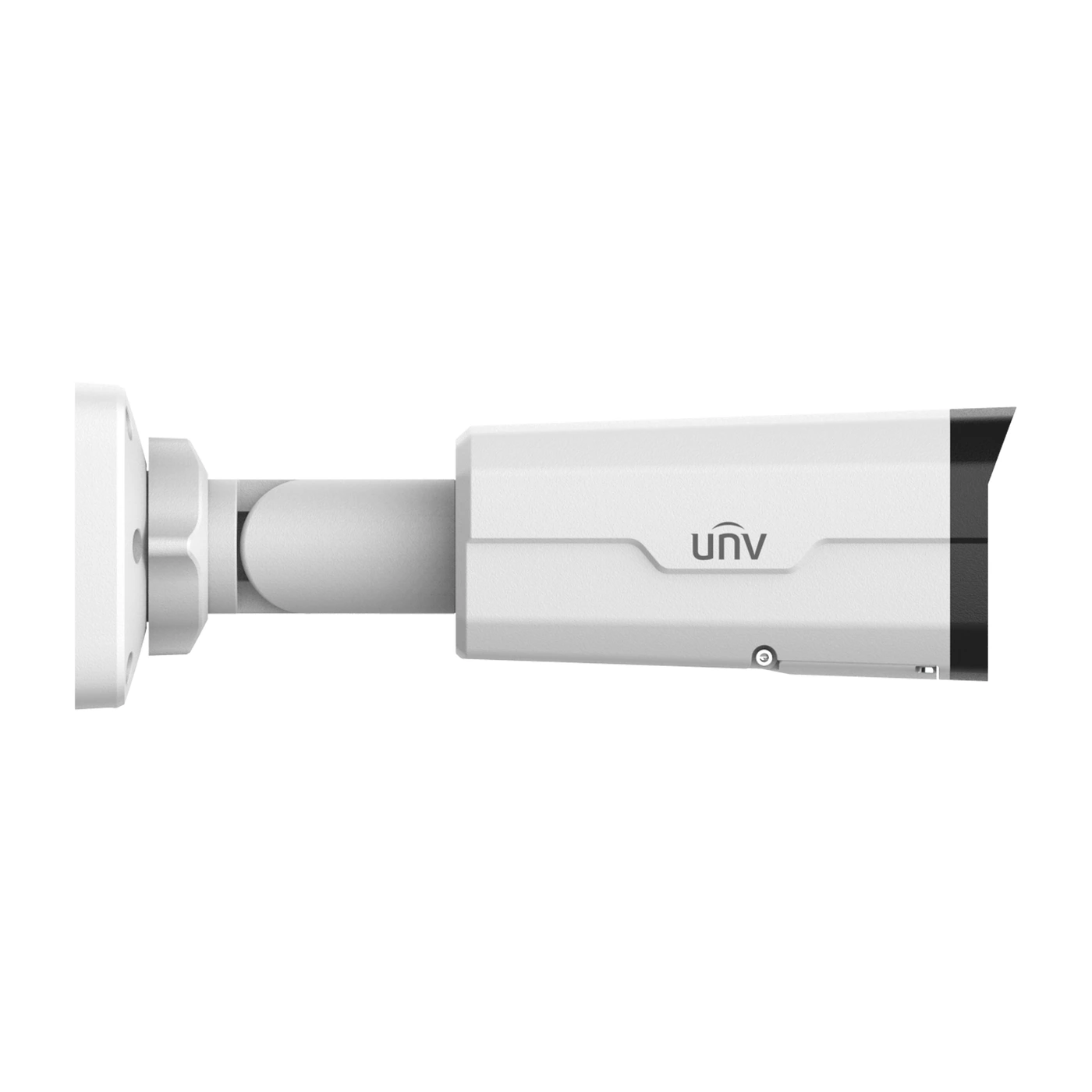

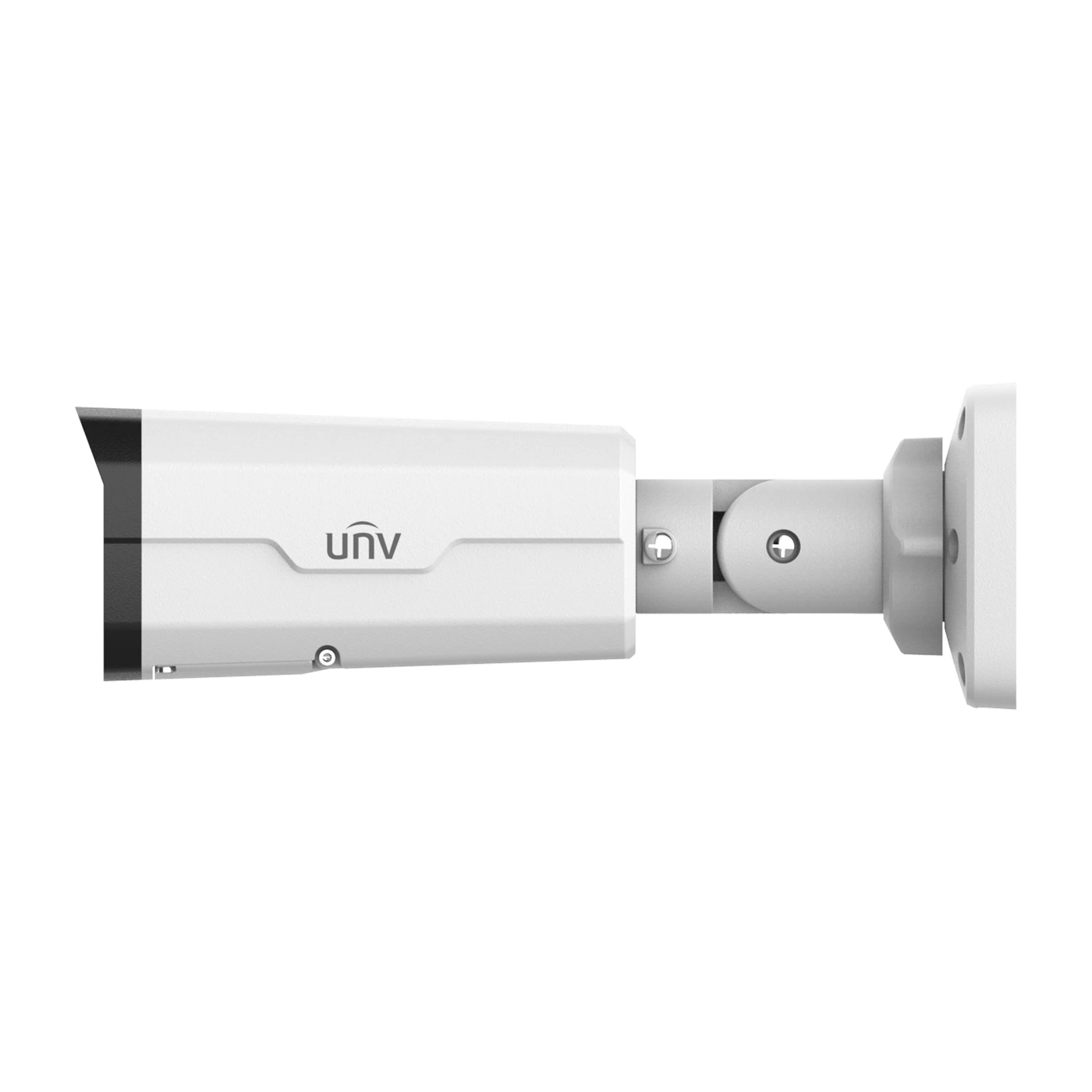

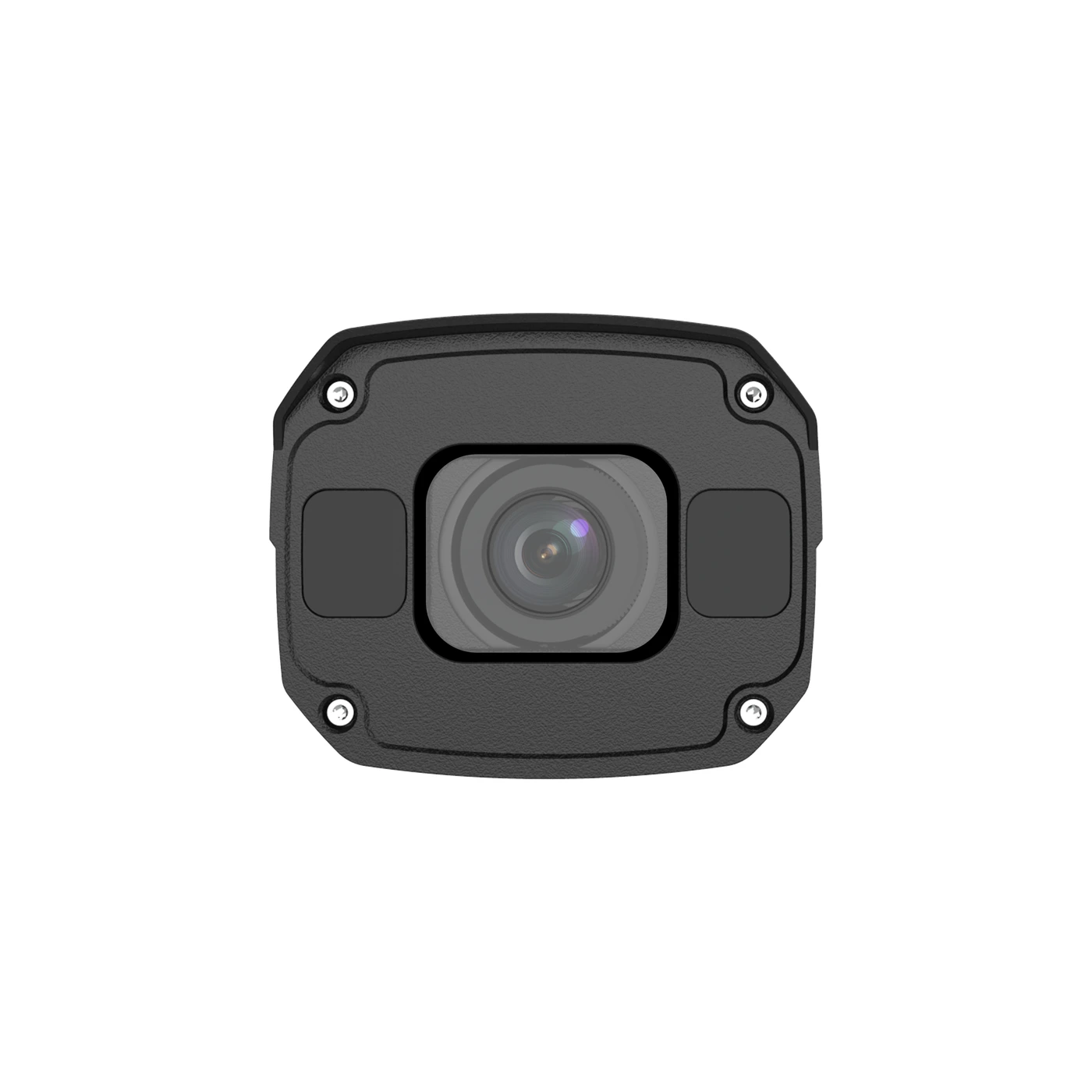

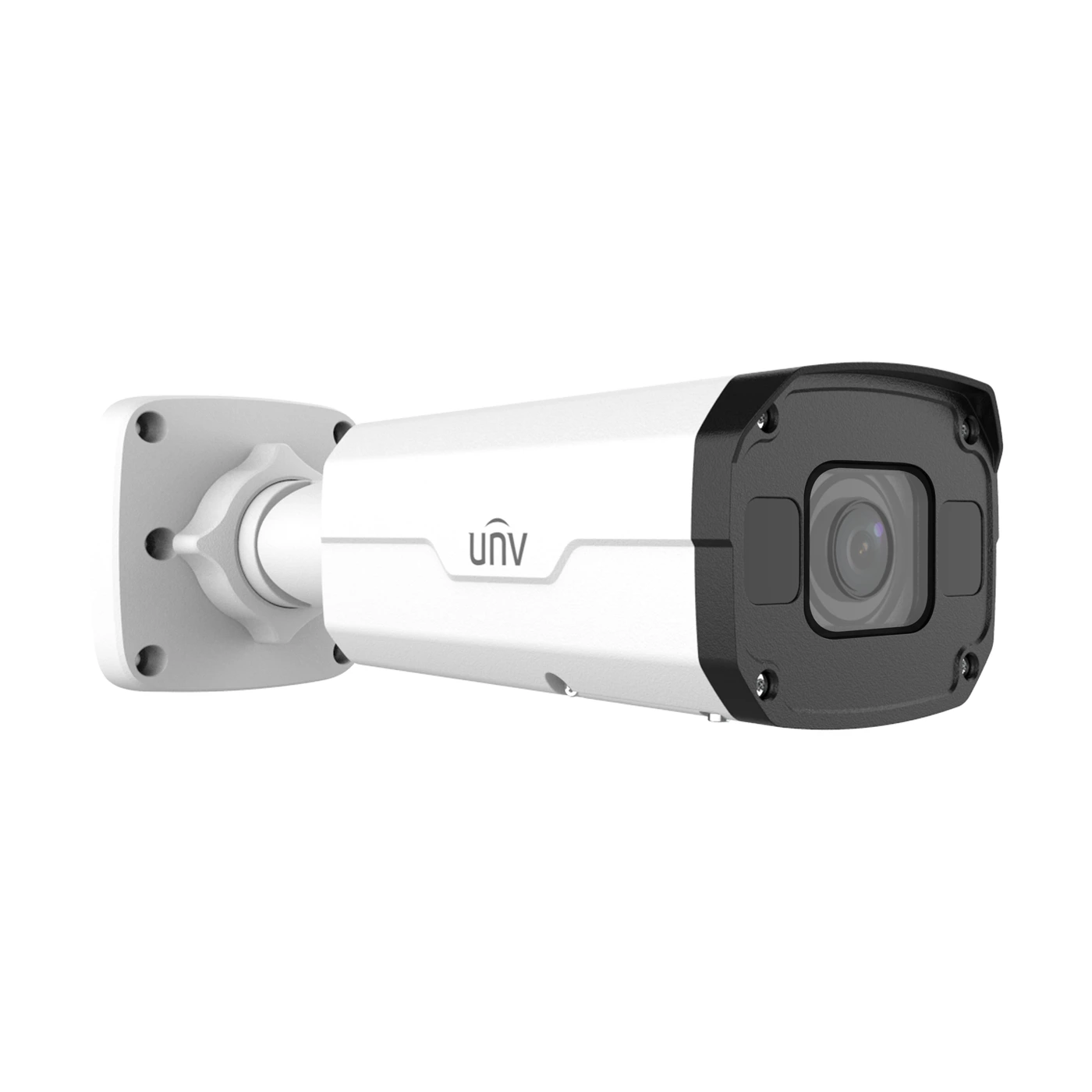

Uniview IPC2328SB-DZK-I0 8MP 4K Motorized IR Bullet Camera
$1,281.99
Fine-tune coverage with a 2.8-12mm motorized lens, 4K video and infrared illumination up to 164 feet, protected by an IP67/IK10 housing.
- Motorized lens adjusts from wide coverage to a tighter view
- 4K recording for detailed outdoor coverage
- Infrared illumination up to 164 feet
- IP67 weather protection and IK10 impact resistance
- Person and vehicle perimeter detection
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
A football field is 300 feet from goal line to goal line. The far end zone extends this comparison to 330 feet.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Description
The Uniview IPC2328SB-DZK-I0 lets you adjust the framing of a driveway, gate or building approach without replacing the lens. Its motorized 2.8-12mm lens moves from a wide 107.4-degree view to a tighter 29.2-degree view, giving installation flexibility when the subject is farther from the camera.
4K video runs at up to 20 fps, with 30 fps available in lower supported modes. Infrared illumination extends up to 164 feet, while 120 dB WDR helps balance bright and shaded areas. Person and vehicle perimeter detection, a 512GB microSD limit and PoE provide practical recording and installation options. Audio input and output support external equipment; this model has neither a built-in microphone nor a speaker.
Key Features
- 8MP: 3840 x 2160 at up to 20 fps; up to 30 fps at lower listed resolutions
- 2.8-12mm F1.6 motorized lens; horizontal FOV 107.4 to 29.2 degrees
- 1/2.8-inch CMOS; 120 dB WDR
- IR illumination up to 50m (164ft)
- Audio input/output; external microphone and speaker required for two-way audio
- MicroSD up to 512GB; Ultra 265, H.265, H.264 and MJPEG
- ONVIF profiles S, G, T and M
- 12V DC or IEEE 802.3af PoE; maximum 10.5W
- IP67 and IK10; 245 x 86 x 72mm (L x W x H); net weight 0.92kg
Full Specifications
- Megapixels:
- 8
- Resolution:
- 4K
- Field of View:
- 107.4° – 29.2°
- FPS:
- 20
- WDR:
- 120 dB
- Sensor:
- 1/2.8"
- Lens Type:
- Motorized
- Night Vision:
- IR
- Night Viewing Range:
- 164ft
- Smart Features:
- Enter/Leave Area Detection, Human Body Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm, Vehicle Detection
- Audio Features:
- 2-Way Audio (External Audio Devices Required), Audio Input, Audio Output
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Product Color:
- White
- Weight:
- 2.028 lbs
- Dimensions:
- 9.65 × 3.39 × 2.83 in
Night-viewing distances describe illumination reach, not guaranteed identification. Actual results depend on lighting, mounting, scene conditions and recording settings. Storage media is sold separately.
