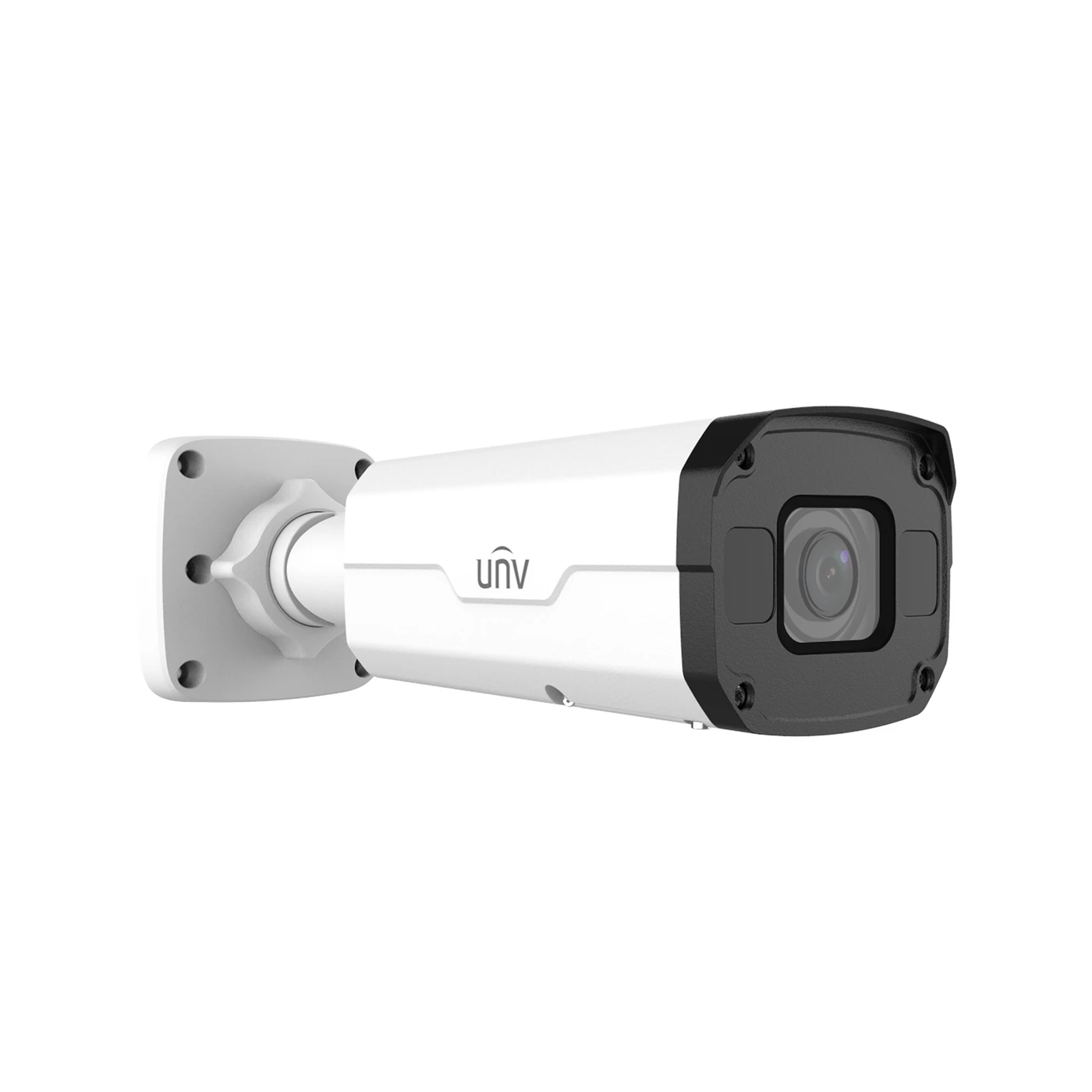

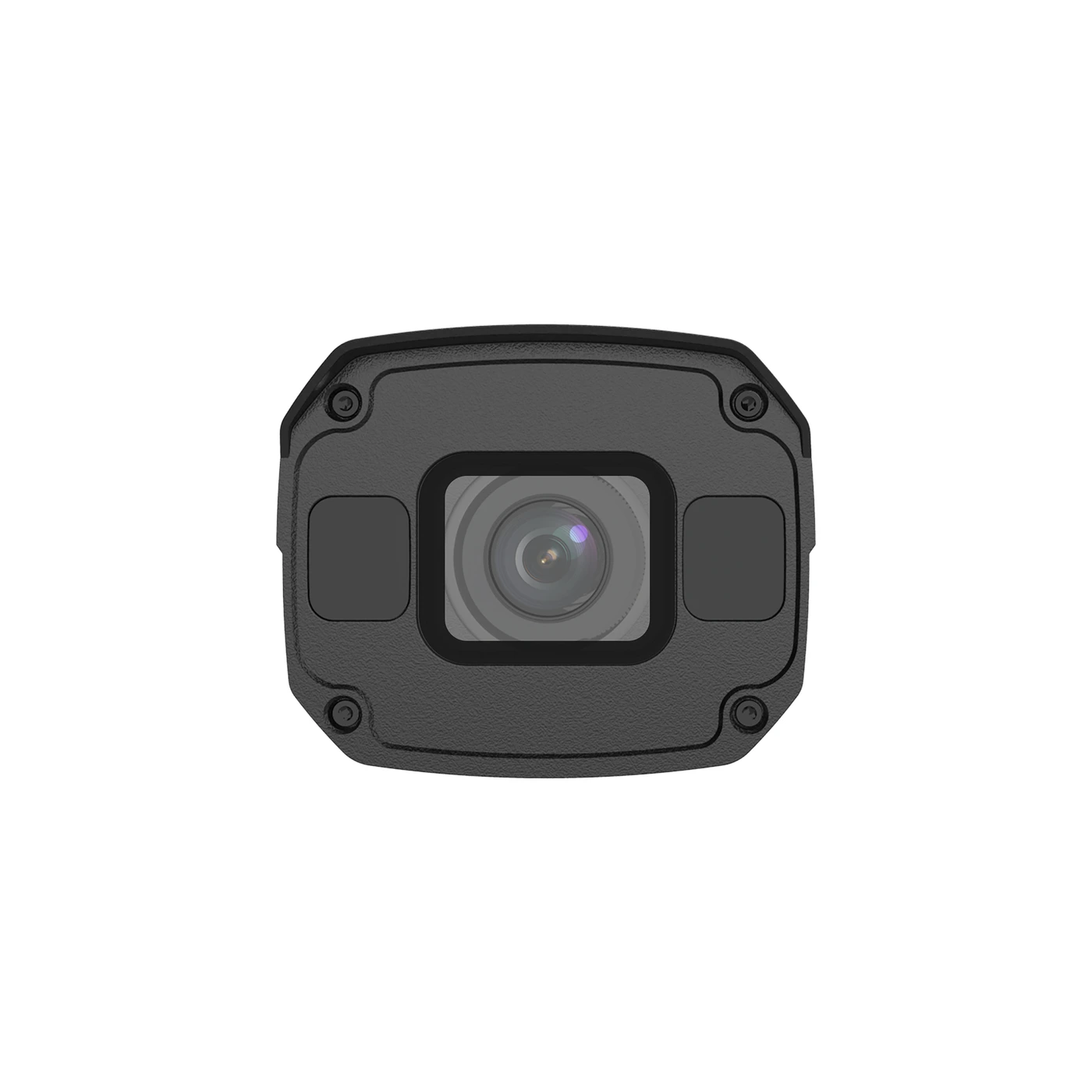

Uniview IPC2324SB-DZK-I0 4MP LightHunter 2.7-13.5mm Motorized IR Bullet IP Camera
$481.69
A motorized LightHunter bullet combines 30 fps 4MP capture, classified intrusion detection and external audio/alarm connections.
- Motorized 2.7-13.5 mm lens
- 4MP at up to 30 fps
- 50 m Smart IR
- External audio and alarm I/O
- IP67 and IK10 protection
Storage & Access
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 98.3° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
A football field is 300 feet from goal line to goal line. The far end zone extends this comparison to 330 feet.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Description
The IPC2324SB-DZK-I0 uses a 2.7-13.5 mm motorized lens with a horizontal view adjustable from 98.26 to 31.35 degrees. It records 2688 x 1520 at up to 30 fps and combines an F1.2 aperture with LightHunter imaging, 120 dB WDR and infrared illumination to 50 m.
Target-classifying intrusion prevention and people-flow counting help monitor site activity. Audio input/output and one alarm input/output allow connection to external devices; this model has no built-in microphone or speaker. An IP67 and IK10 metal enclosure, PoE and microSD support up to 512 GB support installations needing both adjustable framing and hardware integration.
Key Features
- 4MP video: 2688 x 1520, up to 30 fps
- Lens: 2.7 to 13.5 mm, motorized
- Horizontal field of view: 98.26 degrees to 31.35 degrees
- Sensor: 1/3" CMOS
- Wide dynamic range: 120 dB
- Infrared illumination: up to 50 m
- Encoding: Ultra 265, H.265, H.264, MJPEG
- No built-in microphone
- Audio input/output for external devices; no built-in speaker
- Alarm connections: one input and one output
- MicroSD storage: up to 512 GB
- ONVIF (Profile S, Profile G, Profile T, Profile M)
- Network: 10/100 Mbps RJ45 Ethernet
- Power: 12 V DC or IEEE 802.3af PoE
- Protection: IP67 and IK10
- Body dimensions: 245.4 x 85.4 x 86.4 mm (length x width x height)
- Camera weight: 0.92 kg
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2688 x 1520
- Field of View:
- 98.26° – 31.35°
- FPS:
- 30
- WDR:
- 120 dB
- Sensor:
- 1/3"
- Lens Type:
- Motorized
- Night Vision:
- IR
- Night Viewing Range:
- 164ft
- Smart Features:
- Enter/Leave Area Detection, Human Body Detection, Intelligent people flow counting, Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm, Vehicle Detection
- Audio Features:
- 2-Way Audio (External Audio Devices Required), Audio Input, Audio Output
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Storage Type:
- SD Card
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 2.028 lbs
- Dimensions:
- 9.66 × 3.36 × 3.40 in
