Allied 8MP Dual-Channel MultiView Dome Camera
$753.17
Monitor two directions from one compact housing with two independent 4MP views, 98-foot infrared, 130 dB WDR, smart perimeter analytics, dual microphones and IP67/IK10 protection.
- Two 4MP Views from One Dome Camera
- Watch Two Directions Without Two Mounts
- Two-Way Audio for Live Response
- Smart Crowd, Intrusion and Object Analytics
- IK10 and IP67 Protection
Storage & Access
24/7 On-Site Storage
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Smart Features
Crowd Density Detection
Smart Intrusion Prevention
Intrusion Detection
UMD (human,vehicle,non-motor vehicle) Detection
Directional Trip Wire
Object Removed Detection
Tampering Alarm
Object Left Behind Detection
Motion Detection
Audio Detection
Enter/Leave Area Detection
Intelligent perimeter protection
Intelligent people flow counting
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 97.7° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
2,688 horizontal pixels at 97.7°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description

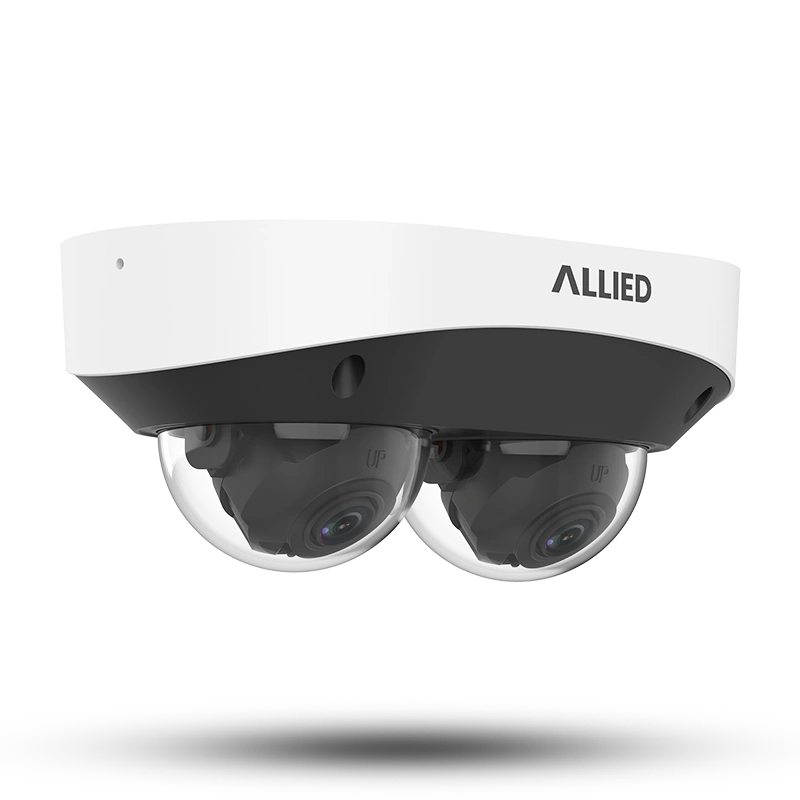

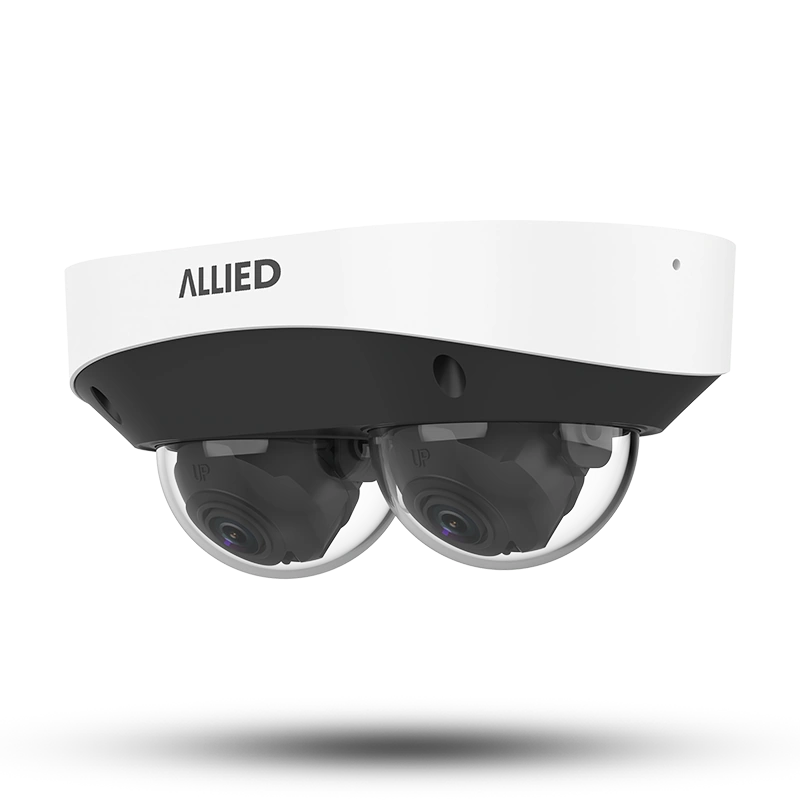

The Allied 8MP Dual-Channel MultiView Dome Camera watches two directions from one compact housing. Each lens produces its own 4MP view, so the camera can cover two related areas without stretching or stitching them into an artificial panorama. A single IP connection carries both channels, helping keep the installation cleaner at corners, intersecting walkways and other locations where two separate viewpoints make more sense than one extra-wide image.
Both 2.8mm fixed lenses can be aimed independently, with up to 180 degrees of pan, 66 degrees of tilt and 346 degrees of rotation during installation. Each channel provides a 97.68-degree horizontal field of view and records up to 2688 x 1520 at 25 frames per second. Positioned at the corner of a home or building, Allied’s dual-dome MultiView camera can watch a driveway and side yard, two hallway directions, a storefront and sidewalk, or a loading entrance and the area beside it from one mounting point.
Color sensitivity down to 0.002 lux, smart infrared up to 98.4 feet and 130 dB true WDR help both views handle low light, backlit doors and uneven exterior illumination. Highlight compensation, backlight compensation, digital defog and 2D/3D noise reduction provide additional image control when the scene includes glare, haze or deep shadows.
Smart Intrusion Prevention can apply line-crossing, intrusion, enter-area and leave-area rules to both channels while classifying people, vehicles and non-motor vehicles. Channel one also supports people-flow counting and crowd-density monitoring. Ultra Motion Detection, standard motion, tampering, audio, object-left-behind and object-removal events give customers more ways to organize alerts and recordings around the activity that matters.
Built-in dual microphones capture sound, and an audio input and output support two-way communication when a compatible external speaker is connected. A microSD card up to 512GB provides edge storage, while compatible NVR, NAS and ANR recording can protect footage as part of a larger system. PoE or 12V DC power, a metal IP67 and IK10 enclosure, 4kV surge protection and a -22 to 140 degree F operating range prepare it for demanding indoor or outdoor use. Allied Home Security aims each channel around the property’s actual risks, so the second view adds meaningful coverage instead of simply duplicating the first.
Key Features
- 8MP total coverage from two independent 4MP channels
- Single IP connection with two non-spliced camera views
- Up to 2688 x 1520 at 25 frames per second on each channel
- Two independently adjustable 2.8mm fixed lenses
- 97.68-degree horizontal field of view per channel
- Installation adjustment up to 180-degree pan, 66-degree tilt and 346-degree rotation
- Color sensitivity down to 0.002 lux
- Smart infrared illumination up to 98.4 feet
- 130 dB true wide dynamic range
- Highlight and backlight compensation, digital defog and 2D/3D noise reduction
- Smart Intrusion Prevention with human, vehicle and non-motor vehicle classification
- Line-crossing, intrusion, enter-area and leave-area detection
- People-flow counting and crowd-density monitoring on channel one
- Ultra Motion and standard motion detection
- Tampering and audio detection
- Object-left-behind and object-removal detection
- Built-in dual microphones for audio capture
- Two-way audio support through external audio input and output
- One alarm input and one alarm output
- MicroSD edge storage up to 512GB
- Compatible NVR, NAS and ANR recording support
- Triple-stream Ultra 265, H.265, H.264 and MJPEG video
- ONVIF Profile S, G, T and M integration support
- IEEE 802.3af PoE and 12V DC power options
- IP67 weather-resistant metal housing
- IK10 vandal-resistant construction
- 4kV surge protection
- Operating range from -22 to 140 degrees F
- Approximate dimensions of 6.9 x 4.1 x 2.8 inches
- Approximate product weight of 1.37 pounds
- FCC, CE, UL/cUL, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 8
- Resolution:
- 2K
- Field of View:
- 97.68°
- FPS:
- 25
- HDR:
- Yes
- WDR:
- 130 dB
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- IR
- Night Viewing Range:
- 98ft
- Smart Features:
- Audio Detection, Crowd Density Detection, Directional Trip Wire, Enter/Leave Area Detection, Intelligent people flow counting, Intelligent perimeter protection, Intrusion Detection, Motion Detection, Object Left Behind Detection, Object Removed Detection, Smart Intrusion Prevention, Tampering Alarm, UMD (human,vehicle,non-motor vehicle) Detection
- Audio Features:
- 2-Way Audio, Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.37 lbs
- Dimensions:
- 6.9 × 4.1 × 2.8 in
