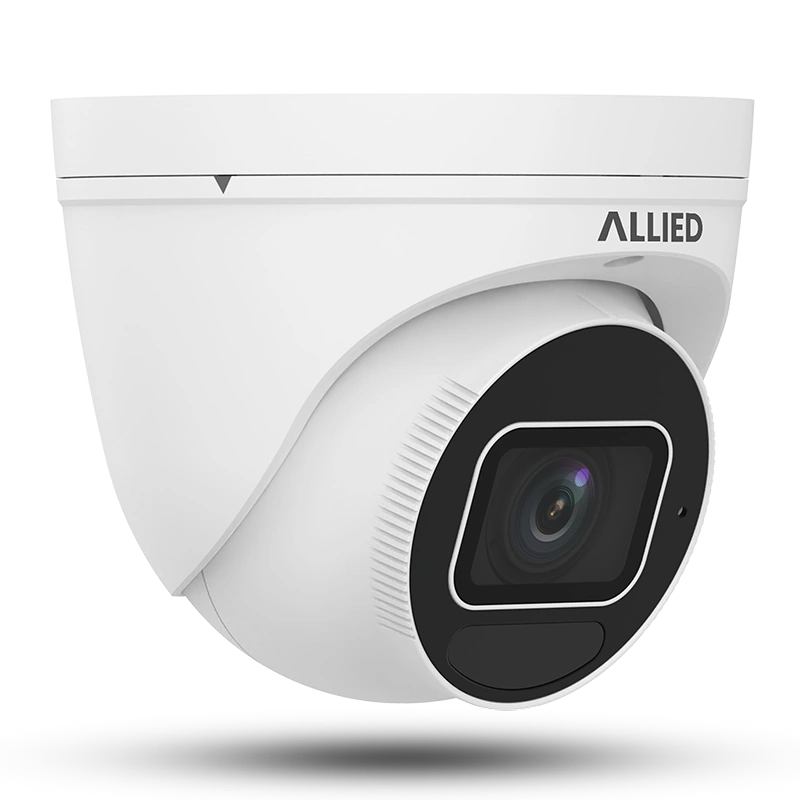

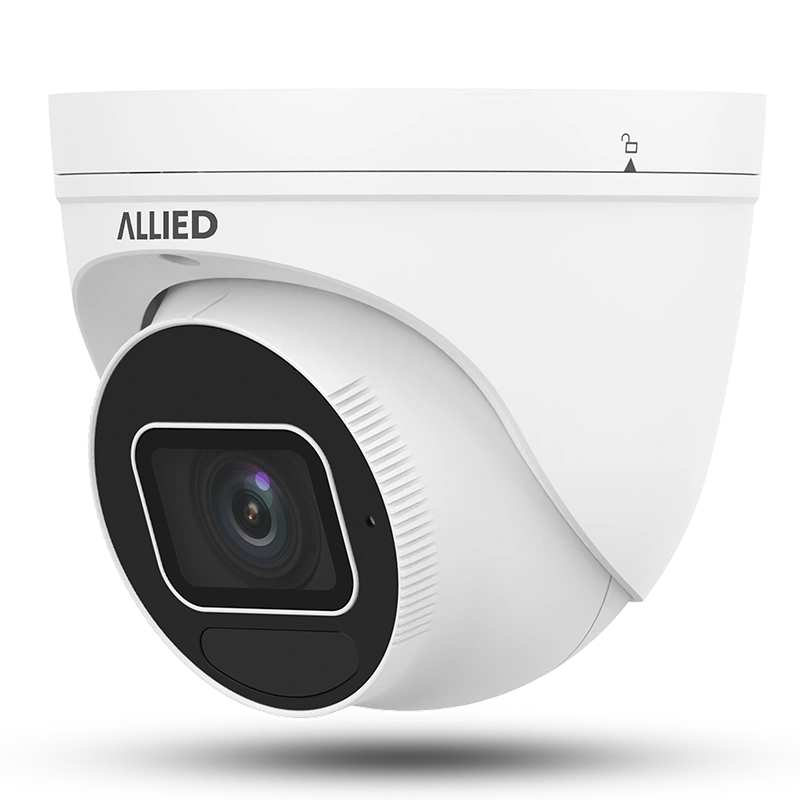

Allied 8MP 4K Motorized Varifocal IR Turret Camera
$803.25
Adjust the view after installation with a 2.8-12mm motorized lens. This 8MP 4K LightHunter turret combines 4X optical zoom, 131-foot Smart IR, person and vehicle analytics, 120 dB WDR, audio capture and MicroSD storage up to 512GB for demanding home or business locations.
- 4X Optical Zoom for Precise Scene Framing
- 4K Detail from Wide Views to Tight Close-Ups
- Long-Range IR Coverage out to 131 Feet
- IK10 Vandal Protection for Exposed Locations
- Advanced Analytics for Busy Properties
Storage & Access
24/7 On-Site Storage
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
3,840 horizontal pixels at 29.2°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description
The Allied 8MP 4K Motorized Varifocal IR Turret Camera gives the installer control over both scene width and viewing distance. Its 2.8-12mm autofocus lens moves from a broad 107.4-degree overview to a tighter 29.2-degree view, making one camera adaptable to driveways, gates, long hallways, parking areas, loading approaches and other locations where a fixed lens may show too much empty space or too little detail.
A 1/2.8-inch sensor records 3840 x 2160 video at up to 20 frames per second, while LightHunter technology improves image quality in low illumination. Smart IR reaches 131.2 feet without adding visible light, and 120 dB true WDR, highlight compensation, backlight compensation, digital defog and 2D/3D noise reduction help maintain a more useful picture around headlights, open doors, reflective pavement and deep shadows.
Smart Intrusion Prevention can classify people, motor vehicles and non-motor vehicles across line-crossing, intrusion, enter-area and leave-area rules. Ultra Motion Detection, standard motion, tampering and audio detection add more event options, while people-flow counting and crowd-density detection can help organize activity around a business entrance or shared area. The built-in microphone captures sound with the video, giving recorded events more context when audio is useful.
Because every property has different distances and choke points, Allied can tune this varifocal IR camera during a tailored home or business installation instead of accepting a fixed view. Footage can record to a MicroSD card up to 512GB or a compatible NVR, with ANR and NAS support for additional local-storage flexibility. PoE simplifies cabling, 12V DC offers another power option, and the metal IP67 and IK10 housing is built for exposed or higher-risk locations.
Key Features
- 8MP 4K video up to 3840 x 2160 at 20 frames per second
- Up to 30 frames per second at 5MP, 4MP and 1080p
- 1/2.8-inch progressive-scan CMOS sensor
- 2.8-12mm F1.6 autofocus motorized zoom lens
- Approximately 4X optical zoom range
- 107.4-to-29.2-degree horizontal field of view
- 54.2-to-16.3-degree vertical field of view
- LightHunter low-light imaging down to 0.0025 lux in color
- Smart infrared night viewing up to 131.2 feet
- 120 dB true wide dynamic range
- Highlight and backlight compensation, digital defog and 2D/3D noise reduction
- Smart Intrusion Prevention with person, motor-vehicle and non-motor-vehicle classification
- Line-crossing, intrusion, enter-area and leave-area detection
- Motion, Ultra Motion, tampering and audio detection
- People-flow counting and crowd-density detection
- Built-in microphone for audio capture
- MicroSD edge storage up to 512GB
- Compatible NVR, ANR and NAS recording support
- Ultra 265, H.265, H.264 and MJPEG compression with three video streams
- ONVIF Profile S, G, T and M integration support
- 10/100 Mbps Ethernet network connection
- IEEE 802.3af Power over Ethernet
- 12V DC alternate power input
- IP67 weather resistance and IK10 impact resistance
- 6kV surge protection
- Operating range from -22 to 140 degrees F
- Approximate dimensions of 5.1 x 5.1 x 4.3 inches
- Approximate product weight of 1.52 pounds
- FCC, CE, CB, UL/cUL, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 8
- Resolution:
- 4K
- Field of View:
- 107.4° – 29.2°
- FPS:
- 20
- WDR:
- 120 dB
- Sensor:
- 1/2.8"
- Lens Type:
- Motorized
- Optical Zoom:
- 4X
- Night Vision:
- IR
- Night Viewing Range:
- 131ft
- Smart Features:
- Audio Detection, Crowd Density Detection, Directional Trip Wire, Enter/Leave Area Detection, Intelligent people flow counting, Intelligent perimeter protection, Motion Detection, Smart Intrusion Prevention, Tampering Alarm, UMD (human,vehicle) Detection
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 1.52 lbs
- Dimensions:
- 5.1 × 5.1 × 4.3 in
