Allied 4MP Dual-Light IP Turret Camera with Microphone
$133.65
Protect entrances, driveways, work areas and interior spaces with 4MP video, 98-foot dual-light night viewing, person and vehicle detection, built-in audio capture and local storage up to 512GB in a compact IP67 turret camera.
- Sharp 2K Detail Without the Premium Price
- Dual-Light Night View up to 98 Feet
- Integrated Microphone Records Nearby Sound
- Filters Motion by People and Vehicles
- PoE Simplicity with Optional SD Backup
Storage & Access
24/7 On-Site Storage
Up to 512GB MicroSD
Access Anywhere
ONVIF Compatible
Resolution
Higher resolution records more pixels in each frame, which gives you more detail to work with when reviewing faces, vehicles, packages, and activity.
Resolution labels describe output dimensions. Aspect ratio, lens quality, sensor quality, lighting, compression, and recorder settings also affect usable image detail.
Field of View
The centered overlays compare this product's horizontal coverage with a representative industry average and the widest security camera in the Eco Smart catalog.
- This Product
- 95.1° horizontal
- Average
- 105° horizontal
- Max
- 180° horizontal*
*180° horizontal coverage generally requires a dual-lens panoramic camera.
Coverage is a centered visual comparison, not a lens simulation. Placement and mounting angle also affect the final view.
Night Vision
Night-vision technologies solve different problems. Compare the same scene below; this product's supported modes are highlighted.
On this product
IR Night Vision
Black-and-white visibility without visible light, ideal for discreet overnight monitoring.
On this product
Dual Light
Uses IR normally, then activates a spotlight for full-color detail when it matters.
Color Night Vision
Retains useful color from ambient light without requiring a visible spotlight.
Ultra Color Night Vision
Advanced low-light processing preserves the clearest color and background detail in very dark scenes.
The examples explain relative viewing modes. Actual brightness, color, and range depend on the camera, placement, and available ambient light.
Night Viewing Range
The bird's-eye property guide shows how the camera's listed nighttime range extends outward from its mounting point.
"Up to" is the manufacturer-listed maximum viewing or illumination distance. Recognizable detail may be shorter and varies with lighting, night-vision mode, weather, placement, lens settings, and obstructions.
Frame Rate
Frame rate measures how many images a camera records each second. Higher FPS makes fast movement appear smoother and easier to follow.
The highlighted lane shows this product's maximum listed frame rate. Actual FPS can vary by resolution, recording mode, recorder, and system settings.
Camera Detail Range
Each distance is calculated from this camera's horizontal resolution and best optical field of view. Digital zoom can enlarge recorded detail for review.
2,560 horizontal pixels at 95.1°
PPF-based estimateRecognition
Recognizing a person, pet or vehicle with full details.
Detection
Verifying a human or vehicle is present.
Total Viewing Range
General scene awareness and large-object movement.
Actual results depend on lighting, focus, mounting angle, subject movement, compression, weather, and installation. These are planning estimates, not guarantees of facial identification or moving-vehicle plate capture.
Description

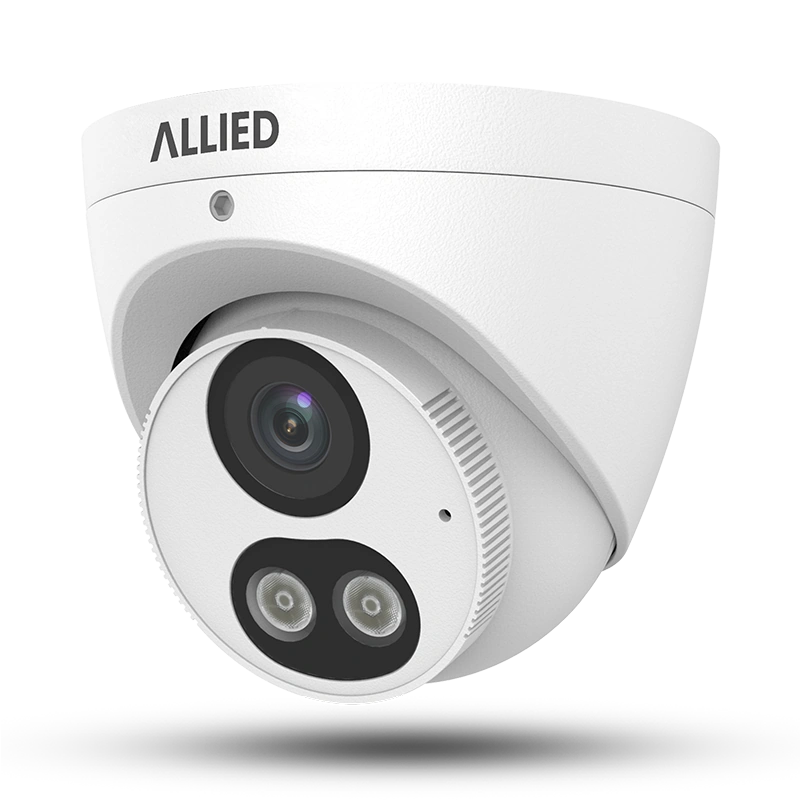

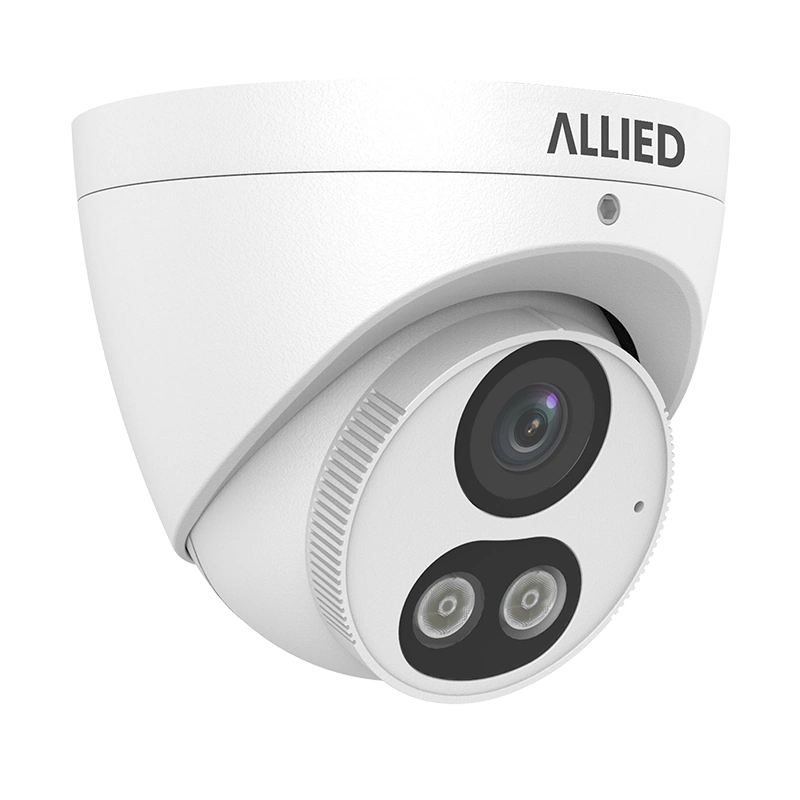

The Allied 4MP Dual-Light IP Turret Camera gives homes and businesses a clear, practical view of the areas that matter without depending on visible light around the clock. Its 2560 x 1440 image, wide 95.1-degree horizontal view and bright 2.8mm F1.6 lens are well suited to entrances, driveways, side yards, offices, stockrooms and customer-facing spaces.

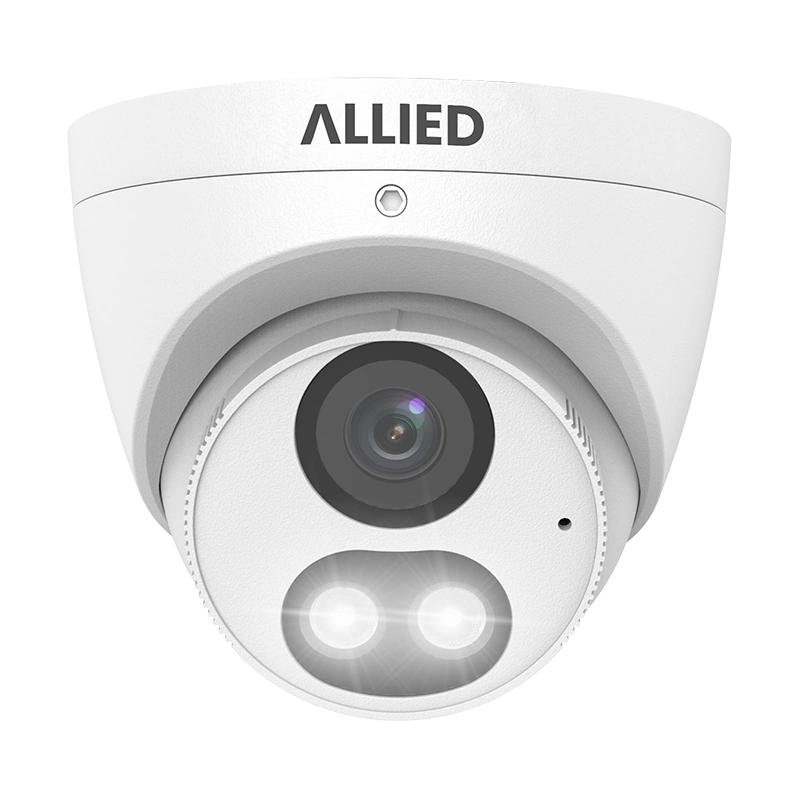

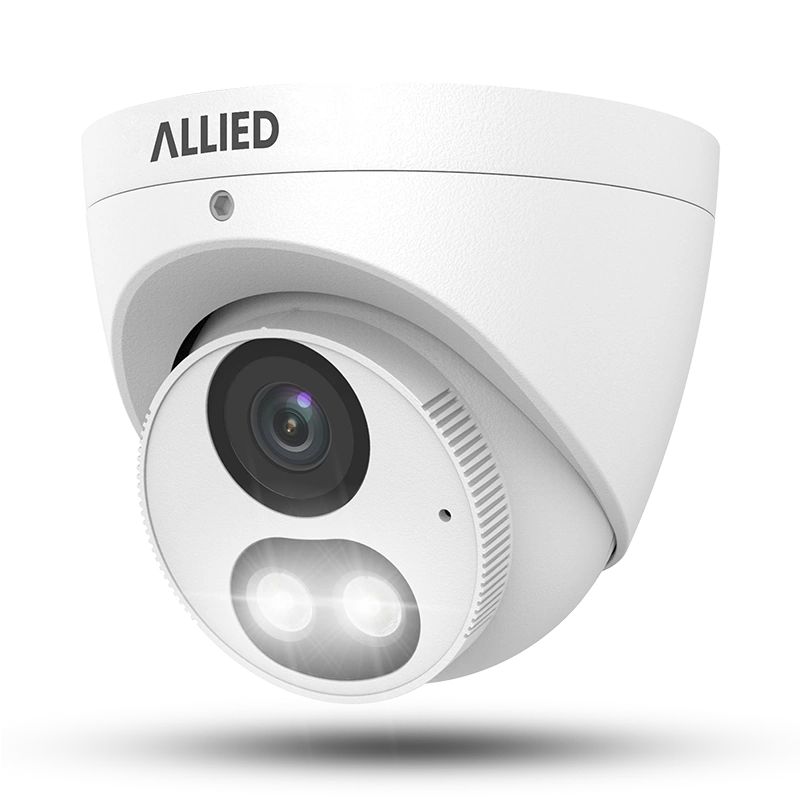

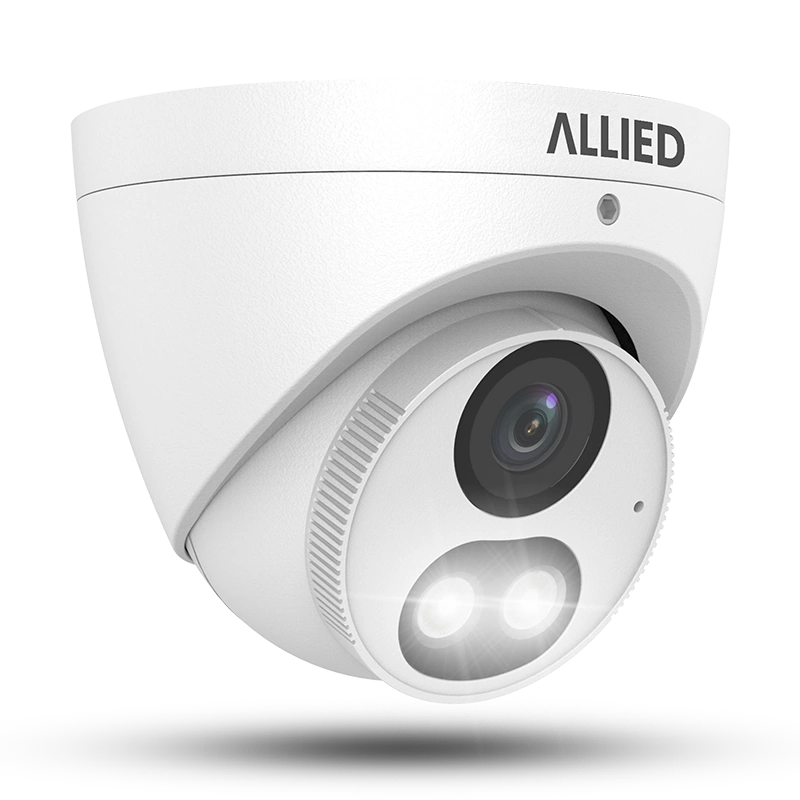

After dark, the camera supports infrared, warm-light and dual-light operation out to 98.4 feet. Infrared keeps routine monitoring discreet, while warm light can preserve useful color when a configured event calls for more visual detail. DWDR, highlight compensation, backlight compensation, digital defog and 2D/3D noise reduction help balance difficult scenes with bright doors, deep shadows or changing Texas weather.
Ultra Motion Detection distinguishes people and vehicles from ordinary movement, while standard motion, tampering and audio detection provide additional ways to identify activity. The built-in microphone records sound with the video, and footage can be stored on a MicroSD card up to 512GB or sent to a compatible NVR. ANR and NAS support add flexibility for systems that need dependable local recording and easier footage management.
For a tailored installation, Allied can use this dual-light IP camera around a home, office, shop or warehouse and position each view for the property instead of forcing a one-size-fits-all layout. PoE carries power and data over one Ethernet cable, 12V DC provides an alternate power option, and the IP67 housing is rated for indoor or outdoor operation from -22 to 140 degrees F.
Key Features
- 4MP video up to 2560 x 1440 at 25 frames per second
- 1/3-inch progressive-scan CMOS sensor
- Fixed 2.8mm F1.6 lens
- 95.1-degree horizontal, 51.6-degree vertical and 111.6-degree diagonal field of view
- Infrared night viewing up to 98.4 feet
- Warm-light night viewing up to 98.4 feet
- Infrared, warm-light and dual-light operating modes
- Ultra Motion Detection for people and vehicles
- Motion, tampering and audio detection
- Built-in microphone for audio capture
- DWDR with highlight and backlight compensation
- Digital defog, corridor mode and 2D/3D digital noise reduction
- MicroSD edge storage up to 512GB
- Compatible NVR, ANR and NAS recording support
- Ultra 265, H.265, H.264 and MJPEG compression
- 10/100 Mbps Ethernet network connection
- IEEE 802.3af Power over Ethernet
- 12V DC alternate power input
- IP67 weather-resistant housing
- Operating range from -22 to 140 degrees F
- Approximate dimensions of 4.6 x 4.6 x 3.9 inches
- Approximate product weight of 0.64 pounds
- FCC, CE, UL/cUL, RoHS, WEEE and NDAA compliance
Full Specifications
- Megapixels:
- 4
- Resolution:
- 2K
- Field of View:
- 95.1°
- FPS:
- 25
- WDR:
- DWDR
- Sensor:
- 1/3"
- Lens Type:
- Fixed
- Night Vision:
- IR, Dual Light
- Night Viewing Range:
- 98ft
- Smart Features:
- Audio Detection, Motion Detection, Tampering Alarm, UMD (human,vehicle) Detection
- Audio Features:
- Audio Capture
- Video Encoding Format:
- Ultra 265, H.265, H.264, MJPEG
- Max SD Storage:
- 512GB
- Connection Type:
- Wired
- ONVIF Compatible:
- Yes
- Wired Connection Type:
- IP
- Waterproof Rating:
- IP67
- Weight:
- 0.64 lbs
- Dimensions:
- 4.6 × 4.6 × 3.9 in
