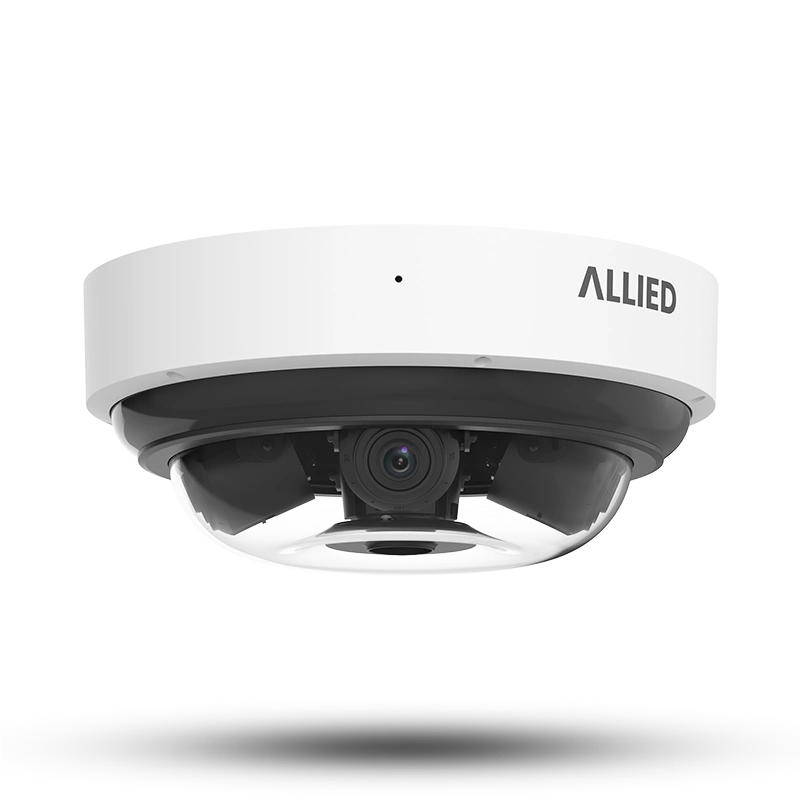

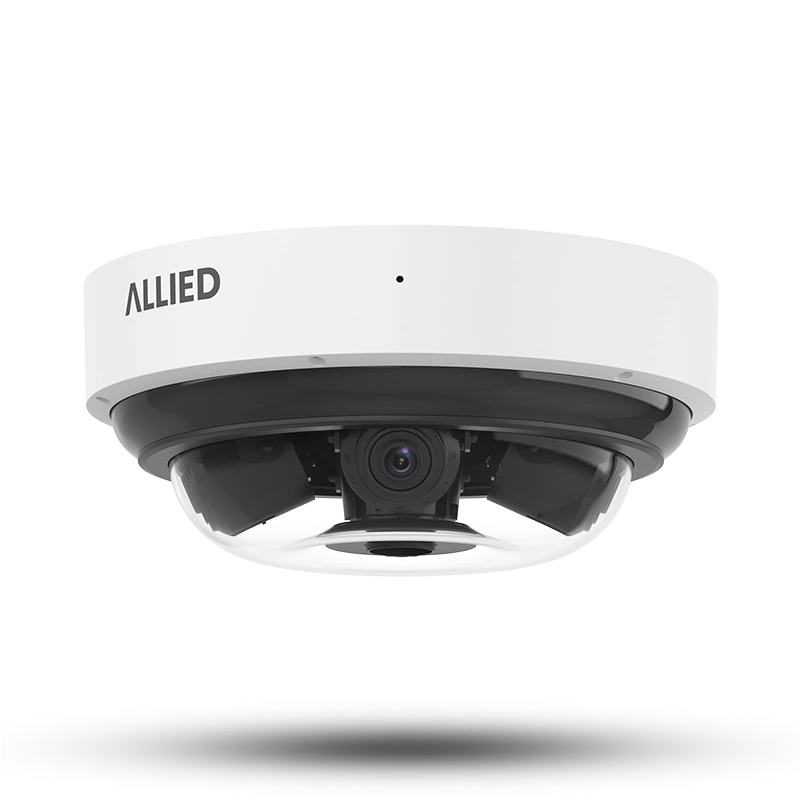

Allied 20MP Quad-Lens 360 Multi-Directional Dome Camera

The Allied 20MP Quad-Lens 360 Multi-Directional Dome Camera is built for properties where one fixed viewpoint cannot show the whole story. Four independent 5MP channels share a single rugged housing and network connection, giving a homeowner, estate manager or business four separately aimed views from one installation point. Each channel records up to 2880 x 1620 at 30 frames per second, delivering 20MP of total coverage without forcing four scenes into one distorted image.

Every lens can be positioned independently and uses a 2.7-13.5mm motorized varifocal lens with 5X optical zoom. At the wide end, each channel covers up to 110.3 degrees horizontally; at the telephoto end, it narrows to 31 degrees for more focused detail. Because Allied’s quad-lens 360 IP camera can shape four views around the property, it is especially useful for intersecting hallways, building corners, parking rows, warehouse aisles, loading areas and large residential approaches where several directions need attention at once.

LightHunter low-light processing, 130 dB true WDR and infrared illumination up to 164 feet help preserve usable footage through deep shadows, bright entrances and changing exterior light. Each channel can operate its own intelligent rules, including line crossing, intrusion, enter-area and leave-area detection with classification for people, vehicles and non-motor vehicles. People-flow counting, crowd-density monitoring, scene-change detection, defocus detection, object-left-behind alerts and object-removal alerts provide additional tools for complex sites.

A built-in microphone captures audio, while the camera’s audio input and output support two-way communication when a compatible external speaker is installed. Three alarm inputs and two outputs allow integration with other site devices. Recordings can be stored on a microSD card up to 512GB or sent to a compatible NVR, NAS or ANR recording system. Gigabit Ethernet and PoE++ carry network data and power through one connection, with 24V AC and 24V DC available as alternate power options.

The metal enclosure is rated IP67 for weather resistance and IK10 for impact protection. It operates from -22 to 140 degrees F, includes 6kV surge protection and is suited to demanding indoor or outdoor installations. Allied Home Security designs each camera layout around the property, the recording goals and the budget, so all four views are aimed with a purpose rather than treated as four generic angles.
