Honeywell Home T6 Pro TH6320ZW2007 Z-Wave Thermostat
$216.00
Upgrade compatible conventional or heat-pump equipment with a touchscreen thermostat, Z-Wave Plus SmartStart, flexible 3H/2C staging, and battery or C-wire power.
- Familiar Honeywell Touchscreen with Smart Control
- C-Wire Optional for More Installation Flexibility
- Local Scheduling Still Works Without the App
- Supports Up to 3 Heat and 2 Cool Stages
- Works with Conventional, Heat Pump and Dual-Fuel Systems
Description
The Honeywell Home T6 Pro TH6320ZW2007 is a low-voltage Z-Wave thermostat for compatible conventional systems up to two heat/two cool stages and heat pumps up to three heat/two cool stages. A clear touchscreen and familiar local controls make everyday temperature changes easy even when the connected platform is unavailable.
Three AA batteries can power supported configurations, or a C-wire can provide continuous 24V AC power. The UWP mounting system simplifies wall installation and future service, while Z-Wave Plus SmartStart supports enrollment with a compatible controller.
This model is a natural fit where a touchscreen smart thermostat needs broad HVAC compatibility without an oversized display. Document the existing wiring first, then configure conventional versus heat-pump logic, reversing valve, auxiliary heat, and stage limits before testing.
Key Features
- Up to 3 heat and 2 cool stages for compatible heat pumps
- Up to 2 heat and 2 cool stages for conventional HVAC
- Z-Wave Plus and SmartStart inclusion
- Touchscreen local controls
- Three AA battery or 24V AC C-wire power

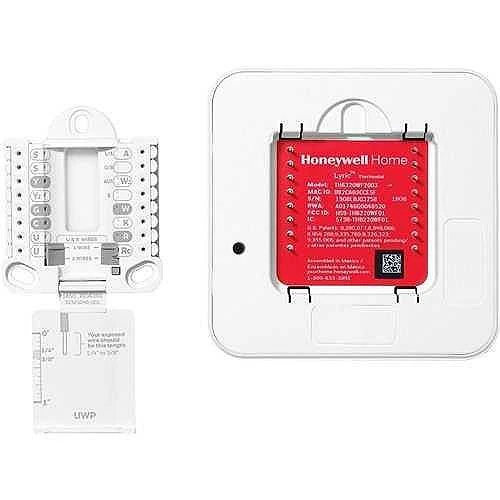

- Honeywell Home UWP wall-mount system
- Programmable local schedules
- Compressor protection and configurable cycle settings
- Approximately 4.09 x 4.09 x 1.06 in thermostat body
- White low-profile housing
Full Specifications
- Smart Home Protocol:
- Z-Wave Plus, Z-Wave SmartStart
- Wireless Connection Type:
- Z-Wave
- Wireless Frequency:
- 908.42 MHz
- Z-Wave Security:
- S2 Authenticated, SmartStart
- HVAC Compatibility:
- Conventional HVAC, Dual Fuel, Forced Air, Heat Pump
- HVAC Stages:
- Up to 3 Heat / 2 Cool
- Thermostat Features:
- Battery Power Option, C-Wire Optional, Energy-Saving Schedules, Local Scheduling, Remote App Control, Touchscreen Display
- Battery Type:
- 3 x AA Alkaline
- Power Input:
- 24V AC
- Mounting Type:
- Wall Mount
- Operating Temperature Range:
- 41 to 95 F
- Placement:
- Indoor
- Recommended Application:
- Light Commercial, Residential
- Device Type:
- Smart Thermostat
- Lifecycle Status:
- Active
- Product Color:
- White
- System Type:
- Smart Thermostat
- Weight:
- 0.95 lbs
- Dimensions:
- 6 × 5 × 2.6 in
