Resideo LTEM-XA AT&T LTE Cat M1 Communicator
$236.25
Compatible with VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP, VISTA-250BP, VISTA-250BPE, VISTA-250BPT Control Panels
Give compatible VISTA controls an updated reporting path with an AT&T LTE Cat M1 communicator, secure AlarmNet delivery, remote diagnostics, and optional Total Connect services.
Description
The Resideo LTEM-XA replaces aging telephone and earlier cellular reporting technology with an AT&T LTE Cat M1 connection for compatible VISTA panels. It receives Contact ID events through the panel’s ECP bus and sends them to Resideo’s redundant AlarmNet network for routing to the assigned monitoring station.
This focused upgrade is useful when the VISTA control, field wiring, and enrolled devices remain a good fit. Allied can retain that working foundation, install the communicator outside the metal panel cabinet, and configure optional Total Connect access for supported remote security controls, video, and real-time notifications.
Diagnostic LEDs show cellular signal and operating status, while AlarmNet quality-of-service data helps confirm delivery.
Key Features
- AT&T LTE Cat M1 cellular communication
- AlarmNet event delivery
- Optional Total Connect remote access
- 256-bit AES communications encryption
- Compatible VISTA ECP-bus integration

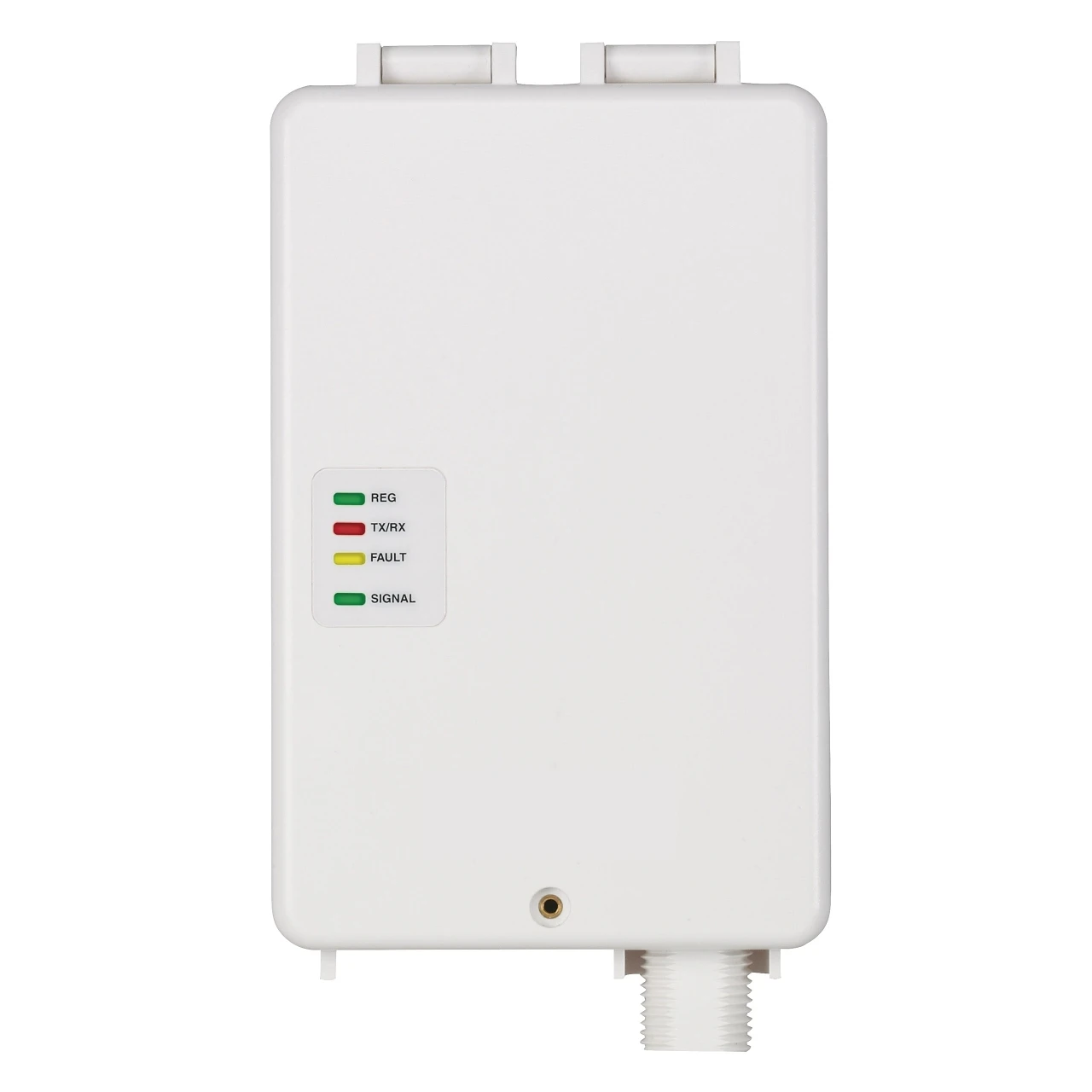

- LED signal and status diagnostics
- Remote programming support on select panels
- Over-the-air firmware updates
Full Specifications
- Cellular Carrier:
- AT&T
- Cellular Generation:
- LTE Cat M1
- Compatible Communications:
- AlarmNet LTE, Resideo Total Connect 2.0
- Compatible Panels:
- VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP, VISTA-250BP, VISTA-250BPE, VISTA-250BPT
- Wired Connection Type:
- ECP Bus
- Wireless Connection Type:
- Cellular
- Power Input:
- 12V DC
- Powered by:
- DC
- Compliance & Certifications:
- ETL
- Mounting Type:
- Wall Mount
- Recommended Application:
- Light Commercial, Residential
- Product Color:
- White
- System Type:
- Cellular Communicator
- Weight:
- 0.5 lbs
- Dimensions:
- 7 × 4 × 1.75 in
Compatibility depends on the exact VISTA model and revision, and an active monitoring or interactive-services subscription is required for the corresponding connected features.
