Ecolink WST-600 FireFighter Smoke/CO Audio Sensor
$46.39
Connect existing UL-listed alarms to a compatible DSC system with an audio sensor that recognizes Temporal 3 smoke and Temporal 4 CO alarm patterns.
Description
The Ecolink WST-600 FireFighter listens for the standardized alarm tones produced by an existing UL-listed smoke or carbon-monoxide detector. When it confirms a Temporal 3 smoke pattern or Temporal 4 CO pattern, it transmits the corresponding signal to a compatible DSC 433 MHz system for the programmed local and monitored response.

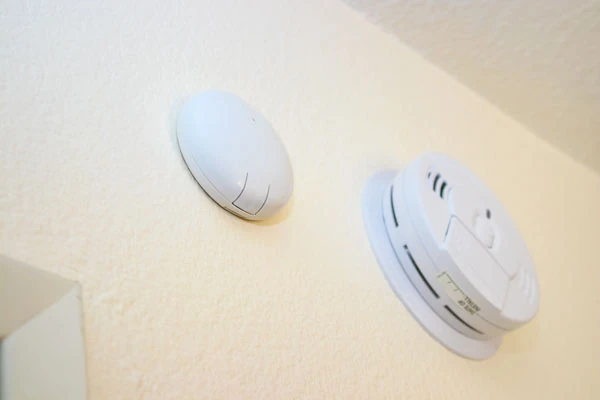

The sensor mounts with its listening ports facing the existing alarm’s sounder and must remain within six inches for proper operation. One FireFighter may monitor an interconnected alarm group because all sounders activate together; non-interconnected alarms require a listener at each sounder that needs monitoring. Separate smoke and CO serial-number programming allows the panel to distinguish the two alarm types.
This device can extend monitoring around existing smoke and CO alarms without replacing their primary sensing function.
Key Features
- Listens to existing UL-listed smoke and CO alarms
- Recognizes Temporal 3 smoke-alarm patterns
- Recognizes Temporal 4 carbon-monoxide patterns
- Separate smoke and CO panel enrollment
- Maximum six-inch listening distance
- Works with interconnected or individual alarm layouts
- 433 MHz DSC-system compatibility
- Tamper, low-battery, and periodic supervision
- Single replaceable CR123A battery
- Conservative four-year manual-rated battery life
- 32 to 120 F operating range
- Wall or ceiling mounting near the alarm sounder
Full Specifications
- Detection Type:
- Carbon Monoxide Alarm Sound, Smoke Alarm Sound
- Sensor Compatibility:
- DSC 433 MHz Wireless Devices via compatible receiver
- Sensor Supervision:
- Alarm, Low Battery, Periodic Check-In, Tamper
- Sensor Technology:
- Acoustic Pattern Recognition
- Sensor Type:
- Smoke/CO Alarm Listener
- Connection Type:
- Wireless
- Wireless Connection Type:
- 433 MHz SRF
- Wireless Frequency:
- 433 MHz
- Battery Type:
- CR123A
- Powered by:
- Battery
- Projected Battery Life:
- Up to 4 years
- Mounting Type:
- Ceiling Mount, Wall Mount
- Operating Temperature Range:
- 32 to 120 F
- Placement:
- Indoor
- Recommended Application:
- Residential
- Product Color:
- White
- System Type:
- Life Safety Sensor
- Weight:
- 0.46 lbs
- Dimensions:
- 3.125 × 3.125 × 1 in
The WST-600 does not detect smoke, heat, fire, or carbon monoxide directly; those hazards must first activate a maintained, compatible alarm, and Allied tests the complete audio and radio path after installation.
