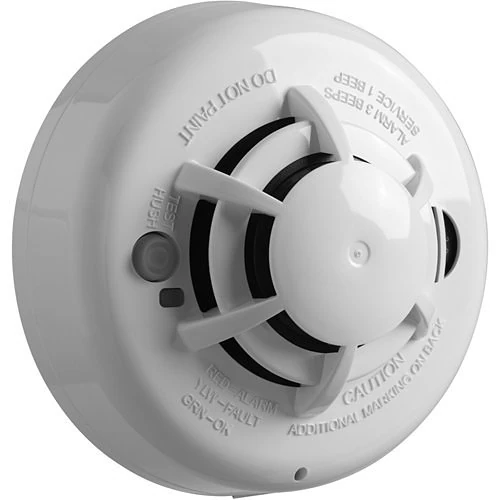

DSC PG9936 PowerG Wireless Smoke and Heat Detector
$122.23
Compatible with PowerSeries Neo, PowerSeries Pro, Qolsys PowerG Panels Control Panels
Add monitored fire detection without new signal wiring using a PowerG photoelectric smoke and 135 F heat sensor with an 85 dB sounder.
Description
The DSC PG9936 is a two-way PowerG smoke and heat detector for compatible security panels. Its photoelectric chamber looks for smoke particles, while the heat channel responds at approximately 135 F, giving the system two distinct ways to recognize developing fire conditions in an approved indoor location.
A built-in 85 dB sounder provides local notification, and three AAA alkaline batteries are rated for up to three years of typical service. Tamper, low-battery, and supervisory reports help the panel identify service conditions instead of leaving the detector isolated from the rest of the alarm system.
For customers who want fire events tied into a professionally monitored home security system, Allied can verify panel compatibility, wireless signal quality, detector placement, and monitoring-zone programming.
Key Features
- Photoelectric smoke detection
- Fixed-temperature heat detection at approximately 135 F
- Built-in 85 dB alarm sounder
- Two-way 915 MHz PowerG communication
- Three AAA alkaline batteries
- Up to 3-year typical battery life
- Tamper, low-battery, and supervision reporting
- Visible link-quality indication
- UL, ULC, FCC, IC, and CSFM approvals
Full Specifications
- Detection Type:
- Fixed-Temperature Heat, Smoke
- Sensor Supervision:
- Alarm, Low Battery, Periodic Check-In, Tamper
- Sensor Technology:
- Electronic Heat Sensor, Photoelectric
- Sensor Type:
- Smoke/Heat Detector
- Audio Features:
- Audible Siren
- Built-in Siren:
- 85 dB
- Compatible Panels:
- PowerSeries Neo, PowerSeries Pro, Qolsys PowerG Panels
- Connection Type:
- Wireless
- Encryption:
- AES-128 Encrypted
- Wireless Connection Type:
- PowerG
- Wireless Frequency:
- 915 MHz
- Wireless Range (Open Air):
- Up to 1.24 miles
- Battery Type:
- 3 x AAA Alkaline
- Powered by:
- Battery
- Projected Battery Life:
- Up to 3 years
- Mounting Type:
- Ceiling Mount, Surface Mount
- Operating Temperature Range:
- 40 to 100 F
- Placement:
- Indoor
- Recommended Application:
- Light Commercial, Residential
- Product Color:
- White
- System Type:
- Life Safety Sensor
- Weight:
- 0.536 lbs
- Dimensions:
- 5 × 5 × 2.5 in
Final spacing and application must follow the installation guide, applicable codes, and the authority having jurisdiction.
