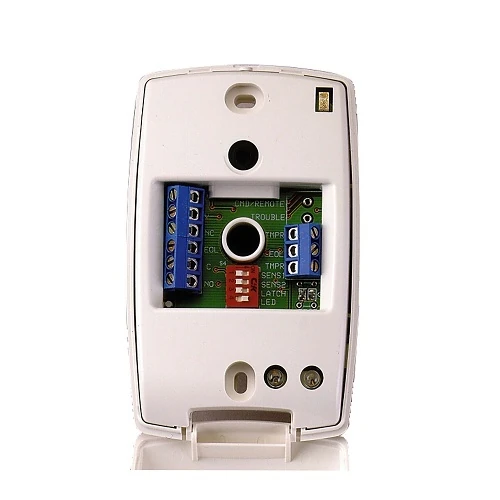

Honeywell Home FG1625 FlexGuard Glass Break Detector

The Honeywell Home FG1625 is a surface-mounted acoustic detector for rooms with framed windows, patio doors, display glass, or other vulnerable glazing. It evaluates the flex and high-frequency characteristics associated with an impact and shattering event instead of reacting to one loud sound alone.

Four sensitivity settings tailor the range from approximately 5 to 25 ft, and the final position can be verified with the FG701 glass-break simulator. The detector supports plate, tempered, laminated, wired, coated, and sealed insulating glass within the thickness limits in the installation guide. Multiple-domain analysis, a Form A alarm relay, optional LED latching, and automatic exit from test mode help the device remain practical after commissioning. Power requirements are 8-16V DC at 12 mA typical.

In a monitored home security system or small-business layout, glass-break detection can add perimeter awareness while occupants are still inside. Allied chooses the wall or ceiling position around curtains, HVAC noise, room acoustics, and the exact panes being protected, then tests the completed installation rather than assuming every room will deliver the maximum range.
