DSC PowerSeries Neo HS2032 Security Kit with HS2LCD Keypad – HS32-51CP01
$236.25
Start a 32-zone PowerSeries Neo system with an HS2032 panel in a PC5003C cabinet, HS2LCD full-message keypad, SD15WULF indoor siren, 12V 7Ah battery, and PTD1640U transformer.
Description
The DSC HS32-51CP01 gathers the core hardware for a professionally installed PowerSeries Neo system into one package. It combines the HS2032 control panel and PC5003C cabinet with an HS2LCD full-message keypad, SD15WULF indoor siren, BD7-12 7Ah backup battery, and PTD1640U transformer.
The HS2032 provides eight onboard hardwired zones and expands to 32 total zones, four partitions, 72 users, eight supervised keypads, and a 500-event history. Two onboard PGM outputs can expand to 38, giving the system room for compatible output modules and property-specific functions.

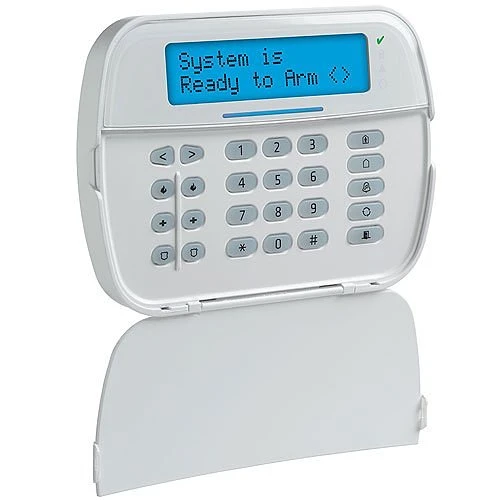

The included HS2LCD is a clear alphanumeric keypad, but it does not contain a PowerG receiver.
Key Features
- HS2032 PowerSeries Neo control panel with CP-01 software
- PC5003C metal control cabinet
- HS2LCD full-message hardwired keypad

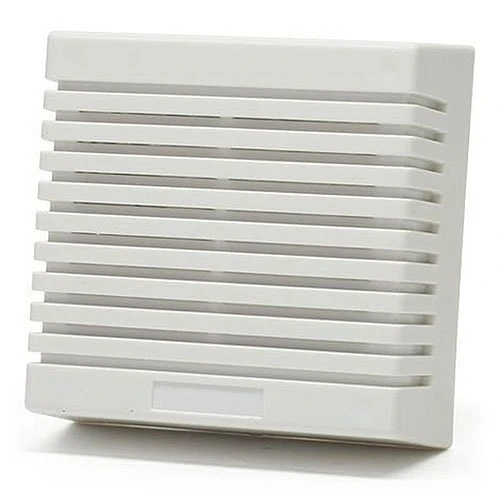

- SD15WULF 15-watt indoor dual-tone siren
- BD7-12 12V 7Ah backup battery
- PTD1640U 16.5V 40VA transformer
- Eight onboard zones and up to 32 total zones
- Four partitions, 72 users, and 500 logged events
- Two onboard PGM outputs, expandable to 38
- PowerG receiver and communication hardware sold separately
Full Specifications
- Sensor Compatibility:
- PowerG via compatible transceiver
- Compatible Communications:
- Alarm.com, DSC IP Communicators, DSC LTE Communicators
- Smart Home Protocol:
- Z-Wave via compatible Alarm.com communicator
- Wired Connection Type:
- Corbus
- Wireless Frequency:
- 915 MHz
- Event Log Capacity:
- 500
- Hardwired Zones:
- 8
- Maximum PGM Outputs:
- 38
- Maximum Supervised Keypads:
- 8
- Maximum Total Zones:
- 32
- Maximum Wireless Zones:
- 32
- Onboard PGM Outputs:
- 2
- Partitions:
- 4
- User Codes:
- 72
- Control Panel Features:
- PowerG Compatibility, Multi-Area Control, Hybrid Wired & Wireless, Existing System Takeover Ready, Modular Expansion, Life-Safety Device Support, Event History
- Powered by:
- AC/DC
- Compliance & Certifications:
- SIA CP-01 Compliant, UL-Listed
- Recommended Application:
- Light Commercial, Residential
- Kit Includes:
- 12V 7Ah Backup Battery, HS2032 Control Panel and PC5003C Cabinet, HS2LCD Keypad, PTD1640U Transformer, SD15WULF Indoor Siren
- Product Configuration:
- Security Kit
- System Type:
- Hybrid
- Weight:
- 6 lbs
PowerG sensors require a compatible HSM2HOST9 or PowerG RF keypad selected separately.
Cellular/IP communication, Alarm.com services, Z-Wave control, and all detection devices are also chosen separately for the final system design.
