DSC PowerSeries Neo HS2032 PowerG Security Kit – HS32-119CP01
$303.75
Build a 32-zone Neo system with the PowerG receiver already in the keypad. The kit includes an HS2032 panel and cabinet, HS2LCDRF9ENG keypad/transceiver, indoor siren, 4Ah battery, and transformer.
Description
The DSC HS32-119CP01 is the more wireless-ready HS2032 package. Its HS2LCDRF9ENG full-message keypad includes the 915 MHz PowerG transceiver, so compatible PowerG contacts, motions, life-safety devices, and other sensors can be planned without adding a separate HSM2HOST9 receiver.
The kit also supplies the HS2032 control panel in a PC5003C cabinet, an SD15WULF indoor siren, BD4-12 4Ah backup battery, and PTD1640U transformer. The panel supports 32 total zones, four partitions, 72 users, eight supervised keypads, and 500 logged events, with two onboard PGM outputs expandable to 38.
PowerG’s encrypted two-way wireless technology is built into the included keypad, but the sensors themselves are selected separately. That lets the installation use the carrier, service, automation features, and detection devices that fit the property.
Key Features
- HS2032 PowerSeries Neo control panel with CP-01 software
- PC5003C metal control cabinet

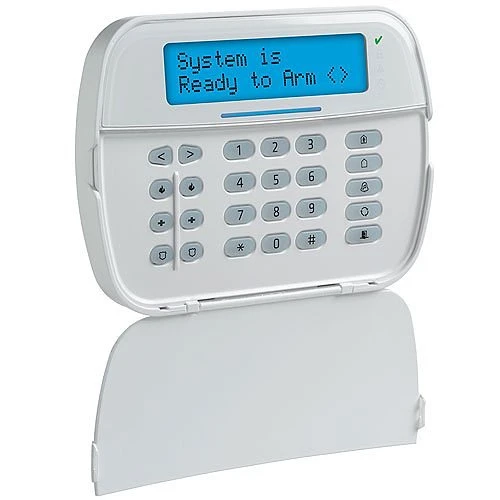

- HS2LCDRF9ENG keypad with built-in 915 MHz PowerG transceiver
- SD15WULF 15-watt indoor dual-tone siren
- BD4-12 12V 4Ah backup battery
- PTD1640U 16.5V 40VA transformer
- Eight onboard zones and up to 32 total zones
- Four partitions, 72 users, and 500-event history
- Two onboard PGM outputs, expandable to 38
- PowerG sensors and communication services selected separately
Full Specifications
- Sensor Compatibility:
- PowerG via compatible transceiver
- Compatible Communications:
- Alarm.com, DSC IP Communicators, DSC LTE Communicators
- Smart Home Protocol:
- Z-Wave via compatible Alarm.com communicator
- Wired Connection Type:
- Corbus
- Wireless Frequency:
- 915 MHz
- Event Log Capacity:
- 500
- Hardwired Zones:
- 8
- Maximum PGM Outputs:
- 38
- Maximum Supervised Keypads:
- 8
- Maximum Total Zones:
- 32
- Maximum Wireless Zones:
- 32
- Onboard PGM Outputs:
- 2
- Partitions:
- 4
- User Codes:
- 72
- Control Panel Features:
- PowerG Compatibility, Multi-Area Control, Hybrid Wired & Wireless, Existing System Takeover Ready, Modular Expansion, Life-Safety Device Support, Event History
- Powered by:
- AC/DC
- Compliance & Certifications:
- SIA CP-01 Compliant, UL-Listed
- Recommended Application:
- Light Commercial, Residential
- Kit Includes:
- 12V 4Ah Backup Battery, HS2032 Control Panel and PC5003C Cabinet, HS2LCDRF9ENG Keypad/PowerG Transceiver, PTD1640U Transformer, SD15WULF Indoor Siren
- Product Configuration:
- Security Kit
- System Type:
- Hybrid
- Weight:
- 6 lbs
An Alarm.com cellular/IP communicator is also optional and not included.
