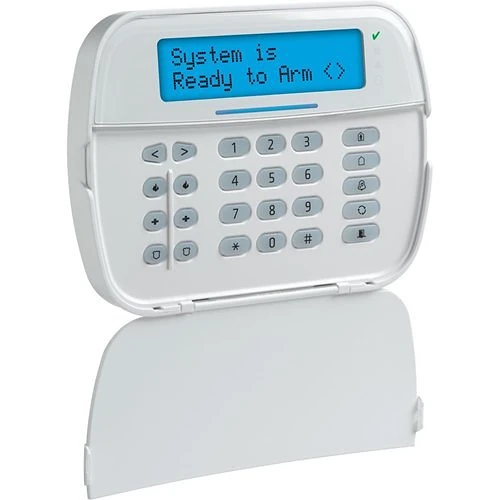

DSC HS2LCDRFP9 PowerG Proximity Keypad
$244.35
Compatible with PowerSeries Neo HS2016, PowerSeries Neo HS2032, PowerSeries Neo HS2064, PowerSeries Neo HS2128 Control Panels
Bring text-guided control, prox-tag access, and PowerG expansion together in a hardwired Neo keypad with a 2 x 16 LCD and built-in 915 MHz transceiver.
- Tap-to-Arm Proximity Reader Built In
- PowerG Receiver Supports Up to 128 Wireless Zones
- Full Messages and Custom Zone Names
- Keypad, Proximity Reader and Receiver in One
- Built for Larger PowerSeries Neo Systems
Description
The DSC HS2LCDRFP9 is the most fully equipped model in the HS2 full-message keypad family. It combines a 32-character text interface, an MPT proximity-tag reader, and a 915 MHz PowerG transceiver, allowing one keypad to handle user interaction and the panel’s compatible wireless-device communication.
At home, the tag reader gives family members an alternative to entering a code. In an Allied business security system, individual tags can make opening and closing procedures easier for approved staff. Clear zone labels, partition status, programmable keys, and the I/O terminal give the installer room to shape the keypad around the property.
The integrated transceiver supports the connected panel’s PowerG capacity, up to 128 wireless zones.
Key Features
- Built-in 915 MHz PowerG transceiver
- Integrated MPT mini proximity-tag reader
- Code or tag-based arming and disarming
- 2 x 16 full-message blue LCD
- 32-character custom zone labels
- Global partition status and multi-language menus
- Five programmable function keys
- Configurable I/O terminal
- Emergency controls and adjustable chimes
- Front-cover and wall-mount tamper protection
Full Specifications
- Compatible Panels:
- PowerSeries Neo HS2016, PowerSeries Neo HS2032, PowerSeries Neo HS2064, PowerSeries Neo HS2128
- Wired Connection Type:
- Corbus
- Wireless Connection Type:
- PowerG
- Wireless Frequency:
- 915 MHz
- Integrated Wireless Receiver Capacity:
- 128 Zones
- Maximum Compatible Keypads:
- 16
- Maximum Total Zones:
- 128
- Display Characters:
- 32 Character
- Display Language:
- English, Multilingual
- Display Type:
- Full-Message LCD
- Keypad Features:
- Arm/Disarm Controls, Audible Chimes and Alerts, Built-in PowerG Transceiver, Custom Zone Labels, Emergency Keys, Global Partition Status, Input/Output Terminal, Low-Temperature Sensor, Menu Programming, Outdoor Temperature Display, Programmable Function Keys, Proximity Reader, Status LEDs, Tamper Protection
- Keypad Interface:
- Physical Buttons
- Keypad Orientation:
- Landscape
- Power Input:
- 12V DC
- Powered by:
- DC
- Mounting Type:
- Wall Mount
- Recommended Application:
- Commercial, Light Commercial, Residential
- Product Color:
- White
- Weight:
- 0.57 lbs
- Dimensions:
- 6.61 × 4.80 × 0.79 in
Tags still need to be enrolled to authorized users, and final device capacity depends on the specific PowerSeries Neo control panel.
