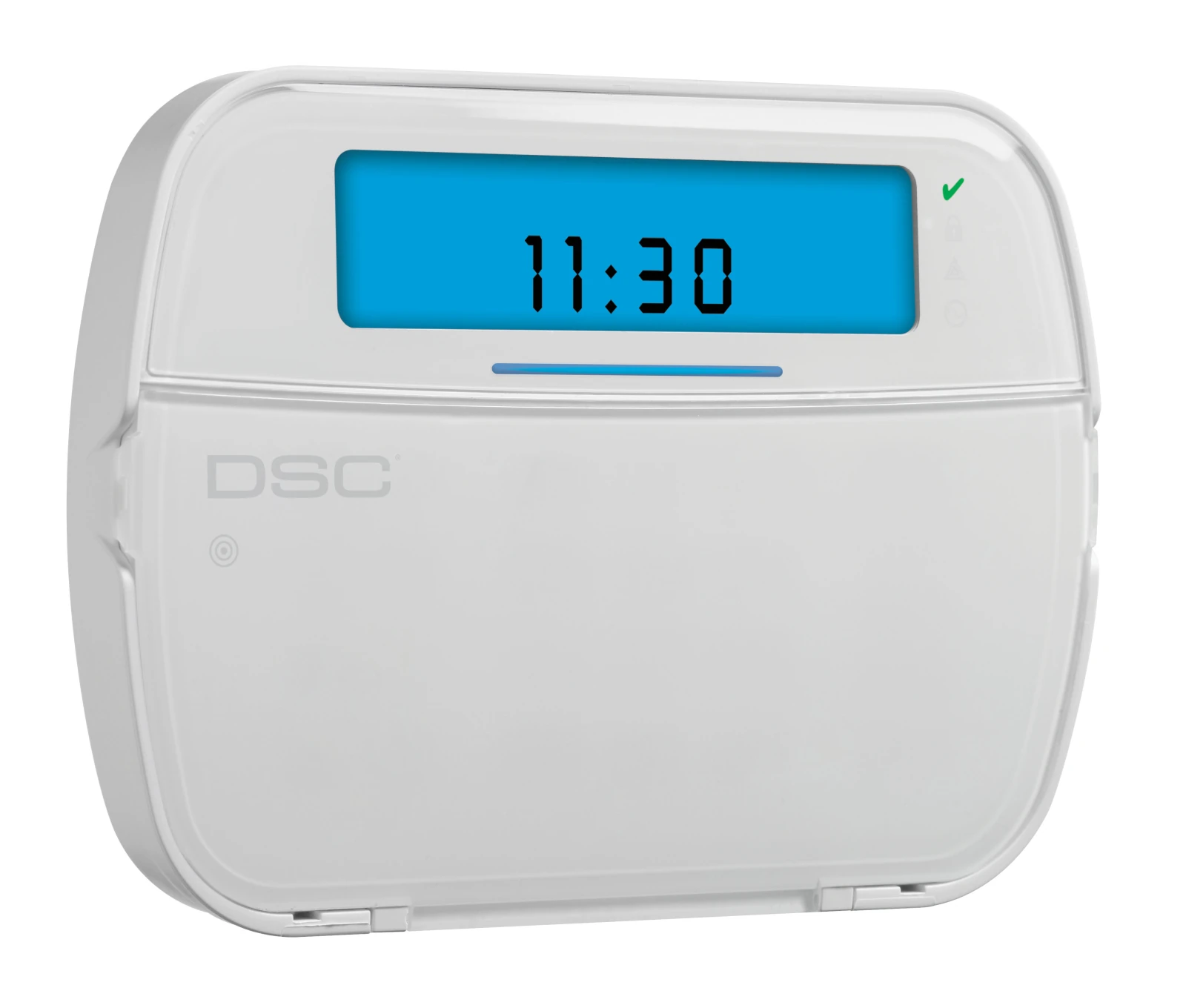

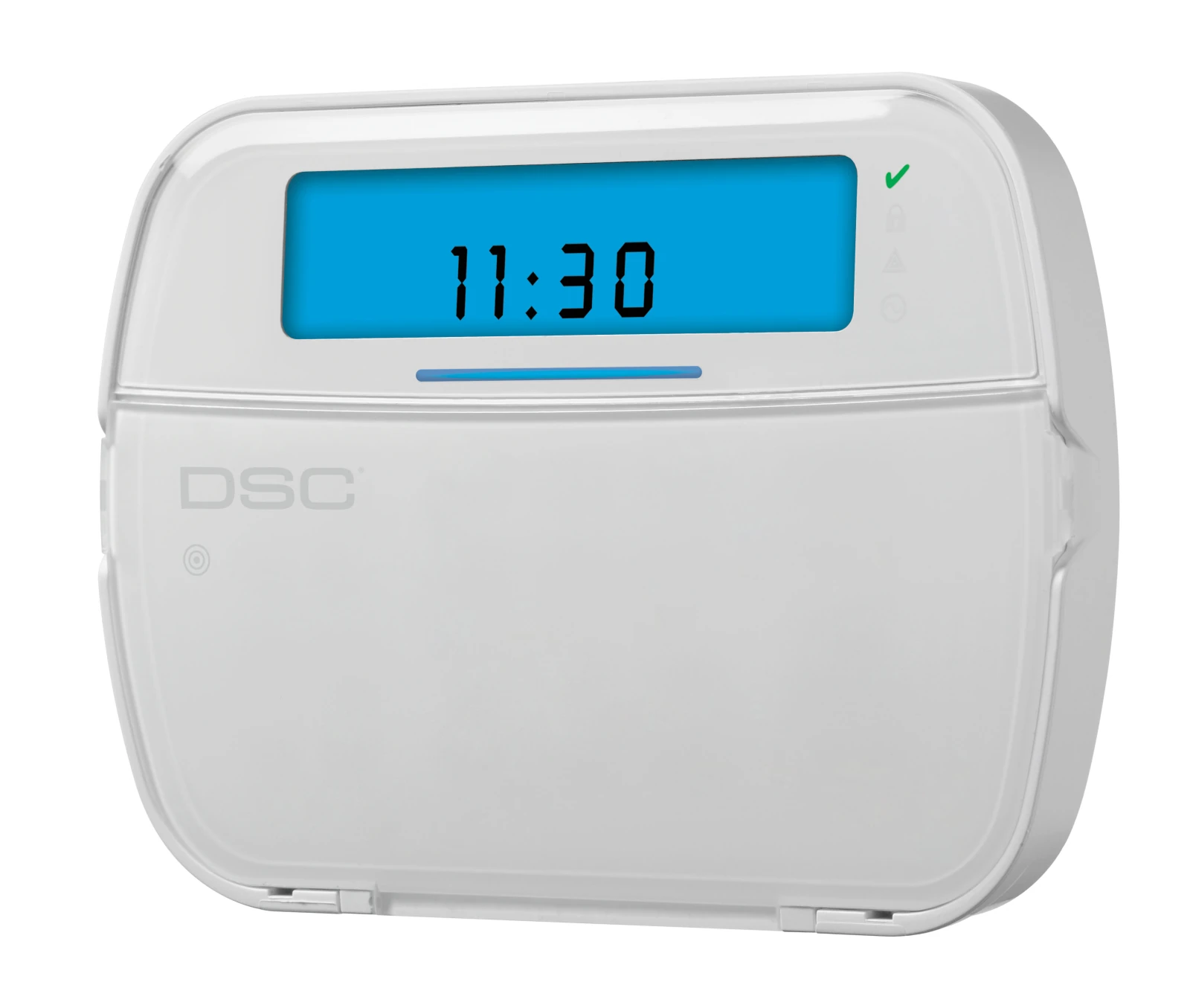

DSC HS2ICNP Icon Keypad with Proximity
$122.85
Compatible with PowerSeries Neo HS2016, PowerSeries Neo HS2032, PowerSeries Neo HS2064, PowerSeries Neo HS2128 Control Panels
Give approved users a simpler way to operate PowerSeries Neo with a hardwired Icon keypad that supports proximity tags, codes, programmable keys, and emergency controls.
- Tap a Proximity Tag to Arm or Disarm
- Easy Icon Display for Everyday Status
- Programmable Shortcuts Save Button Presses
- Low-Temperature Warning Built In
- Made for PowerSeries Neo Systems up to 128 Zones
Description
The DSC HS2ICNP pairs the quick-read Icon interface with an MPT mini proximity reader. An enrolled tag can give an authorized user a convenient alternative to typing a code, while the covered numeric keypad remains available for full manual operation and user-specific commands.
This is a practical choice near a household’s primary door, a small office entry, or another location where the same approved users arm and disarm the system every day. Five programmable keys, dedicated emergency controls, an adjustable buzzer, and the configurable I/O terminal keep the compact keypad useful beyond basic status display.
Each proximity tag should be enrolled to the person allowed to use it.
Key Features
- Integrated MPT mini proximity-tag reader
- Code or tag-based arming and disarming
- Blue Icon LCD status display
- Five programmable function keys
- Fire, medical, and panic controls
- Configurable I/O terminal
- Adjustable backlight and keypad buzzer
- Integrated low-temperature sensor
- Dual tamper protection
- Four-wire Corbus connection
Full Specifications
- Compatible Panels:
- PowerSeries Neo HS2016, PowerSeries Neo HS2032, PowerSeries Neo HS2064, PowerSeries Neo HS2128
- Connection Type:
- Wired
- Wired Connection Type:
- Corbus
- Maximum Compatible Keypads:
- 16
- Maximum Total Zones:
- 128
- Display Type:
- Icon LCD
- Keypad Features:
- Arm/Disarm Controls, Audible Chimes and Alerts, Emergency Keys, Input/Output Terminal, Low-Temperature Sensor, Programmable Function Keys, Proximity Reader, Status LEDs, Tamper Protection
- Keypad Interface:
- Physical Buttons
- Keypad Orientation:
- Landscape
- Power Input:
- 12V DC
- Powered by:
- DC
- Mounting Type:
- Wall Mount
- Recommended Application:
- Commercial, Light Commercial, Residential
- Product Color:
- White
- Weight:
- 0.57 lbs
- Dimensions:
- 6.61 × 4.80 × 0.79 in
The HS2ICNP does not include a PowerG transceiver, so the connected Neo panel must obtain wireless device support elsewhere if PowerG sensors are part of the system.
